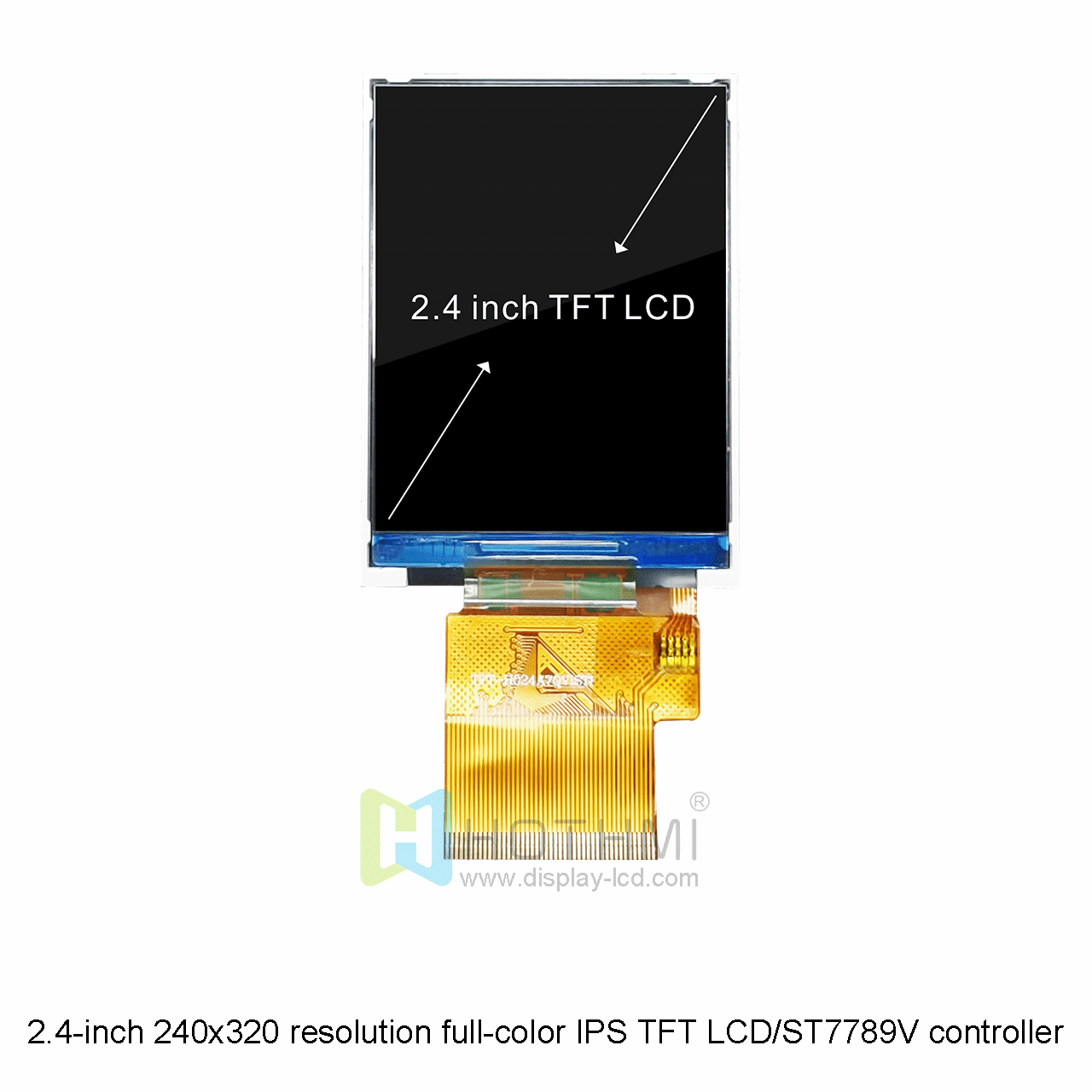

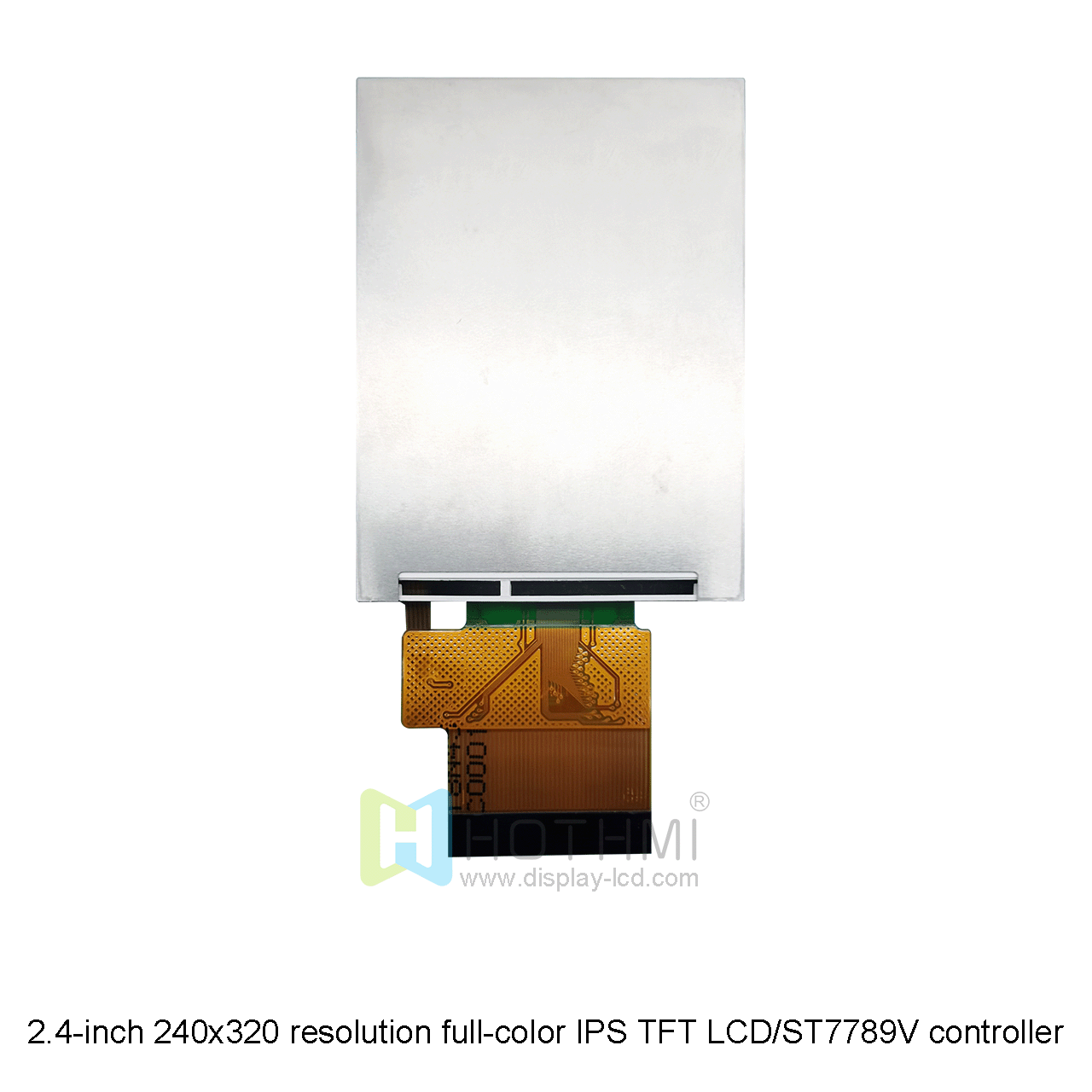

2.4-inch 240x320 resolution full-color TFT LCD/IPS full-viewing angle high brightness display/ST7789V controller

2.4-inch 240x320 resolution full-color TFT LCD/IPS full-viewing angle high brightness display/ST7789V controller

▶ Model: TFT-H024A7QVIST8N45

▶ Type: TFT display
▶ Display pixels: 240x320
▶ Dimensions (mm): 42.52x59.86x2.2
▶ Display inches: 2.4"
▶ AA size (mm): 36.72x48.96
▶ Application: Handheld devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 800cd/m2
▶ Pin: FPC-45 pin
▶ Interface mode: SPI, RGB, MCU are fully compatible, free to choose
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 2.8V
▶ Driver IC :ST7789V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

2.4-inch 240x320 resolution full-color TFT LCD/IPS full-viewing angle high brightness display/ST7789V controller
This standard 2.4-inch 240x320 resolution full-color TFT LCD/IPS full-viewing angle high brightness display/ST7789V controller TFT-H024A7QVIST8N45 has a 240x320 pixel resolution, full-viewing angle display, and a standard brightness LED backlight of 800 nits. This transmissive LCD is compact and uses a 2.8 low-voltage power supply, making this display ideal for handheld devices,
This TFT LCD display uses a 45-pin FPC connection, providing a safe and reliable electrical connection, allowing you to focus on your project because you know your display will perform at its best. This TFT LCD display is powered by the ST7789V controller, which provides excellent performance and reliability. Popular industries include the Internet of Things, industrial automation, consumer electronics, test and measurement instruments, and handheld devices. They are also great for DIY or prototyping projects due to their compatibility with Arduino. It enables fast and efficient communication between Arduino and the display, ensuring smooth data transfer and real-time updates. The interface provides flexibility and compatibility with a wide range of Arduino models. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

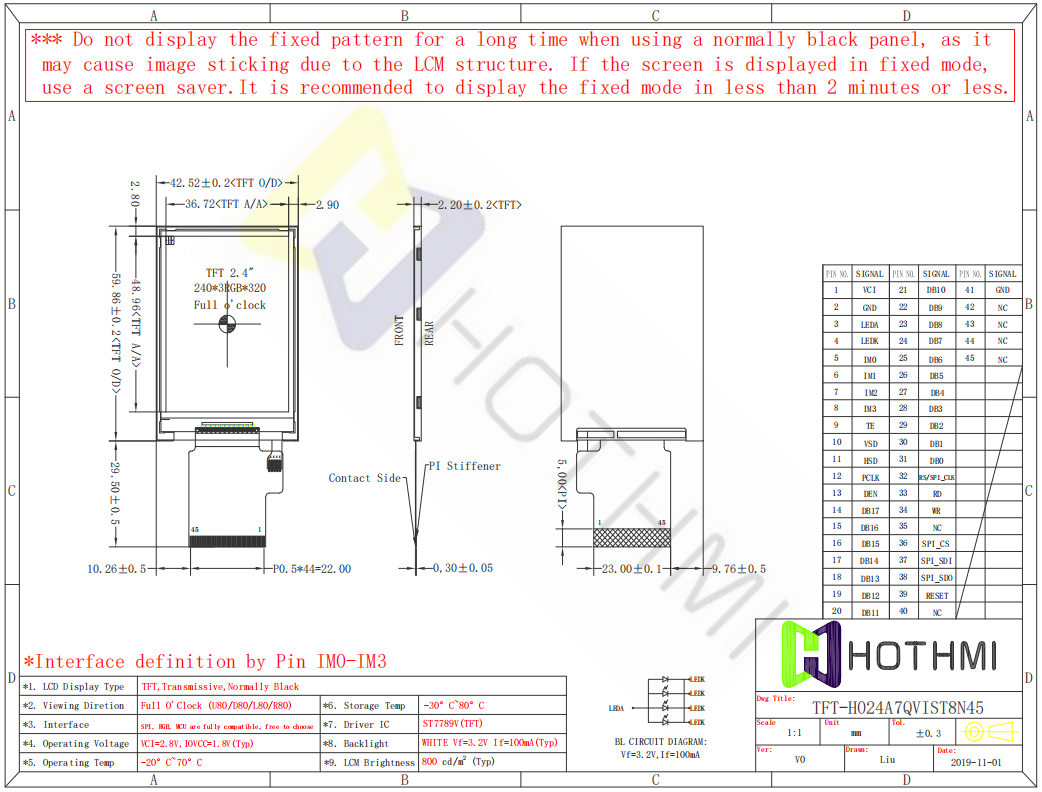

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024A7QVIST8N45
Diagonal size	2.4”	Inch
Resolution	240x320	Dot
Dimensions	42.52x59.86x2.2	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	IPS
Aspect ratio	1:1.1
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	400	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
