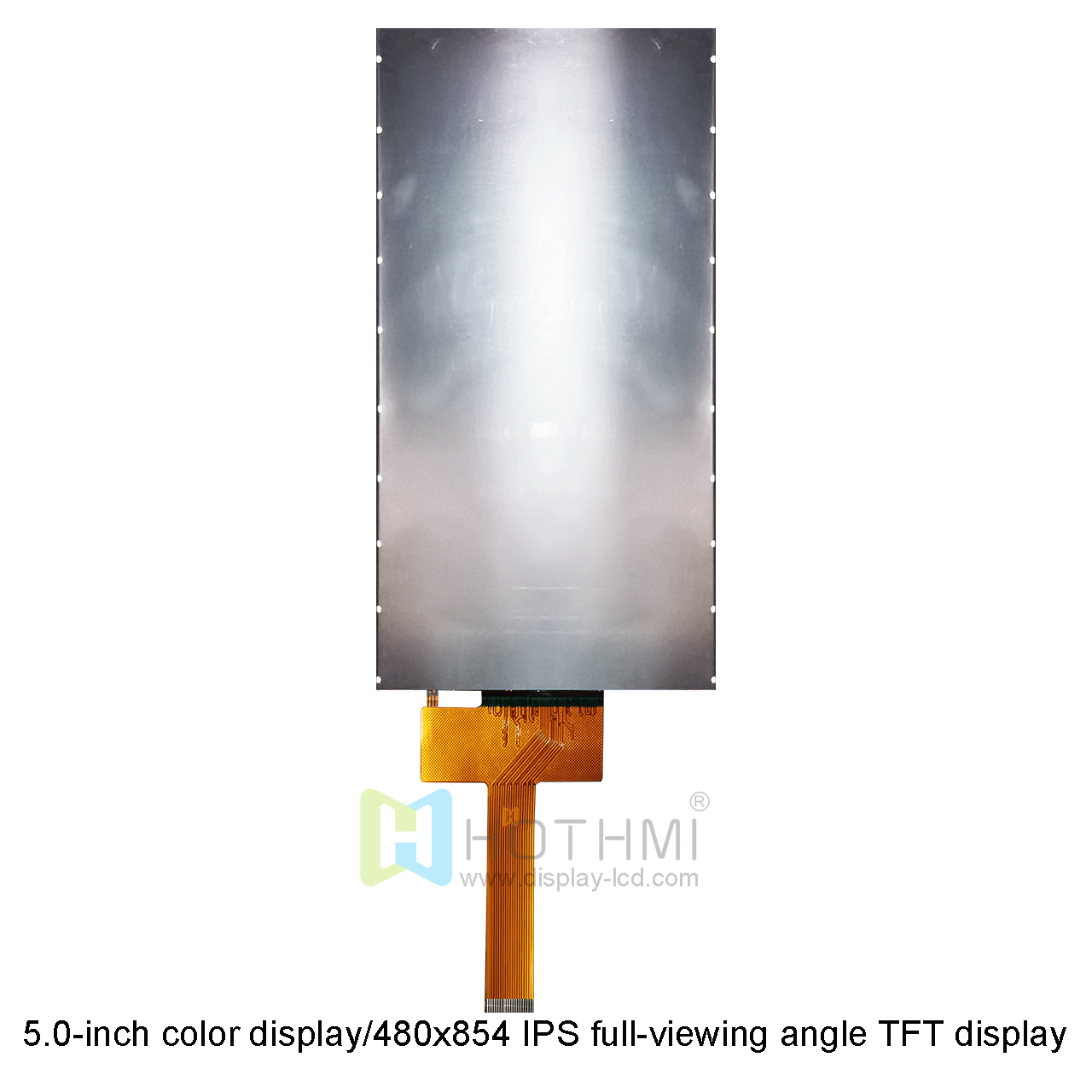

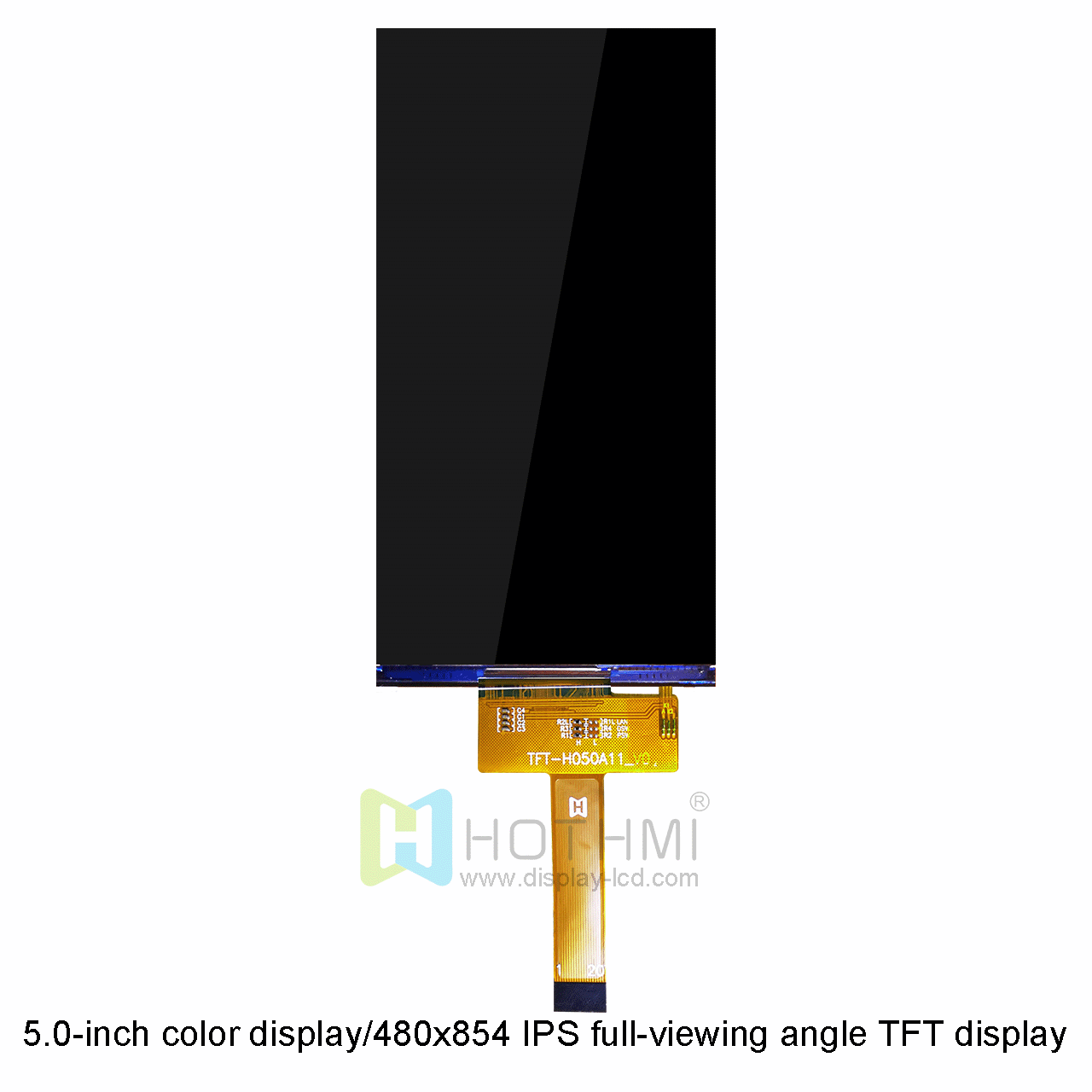

5.0-inch color display/480x854 IPS full-viewing angle TFT display/MIPI interface/ST7701S controller/Android/RK motherboard

5.0-inch color display/480x854 IPS full-viewing angle TFT display/MIPI interface/ST7701S controller/Android/RK motherboard

▶ Model: TFT-H050A11FWIST5N20

▶ Type: TFT standard display
▶ Display pixels: 480x854
▶ Display inches: 64.76x118.70x2.0
▶ AA size (mm): 61.632x109.654
▶ Application: Instrumentation, portable electronic devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 550cd/m2
▶ Pin: FPC-20 pin
▶ Interface: MIPI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

5.0-inch color display/480x854 IPS full-viewing angle TFT display/MIPI interface/ST7701S controller/Android/RK motherboard
This standard 5.0 display TFT-H050A11FWIST5N20 has a resolution of 480x854 pixels, IPS full-viewing angle, and excellent viewing effect no matter which direction you watch from, with a brightness of 550cd/m2. The compact size, 3.3V low-voltage power supply, and impressive display quality make this display an excellent choice for projects without touch function.

This 5.0-inch LCD display uses a 20PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7701S controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include the Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with Android/RK motherboards, they are also very suitable for DIY or prototype projects. The LVDS interface enables fast and efficient communication between Linux/industrial control motherboards/RK series, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

Datasheet for Touch Panel,Controller

Name	Date	Size
TFT-H050A11FWIST5N20	January 01, 1970	341.83KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H050A11FWIST5N20
Diagonal size	5.0”	Inch
Resolution	480x854	Dot
Dimensions	64.76x118.70x2.0	mm
Active area (AA)	61.632x109.654	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	1:2
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	550	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
