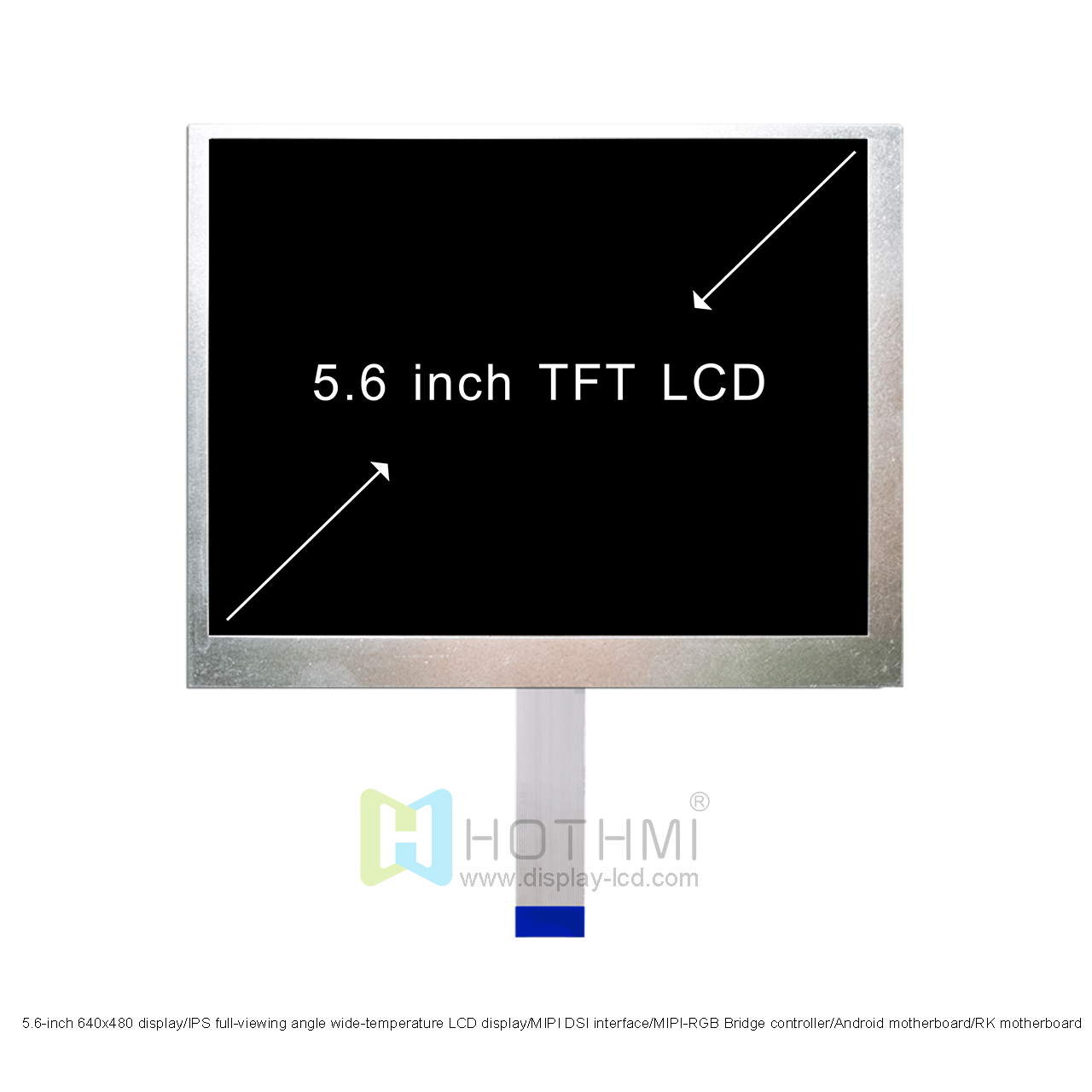

5.6-inch 640x480 display/IPS full-viewing angle wide-temperature LCD display/MIPI DSI interface/MIPI-RGB Bridge controller/Android motherboard/RK motherboard

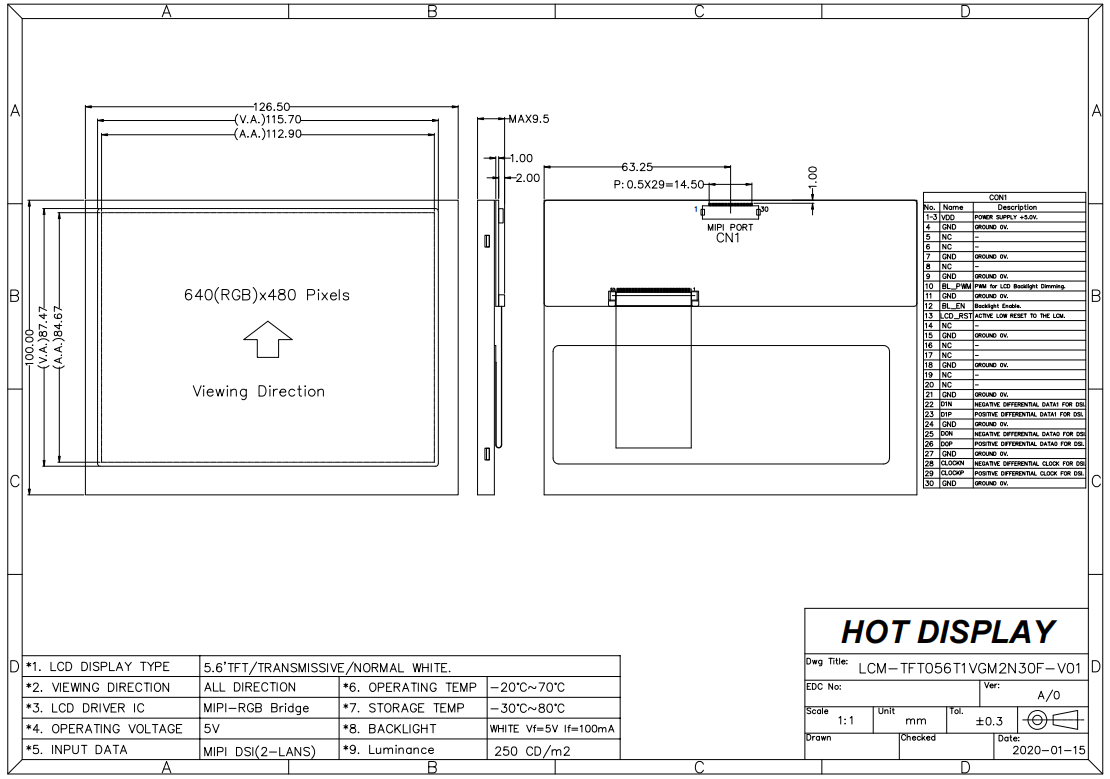

This standard 5.6 display LCM-TFT056T1VGM2N30F-V01 has a resolution of 640x480 pixels, IPS full-viewing angle, and excellent viewing effect no matter which direction you watch from, with a brightness of 250cd/m2. The compact size, 3.3V low-voltage power supply, and impressive display quality of this display make it an excellent choice for projects without touch function.

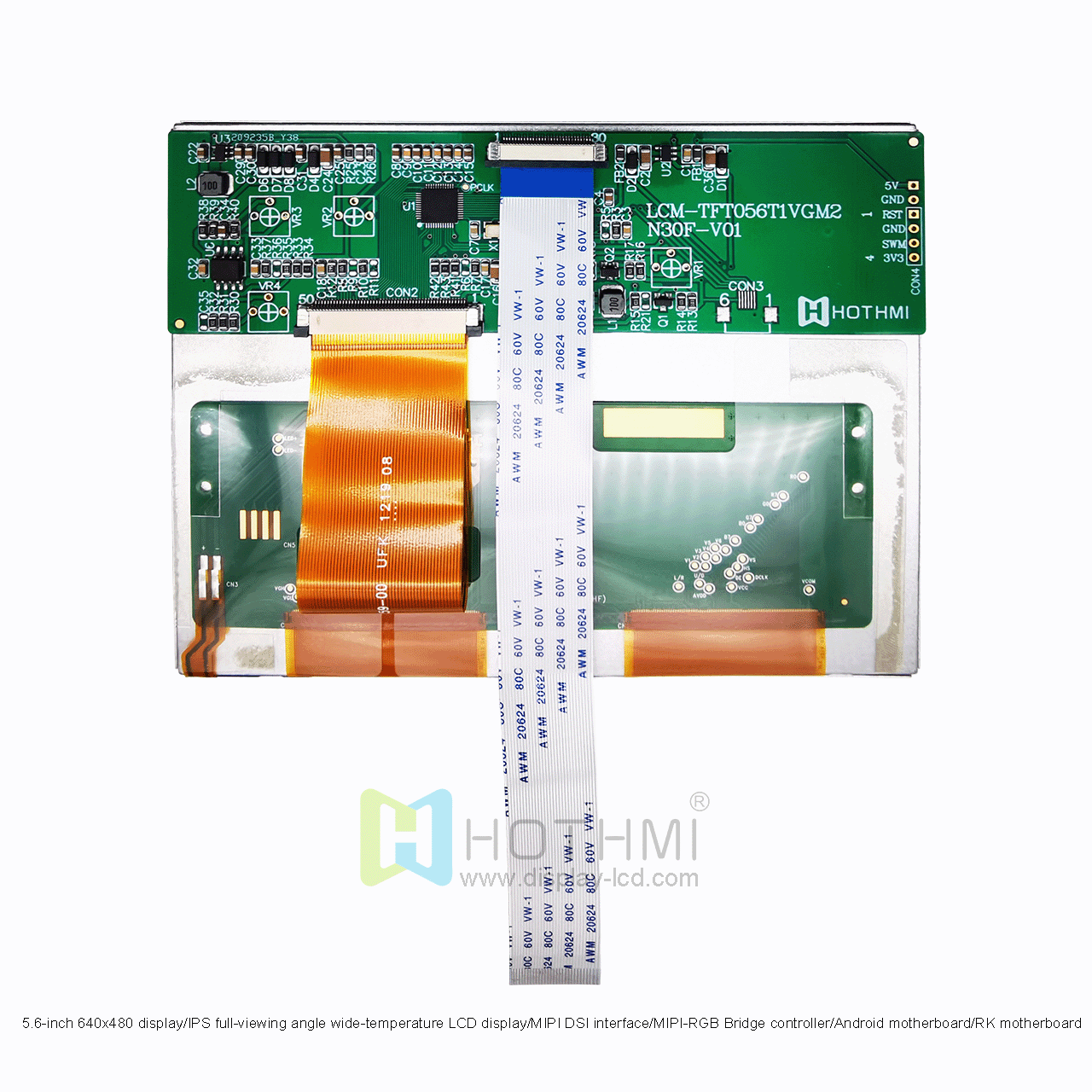

This 5.6-inch LCD display uses a 30PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by a MIPI-RGB Bridge controller. The controller optimizes the functions of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include the Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with Android boards/RK boards, they are also perfect for DIY or prototype projects. The MIPI interface enables fast and efficient communication between Android boards/RKs, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
