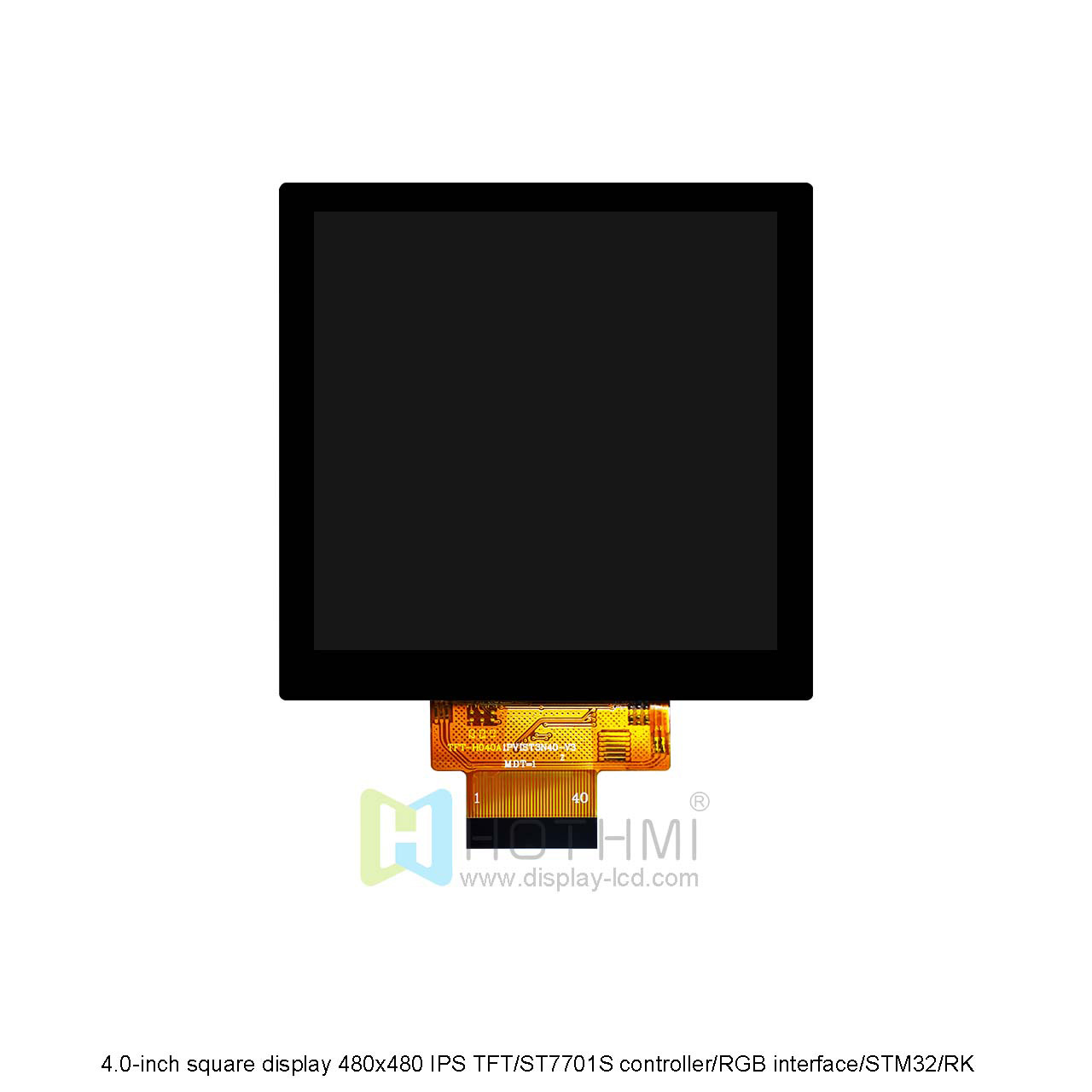

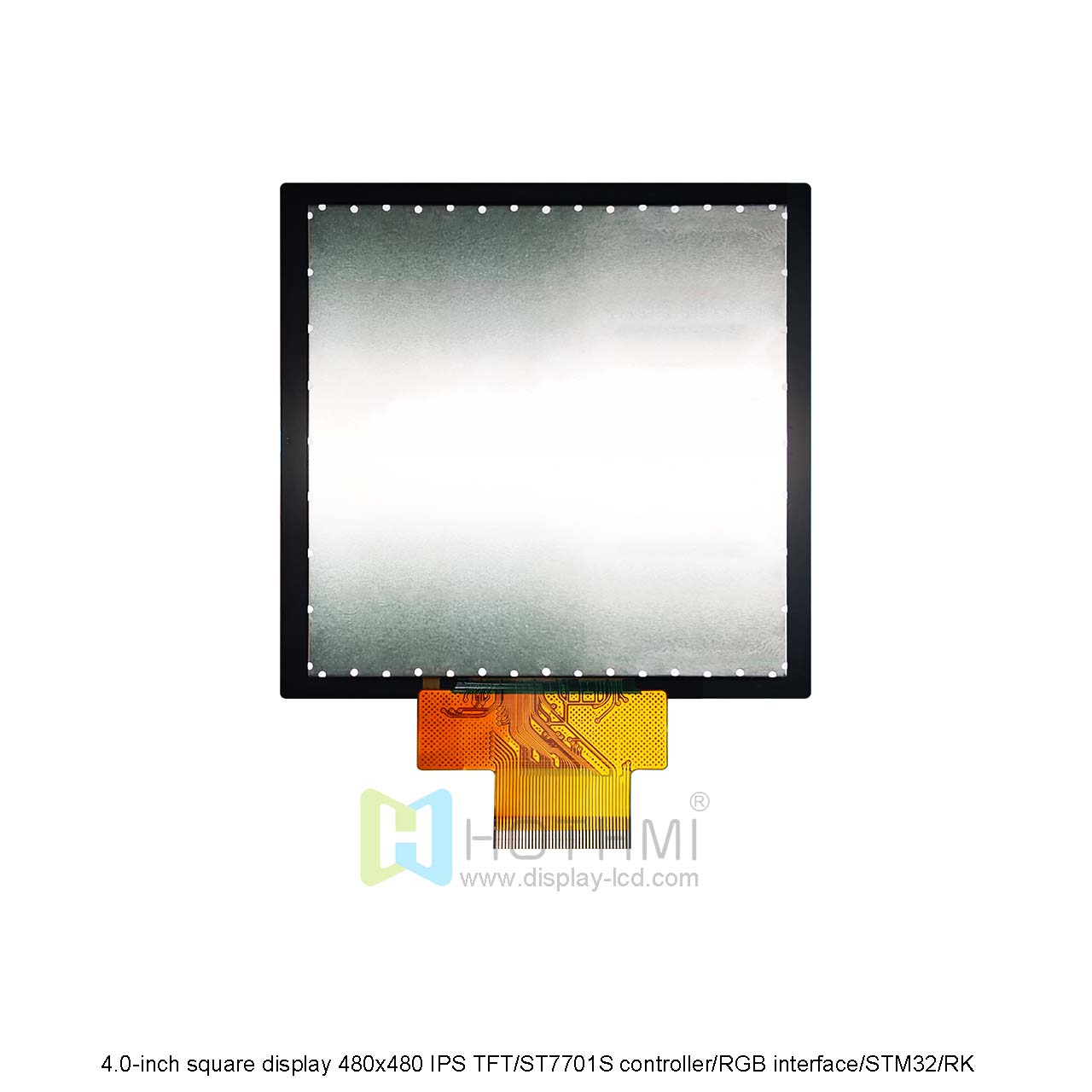

4.0-inch square display 480x480 IPS TFT/ST7701S controller/RGB interface/STM32/RK
This standard 4.0-inch TFT LCD display TFT-H040A1PVIST3G40 has a resolution of 480x480 pixels, IPS full viewing angle, and high-quality effects regardless of viewing direction. The standard brightness LED backlight brightness is 350 nits. The compact size, 3.3V low voltage power supply and impressive display quality of this display make it an excellent choice for projects that require portrait mode visual output and no touch function.
This 4.0-inch LCD display uses a 40PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7701S controller. It can provide excellent performance and reliability. The controller optimizes the functions of the display to ensure smooth operation and accurate presentation of images and graphics. This style comes with a highly transparent cover, and we also have a version with capacitors. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with STM32/RK, they are also ideal for DIY or prototype projects. The RGB interface enables fast and efficient communication between STM32/RK displays, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
