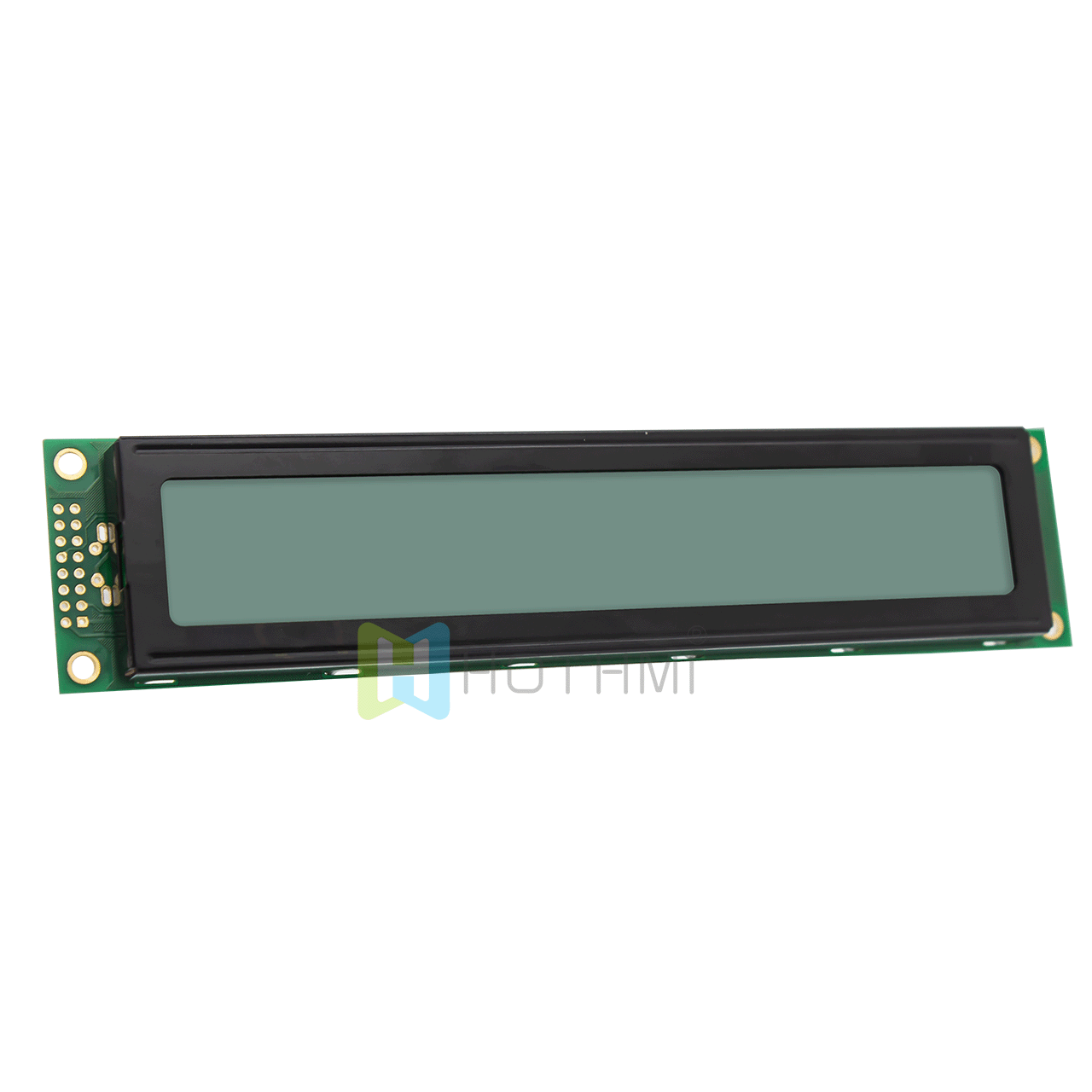

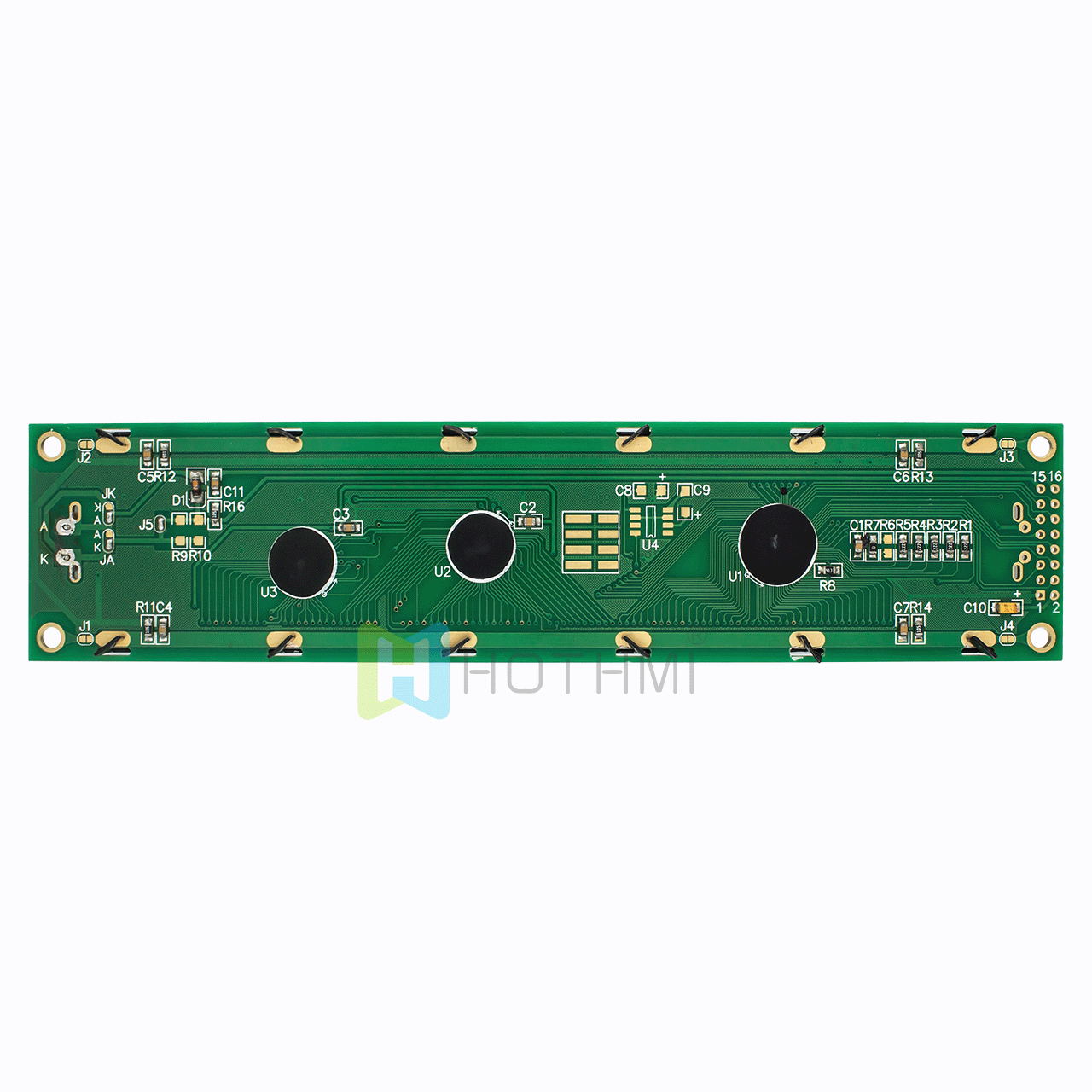

▶ Model: HTM-2002B-11W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 20x2 characters

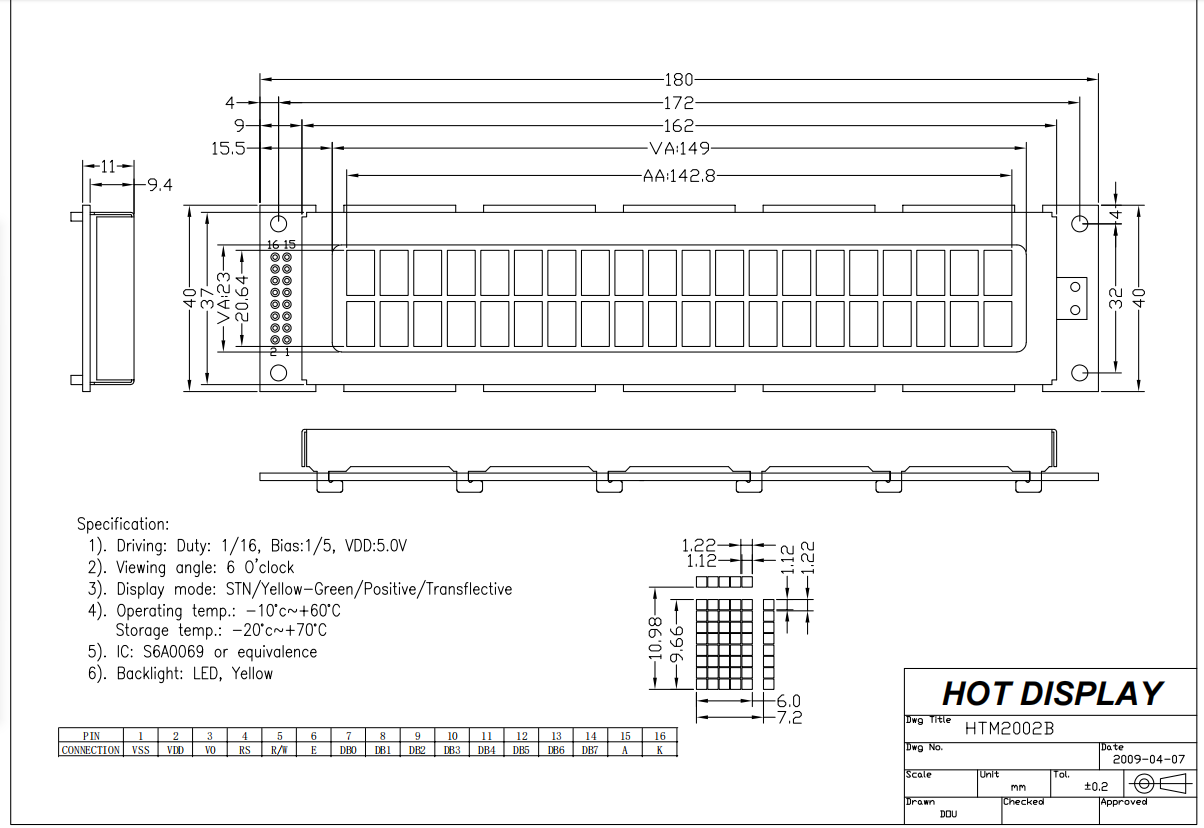

▶ Overall dimensions (mm): 180.0x40.0x11.0
▶ VA size (mm): 149.0x23.0
▶ AA size (mm): 142.8x20.64
▶ Point spacing mm: 1.22x1.22
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white backlight
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U
