3.8 inch 320X240 Graphic LCD Module | STN+Yellow-Green | Yellow-Green Backlight

3.8 inch 320X240 Graphic LCD Module | STN+Yellow-Green | Yellow-Green Backlight | MCU |RA8835/RA8806 |Arduino

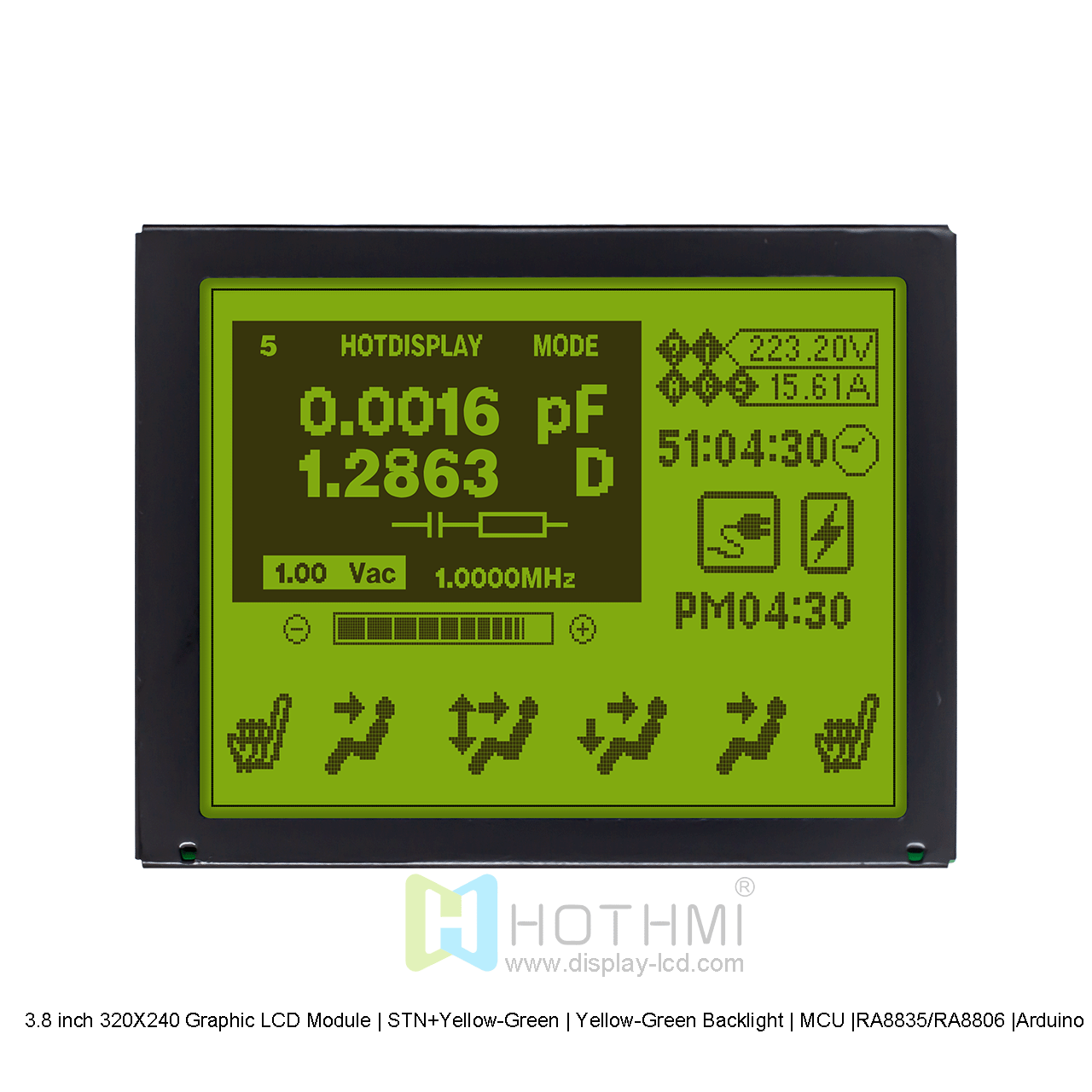

▶ Model: HTM320240F-01Y-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 320x240

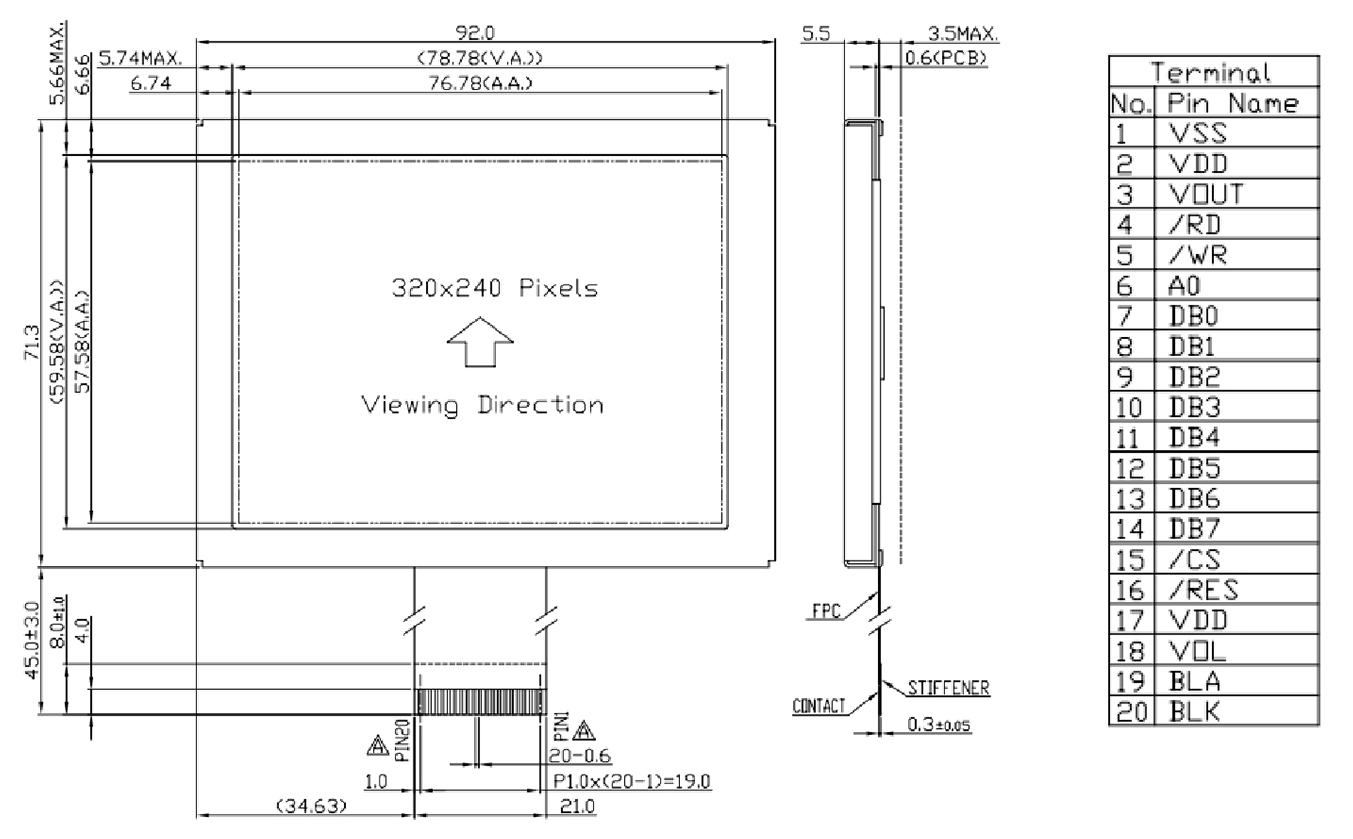

▶ Overall dimensions (mm): 92.0x71.3x9.0
▶ VA size (mm): 78.78x59.68
▶ AA size (mm): 76.78x57.58
▶ Point spacing (mm): 0.24x0.22
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: FFC-20PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V

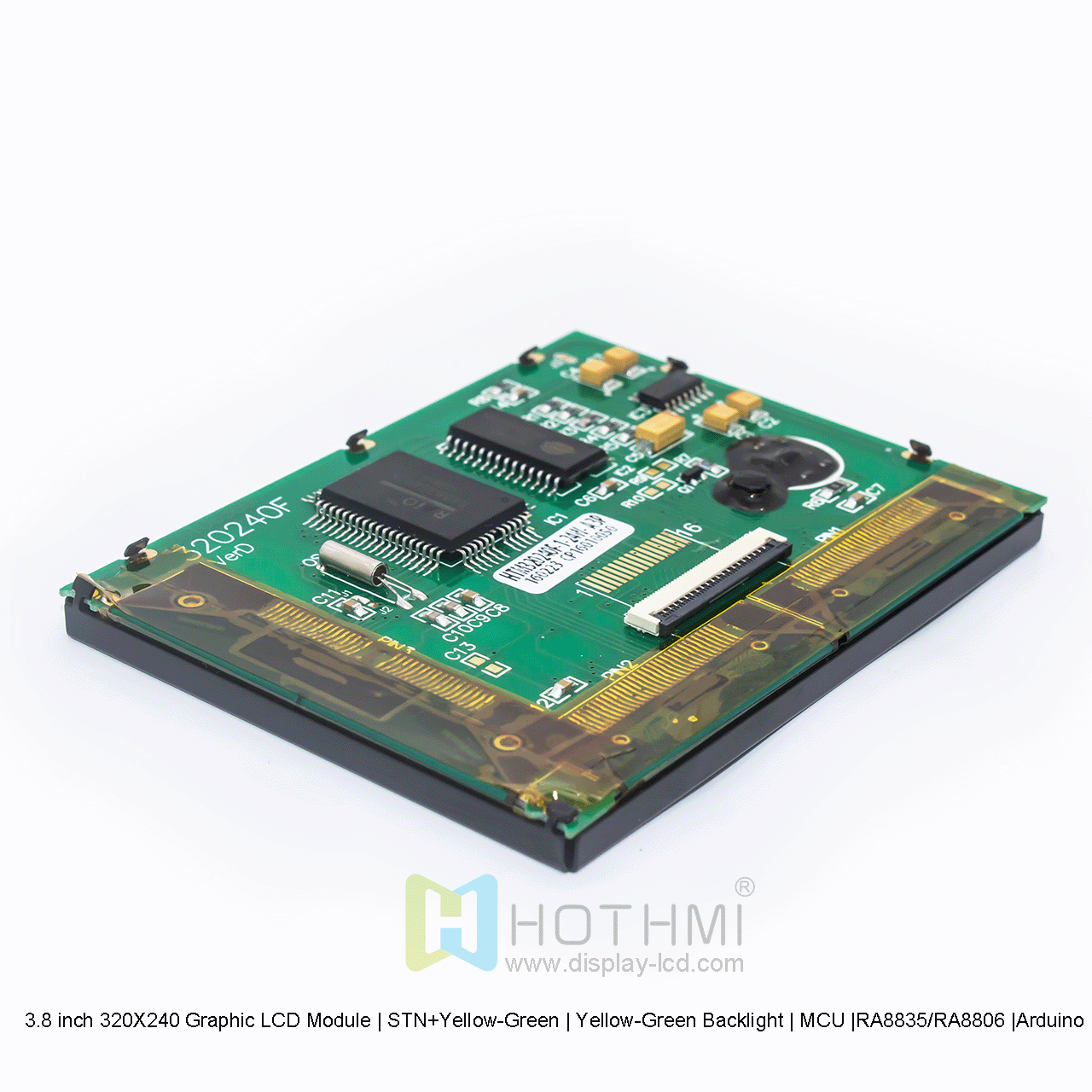

▶ Driver chip: RA8835/RA8806

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

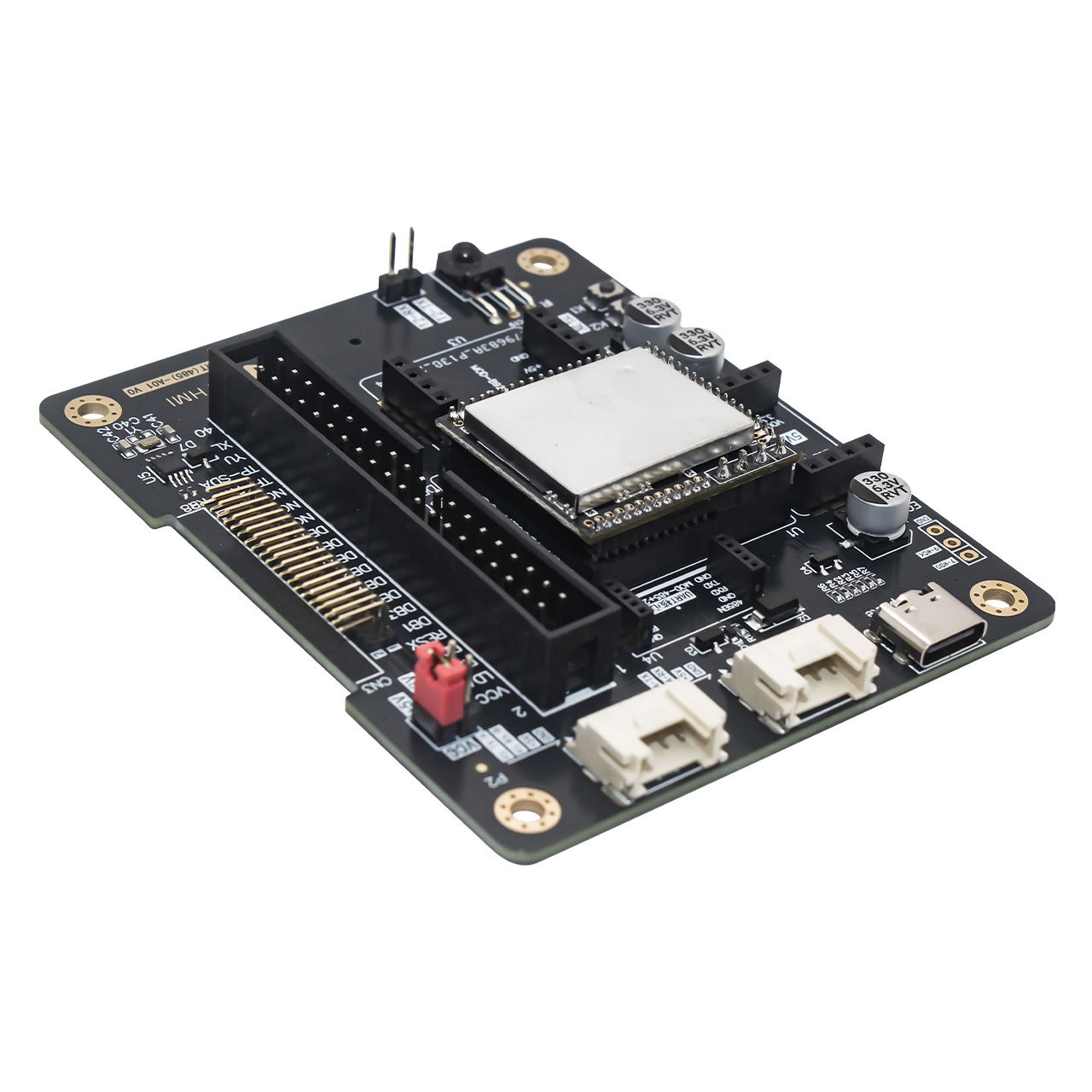

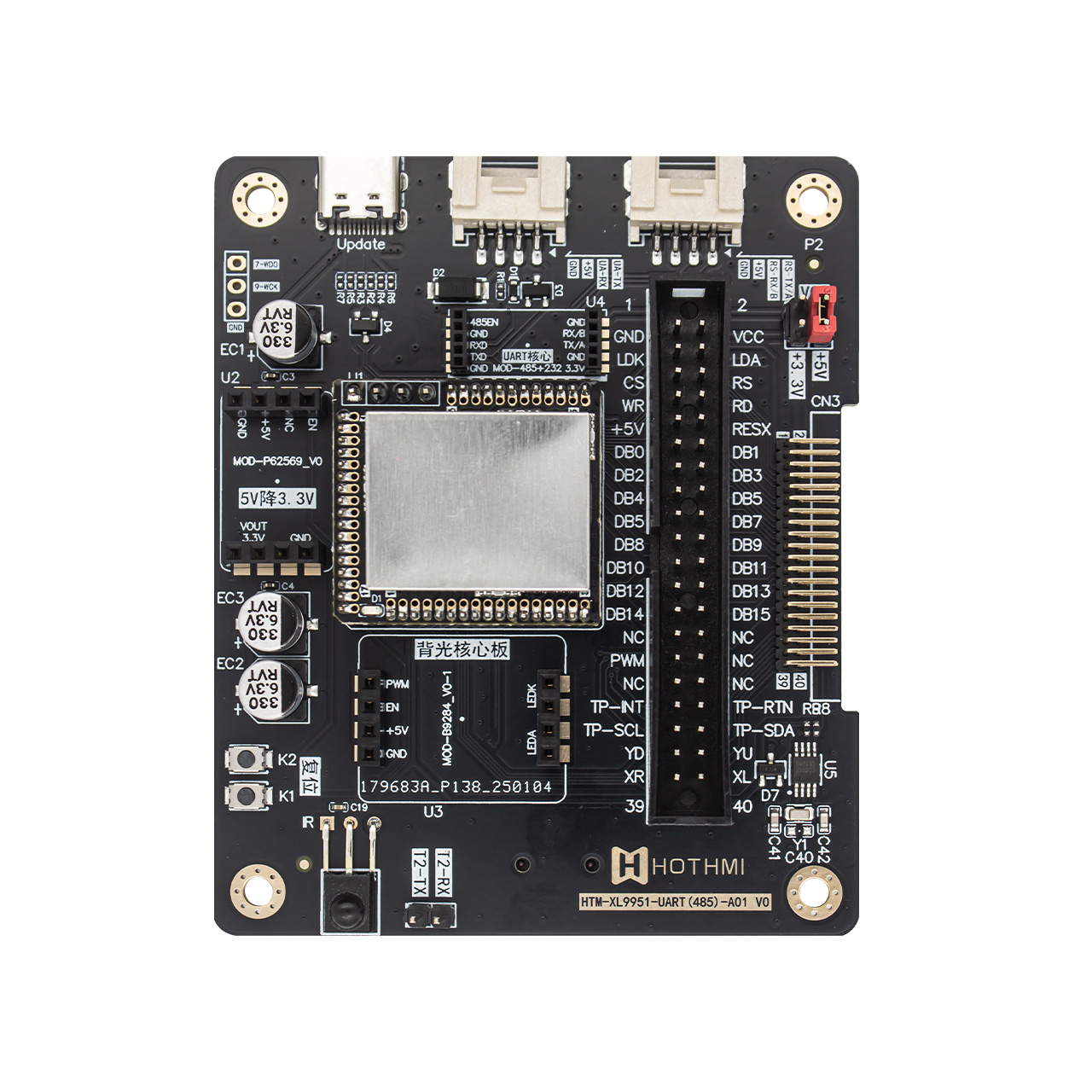

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
