7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller

▶ Model: TFT-H070A21ZBINV6N40

▶ Type: TFT LCD display
▶ Display content: 280x1424
▶ Display inches: 7.0"
▶ Dimensions (mm): 182.47x38.2x3.45
▶ AA size (mm): 170.88x33.6
▶ Product application: coffee machine, small household appliances
▶ Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: white backlight 650cd/M2
▶ Connection method PIN number: FPC-40 pin
▶ Interface method: MIPI 4L
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7703

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board

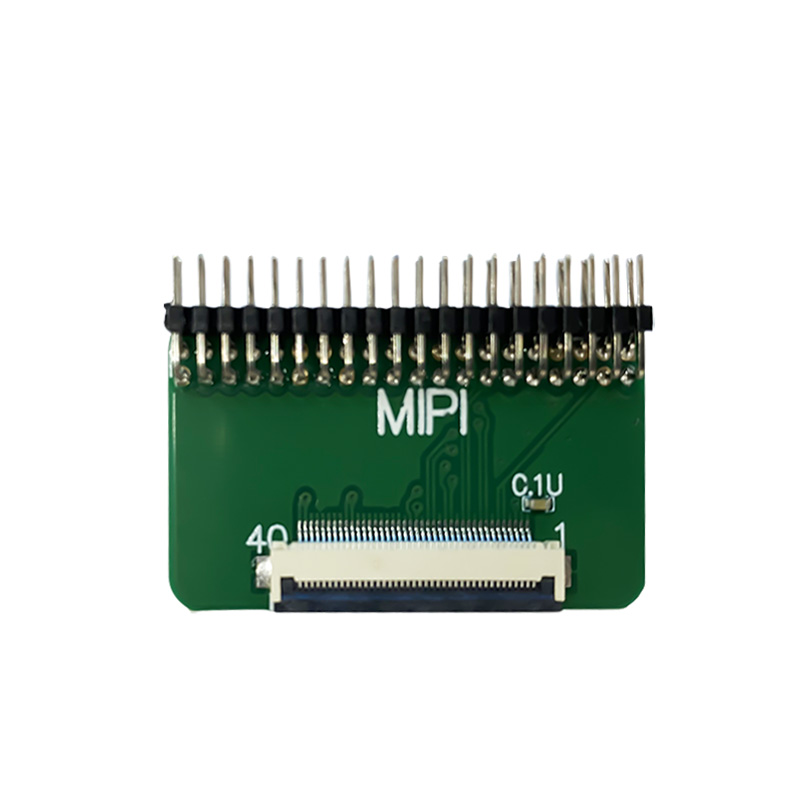

TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller
7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller The TFT-H070A21ZBINV6N40 is a 7.0 inch IPS TFT display with a resolution of 280x1424 pixels. The display has a high contrast ratio of 500:1, capable of deep blacks and vivid colors. It also has a brightness of up to 650cd/m2, making it suitable for use in both indoor and outdoor environments.
The TFT-H070A21ZBINV6N40 is equipped with optional resistive or capacitive touch screen capabilities, allowing users to interact with the display through touch. In addition, it is equipped with an optional FPC Zif connector for easy connection to other devices. It is also compatible with 8051 boards (a popular microcontroller board often used in embedded systems) and arduino shields with examples and libraries.
Overall, the 7.0-inch IPS TFT LCD display/280x424 resolution color display/with ST7703 controller is a versatile, high-performance display suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H070A21ZBINV6N40
Diagonal size	10.1”	Inch
Resolution	280X1424	Dot
Dimensions	182.47x38.2x3.45	mm
Active area (AA)	170.88x33.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	5:1
Backlight type	LED white
TFT driver IC	ST7703
Brightness	650cd/m2	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-40~80℃	℃
