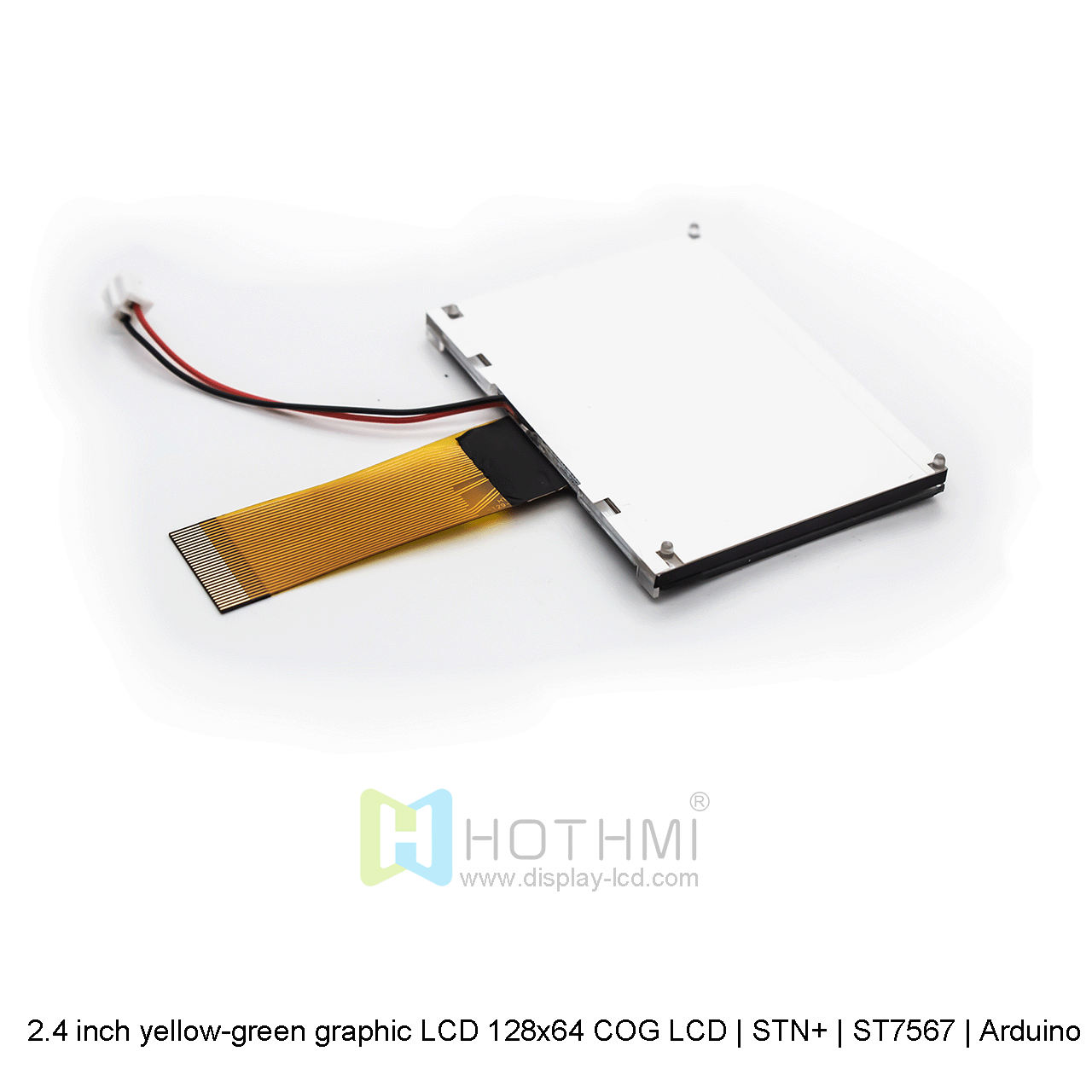

2.4" Graphic LCD Yellow Green COG | 128x64 Graphic LCD | STN+ | Yellow Green Graphic Display | ST7567

2.4" Graphic LCD Yellow Green COG | 128x64 Graphic LCD | STN+ | Yellow Green Graphic Display | ST7567 | Arduino

▶ Model: HTG12864-129-11Y-30C05

▶ Type: COG graphic module
▶ Display pixels: 128x64
▶ Dimensions (mm): 57.5*41.7*4.3
▶ VA size (mm): 54.0*31.0
▶ AA size (mm): 47.33*26.21
▶ Pixel pitch (mm): 0.41*0.37
▶ Application: Instruments
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: FPC-30PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567
