Automotive display and touch customization expert

Drivers all hope that car displays can be operated intuitively, provide fast feedback, display clear and rich content, and be interconnected with mobile devices. However, in order to meet these requirements and meet the strict automotive environmental requirements at the same time, this requires the integration of various technologies. In this manufacturing process, the designers and technical engineers of Hot Display Technology's display screens need to integrate the display Factors such as the screen's working temperature, earthquake resistance, waterproofing ability, whether customized touch functions are needed, etc. are comprehensively considered to provide different solutions for cars in different application scenarios.

Hot Display  is a company with a long history and strong R&D capabilities. Since 2004, it has focused on providing excellent development of display products, customized design services and solutions for various industries, adhering to more than 20 years of rich design and manufacturing experience and strong quality control capabilities.

Hot Display ‘s   design and adjustment functions allow customers to create product designs with specific functional applications. In addition, Xinhongtai can independently complete the adjustment of touch controllers (many peers outsource this business to controller manufacturers). Our touch solutions include:

· Waterproof and seawater (salt water) resistance

· Proximity sensing and support for gesture sensing

· Noise immunity

· and more

Automotive grade display solutions include the following:

Infotainment screens, instrument panels, rearview mirrors and rearview mirror displays and icons on both sides, heating and cooling air conditioning controls, capacitive switches (thin film transistor TFT), remote control keys, agricultural vehicles, engineering vehicles, flight controls

Diverse technology portfolio:

• Automotive touch display using capacitive sensor or resistive touch panel

• Automotive LCD display: TN, STN, FSTN, VN and other LCD displays

• Thin film transistor TFT liquid crystal display

• Segmented LCD display

• Customized functional film

• Customized cover

• Optical processing integrates touch, display and cover/cover glass components

Product catalog suitable for automotive displays:

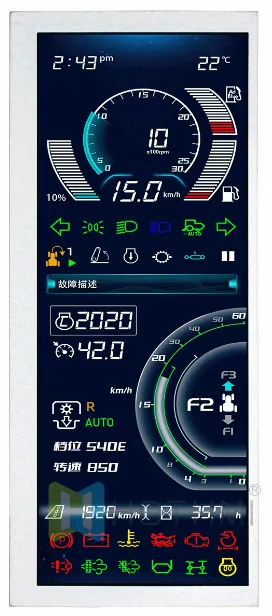

10.3-inch TFT LCD screen IPS LCD screen MIPI interface/1440x540

Dot matrix color screen module NV3051F/optional touch screen

▶Model: TFT-H103W01ZMINV5N30

▶ Type: TFT bar screen

▶ Display pixels: 1440x540 Px

▶ Overall dimensions (mm): 265.2×109.8×5.0

▶ Display inches: 10.3"

▶ Effective size (mm): 243.65×91.37

▶ Application: Android/RK column

▶Viewing angle: IPS (U89/D89/L89/R89)

▶Brightness: 450cd/m2

▶ Pin: FPC-30PIN

▶ Interface: MIPI

▶ Special reminder: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶Power supply voltage: 3.3V

▶ Driver chip: ST7701S

▶ Read more

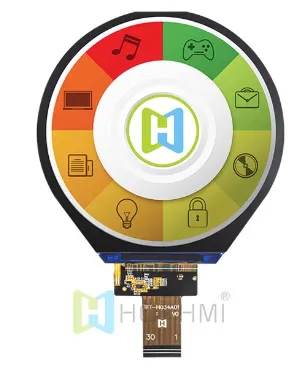

3.4-inch MIPI DSI circular TFT LCD display, 800 × 800 pixels, IPS

▶Model: TFT-H034A01ZJINV5N30

▶ Type: TFT round

▶ Display pixels: 800x800 Px

▶ Overall dimensions (Mm): 94.9x96.95x2.2

▶ Display inches: 3.4"

▶ Effective size (Mm): 88.4x88.4

▶ Application: smart home appliances, industrial robots

▶Viewing angle: IPS full viewing angle

▶Brightness: 550cd/M2

▶ Pin: FPC-30PIN

▶ Interface: MIPI

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -30~80℃

▶Power supply voltage: 3.3V

▶ Driver chip: NV3051F

▶ Read more

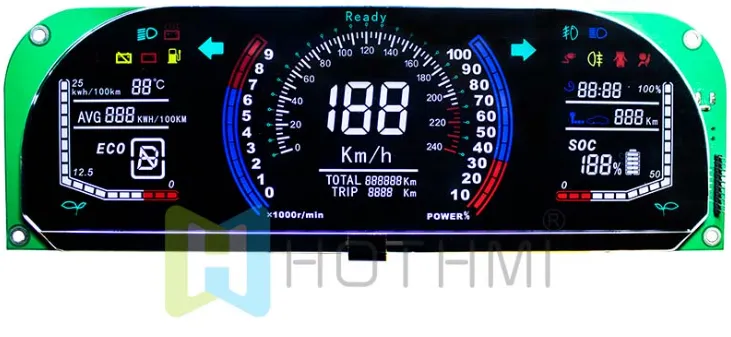

12-inch full LCD display for new energy vehicle instrument panel

▶Model: HTM68448

▶ Type: COG

▶Display pixels: segment code

▶ Overall dimensions (mm): 306x102.5

▶Application: car dashboard

▶Viewing angle: 12H

▶ Pin: FPC

▶Interface mode: SPI

▶ Working temperature: -40~80℃

▶Power supply voltage: 5.0V

▶ Read more

Questions from customers:

Question 1: If the monitor needs to be installed at the air outlet in the car, how can it deal with the water droplets generated by the air conditioner? How to solve this problem?

Answer: The display itself is waterproof. To prevent water droplets from affecting the work of the display, the waterproof function of the cable should be considered. Customers are required to ensure that the cable and other contact interfaces are properly connected when connecting the display to the control panel. Take waterproofing measures everywhere, such as silicone waterproofing method, etc.

Question 2: How to eliminate static electricity on car display screens?

Answer: Every Hot Diaplay product will be tested for static electricity when it leaves the factory, to avoid the display being “charged” before leaving the warehouse to the greatest extent!

Question 3: Is it better to attach the touch panel of the car display to the frame or to fully attach it?

Answer: It is better if the car display screen is fully bonded. Most touch display screens are recommended to be fully laminated. Fully laminated displays have good stability and low rework rate. Many peers outsource the laminating process to other companies. Hot Display has its own laminating process team that can independently and comprehensively complete the entire production process.。

Question 4: What testing will you do when shipping?

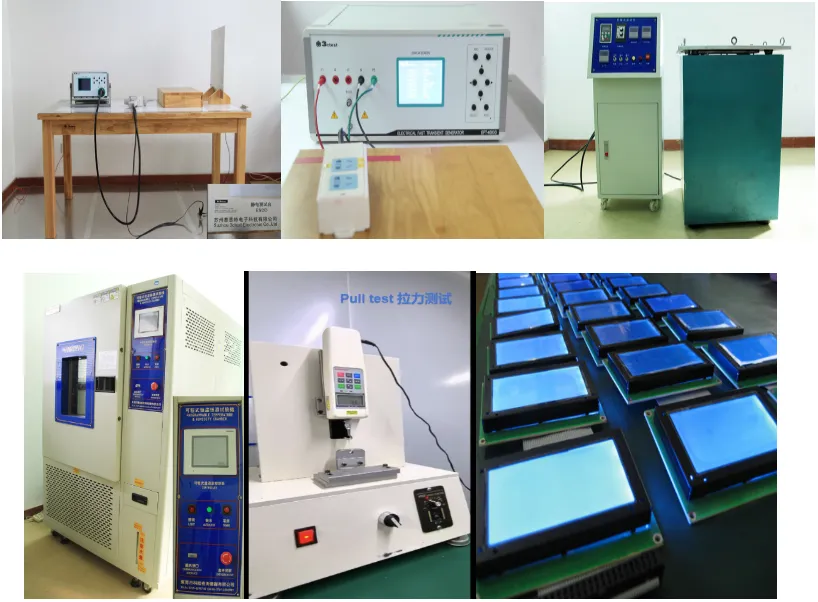

Answer: Every display screen shipped from Xinhongtai will undergo electrostatic testing (ESD), group pulse EFT testing, vibration testing, high and low temperature impact testing, product aging testing, and tensile testing. For more information, please click on the link: What testing items should be done before the display leaves the factory?

Question 5: What is the applicable temperature of the car display?

Answer: Since cars have to deal with extreme outdoor weather, Hot Display is a manufacturer specializing in industrial-grade displays. The temperature of our display screens can be customized according to customer needs. Wide-temperature types can be customized, and the maximum temperature range can reach -40 degrees Celsius. to 80 degrees Celsius. The applicable temperature inside the car is generally -10 degrees (winter) to 70 degrees Celsius (summer), so Xinhongtai's display screen can be fully adapted to various cars.

Please contact us for more information!
