Different types of display screens can have one or more suitable interfaces. Hot Display has a highly skilled engineering research team that has successfully developed different adaptation interfaces for various display screens. The following are the adaptation interfaces corresponding to different types of display screens for reference (common customizable interface displays are generally TFT color displays or modules).
TFT color display: Adapting interfaces include SPI/MCU/TTL RGB/LVDS/MIPI, etc.

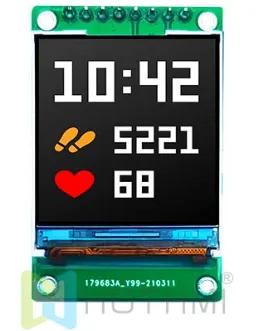

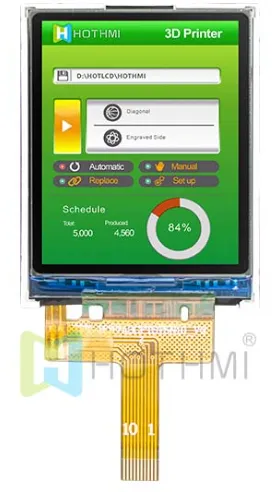

SPI interface TFT color display product examples:
▶ Model: TFT-H017A3CFTST5N10
▶ Type: TFT vertical screen
▶ Display pixels: 128x160 Px
▶ Overall dimensions (Mm): 34x43.7x2.3
▶ Display inches: 1.77"
▶Effective size (mm): 28.032x35.04
▶ Application: Handheld testing instruments
▶Viewing angle: 12H o'clock
▶ Brightness: 850cd/M²
▶ Pin: FPC-10PIN
▶Interface: SPI

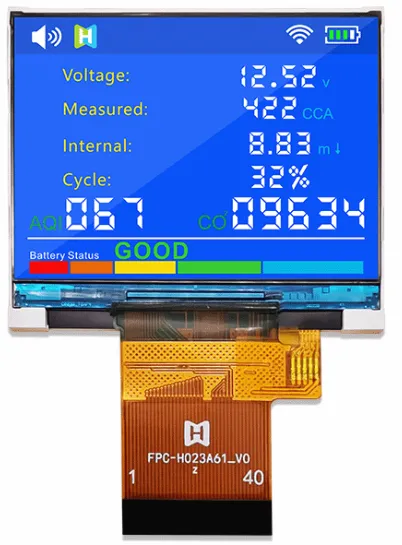

MCU interface TFT color display product examples:
▶Model: TFT-H023A61LQTIL2N40
▶ Type: TFT horizontal screen
▶ Display pixels: 320x240 Px
▶ Overall dimensions (mm): 51.00x45.80x2.50
▶Display inches: 2.3"
▶ AA size (mm): 46.75x35.06
▶ Application: C8051/Arduino/STM32
▶Viewing angle: 12H
▶Brightness: 250cd/M2
▶ Pin: FPC-40PIN
▶ Interface: MCU

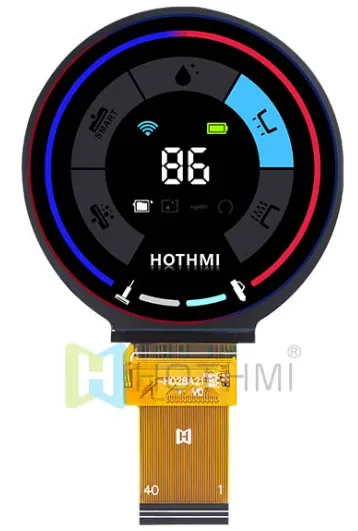

TTL RGB interface TFT color display product examples:
▶Model: TFT-H028A21ZHIST3N40
▶ Type: TFT round
▶ Display pixels: 480x480 Px
▶ Overall dimensions (Mm): 70.032x76.478x2.3
▶Display inches: 2.8"
▶ Effective size (Mm): 70.128x70.128
▶Applications: smart home appliances, sweeping robots
▶Viewing angle: IPS full viewing angle
▶Brightness: 300cd/M²
▶ Pin: FPC-40PIN
▶ Interface: RGB
Examples of LVDS interface TFT color display products:
▶Model: TFT-H101D13W XIWZKN40
▶ Type: TFT LCD color screen
▶ Display pixels: 1280x800 Px
▶ Overall dimensions (Mm): 229.46x149.1x4.7
▶ Display inches: 10.1"
▶ Effective size (Mm): 216.96x135.6
▶ Application: Industrial control equipment
▶Viewing angle: IPS full viewing angle
▶Brightness: 1000cd/M2
▶ Pin: FPC-40PIN
▶Interface: LVDS

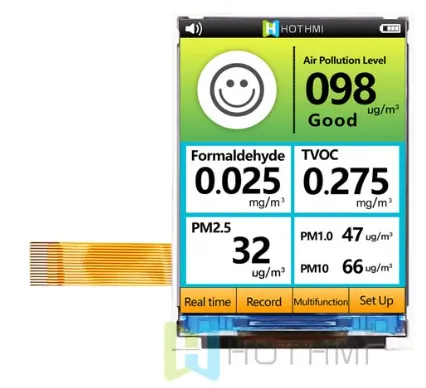

MIPI interface TFT color display product examples:
▶Model: TFT-H024B12QVIFT8N15_V0
▶ Type: TFT vertical screen
▶ Display pixels: 240x320 Px
▶ Overall dimensions (mm): 42.52x59.86x2.2
▶Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: smart home appliances
▶Viewing angle: IPS full viewing angle
▶Brightness: 800cd/M²
▶ Pin: FPC-15PIN
▶ Interface: MIPI DSI
TFT strip module:Adaptation interfaces include SPI/MCU/TTL/LVDS/UART/RS232
SPI interface TFT module product examples:
▶ Model: LCM-TFT014T1QQS4LN08D
▶ Type: TFT module
▶ Display pixels: 128x128 Px
▶ Overall dimensions (mm): 30x46.5x11.3
▶ Display inches: 1.44"
▶Effective size (mm): 25.5x26.5
▶ Application: Printer
▶Viewing angle: 12H
▶Brightness: 400cd/M²
▶ Pin: 8 PIN
▶Interface: SPI

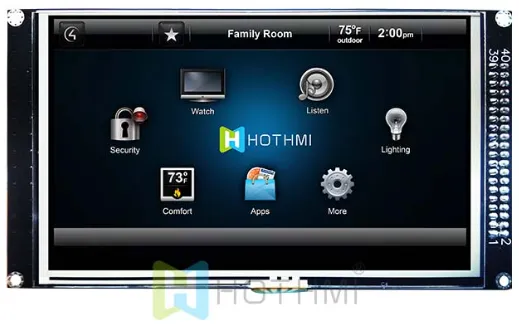

MCU interface TFT module product examples:
▶ Model: LCM-TFT050T1SVP16R40D
▶ Type: TFT module
▶ Display pixels: 800x480 Px
▶ Overall dimensions (mm): 143.5x81x8.12
▶ Display inches: 5.0"
▶ Effective size (mm): 108x64.8
▶Application: Microcontroller/Arduino
▶Viewing angle: IPS full viewing angle
▶Brightness: 450cd/M²
▶ Pin: 40 PIN
▶ Interface: MCU

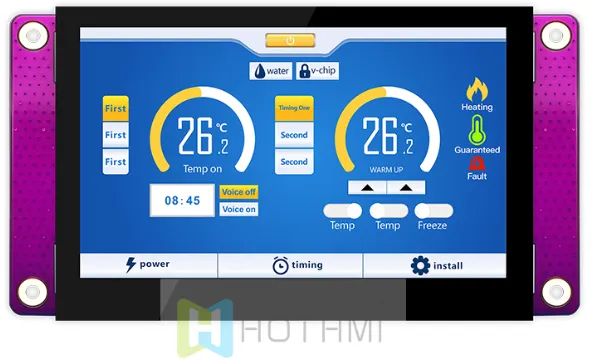

Product examples of TTL interface TFT module with board:
▶ Model: LCM-TFT043T3
▶ Type: TFT module with board
▶ Display pixels: 800x480 Px
▶ Overall dimensions (mm): 121.9x74.7x6.35
▶Display inches: 4.3"
▶ AA size (mm): 95.04x53.86
▶Application: industrial computer
▶Viewing angle: IPS full viewing angle
▶ Backlight/Brightness: 400cd/M2
▶ Pin: 40pin
▶Interface mode: TTL

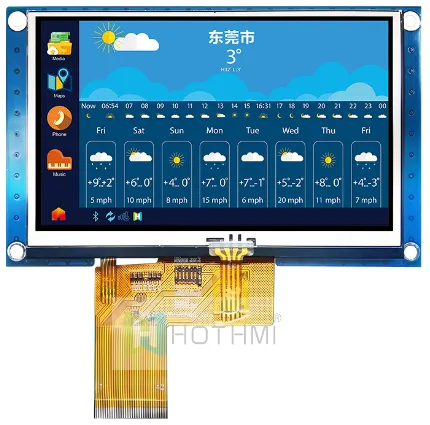

Examples of LVDS interface TFT strip module products:
▶Model: HTM-TFT043C03-LVDS
▶ Type: TFT module with board
▶ Display pixels: 800x480 Px
▶ Overall dimensions (mm): 126.5x68.2x8.05
▶Display inches: 4.3"
▶ AA size (mm): 95.04x53.86
▶ Application: Instrumentation
▶Viewing angle: IPS full viewing angle
▶ Backlight/Brightness: 500cd/M2
▶ Pin: 40pin
▶Interface mode: LVDS

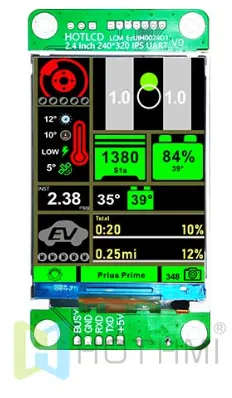

UART/RS232 interface TFT module product examples:
▶Model: TFT-EU02401KL
▶ Type: TFT smart serial screen
▶ Display content: 240x320
▶Display inches: 2.4”
▶ Overall dimensions (mm): 42.60x80.00×4.30
▶ AA size (mm): 36.72x 48.96
▶ Product application: industrial system
▶Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: 600cd/M2
▶ Connection method PIN number: 5pin
▶ Interface mode: UART/RS232
Which interface is the best? There is no absolute answer to this question. The users should choose the suitable interface for their applications, not the best. Let's see the following comparison of the pros and cons of these interfaces.
Display Interface | Resolution | Speed | Pin Count. | Noise | Power Consumption | Connect Distance | Cost |
MCU 8080/6800 | Middle | Low | More | Middle | Low | Short | Low |
RGB 16/18/24 | Middle | Fast | More | Worst | High | Short | Low |
SPI | Small | Low | Less | Middle | Low | Short | Low |
I²C | Small | Low | Less | Middle | Low | Short | Low |
Serial RGB 6/8 | Middle | Fast | Less | Worst | High | Short | Low |
LVDS | Large | Fast | Less | Best | Low | Long | High |
MIPI | Large | Fastest | Less | Best | Low | Short | Average |
For more display interface combinations, please contact our team!
