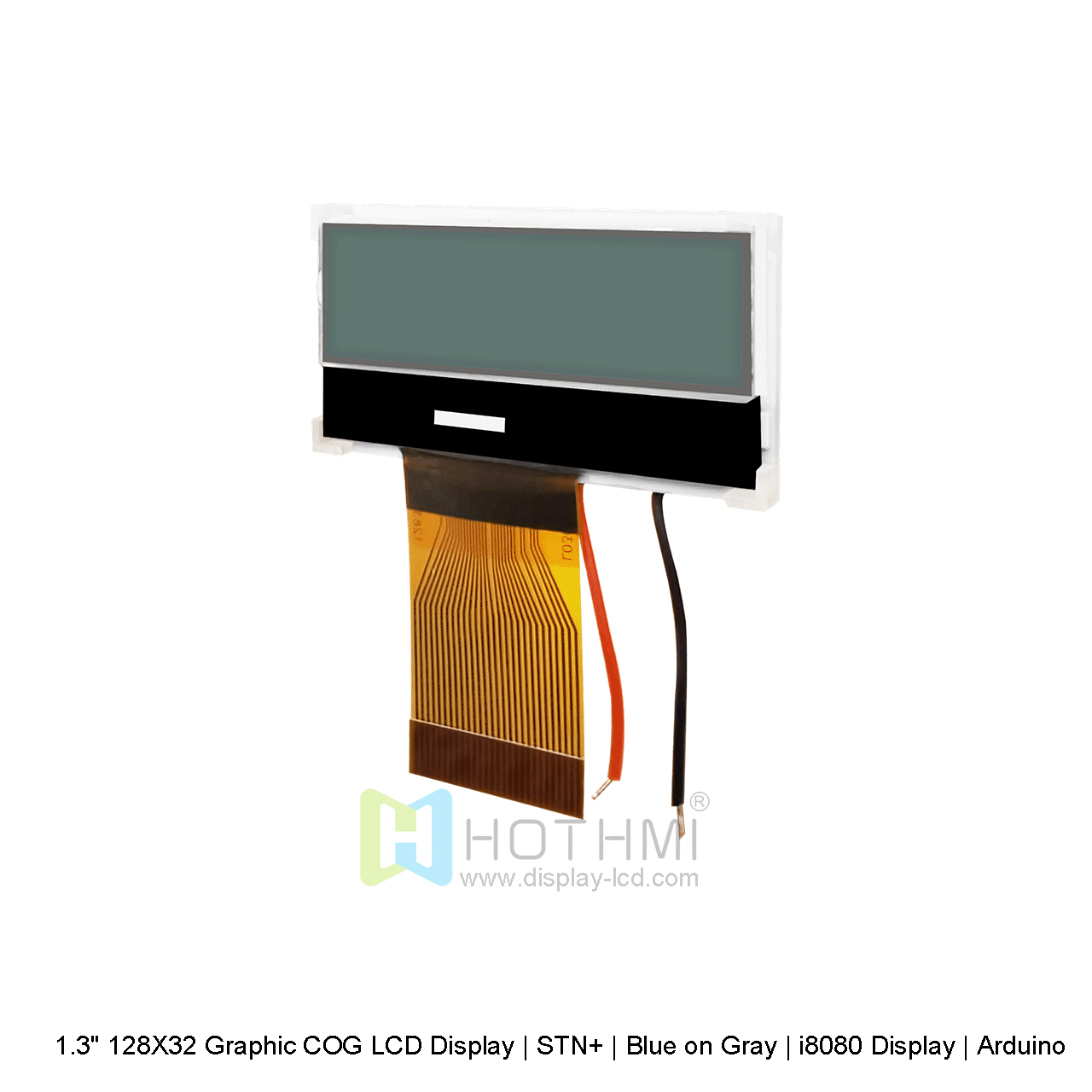

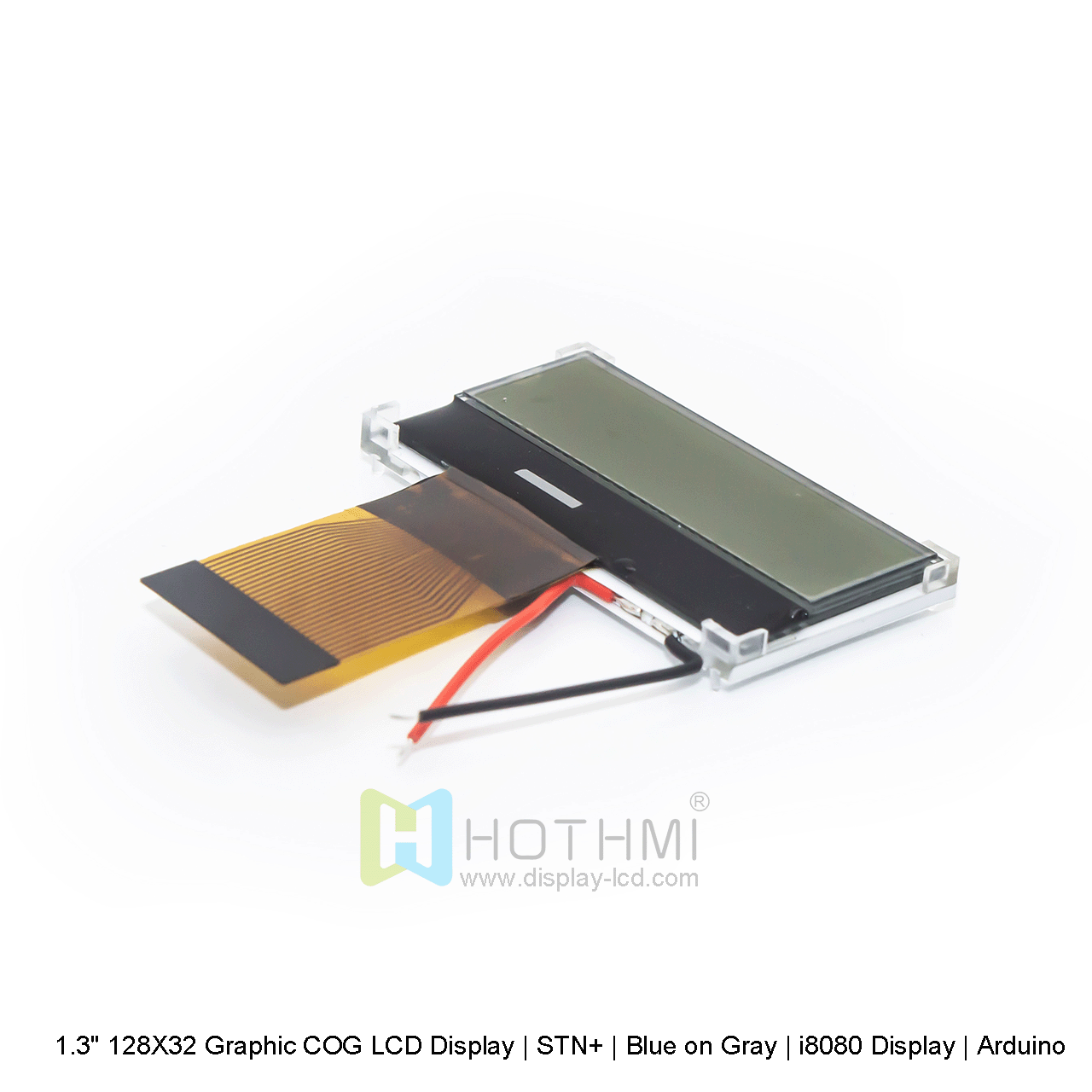

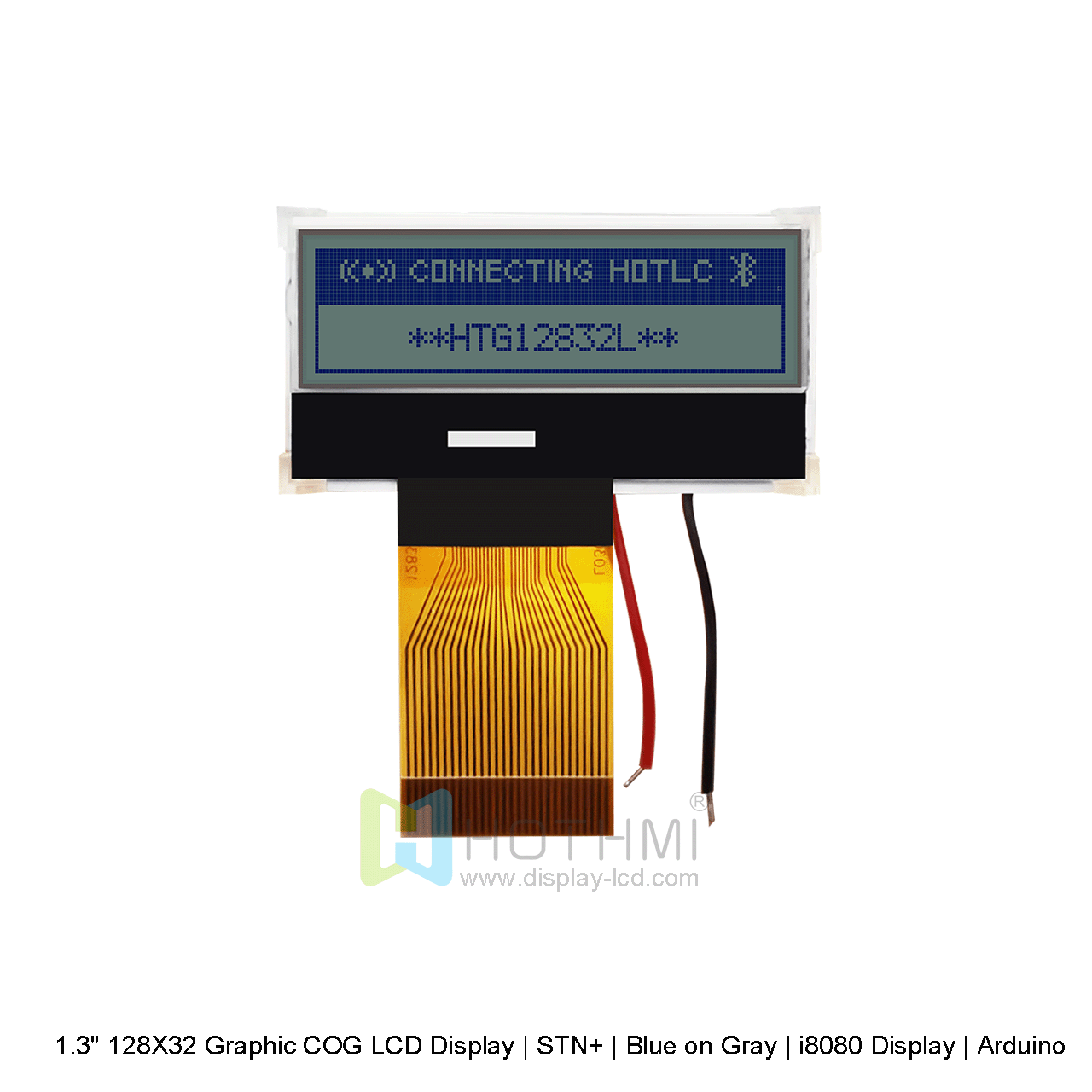

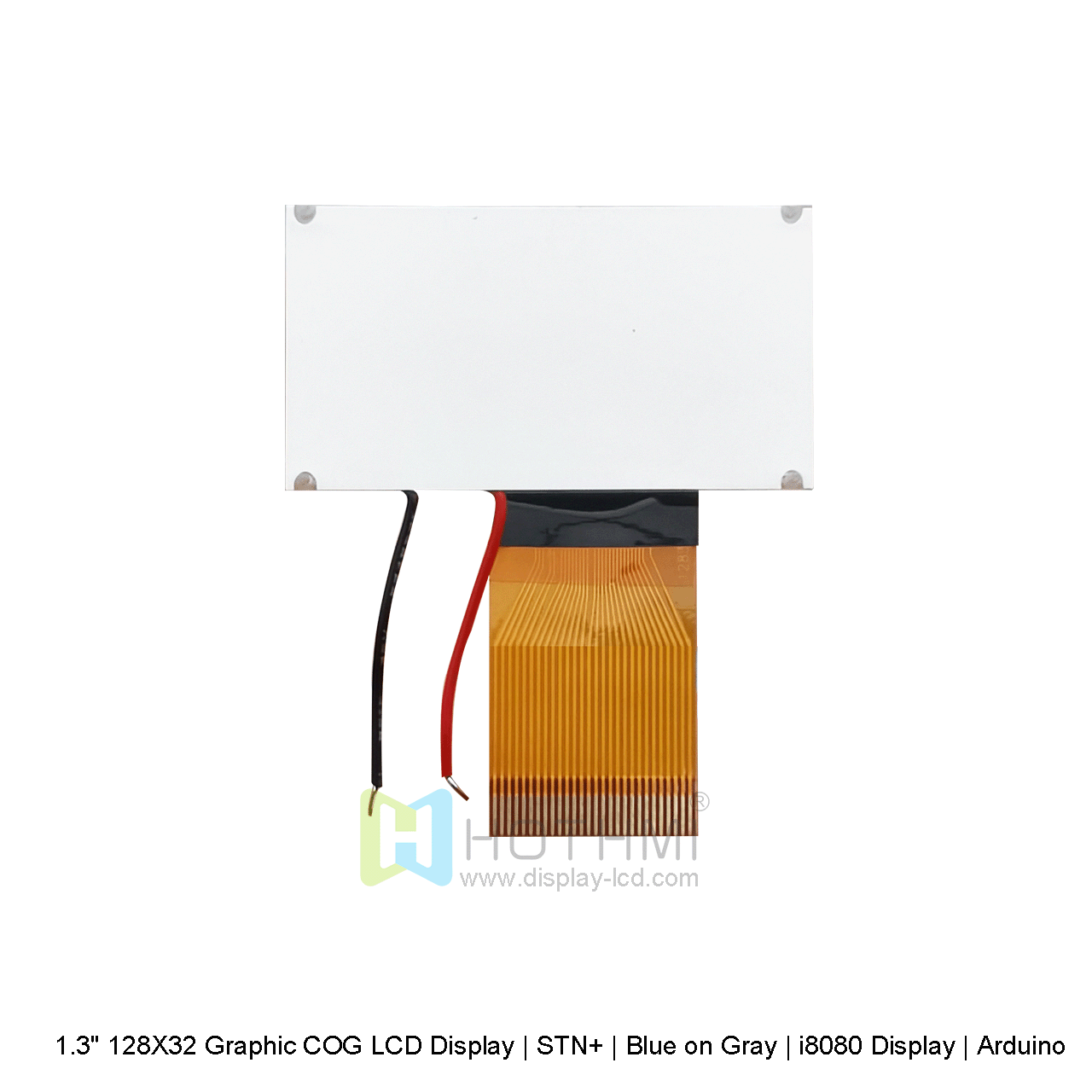

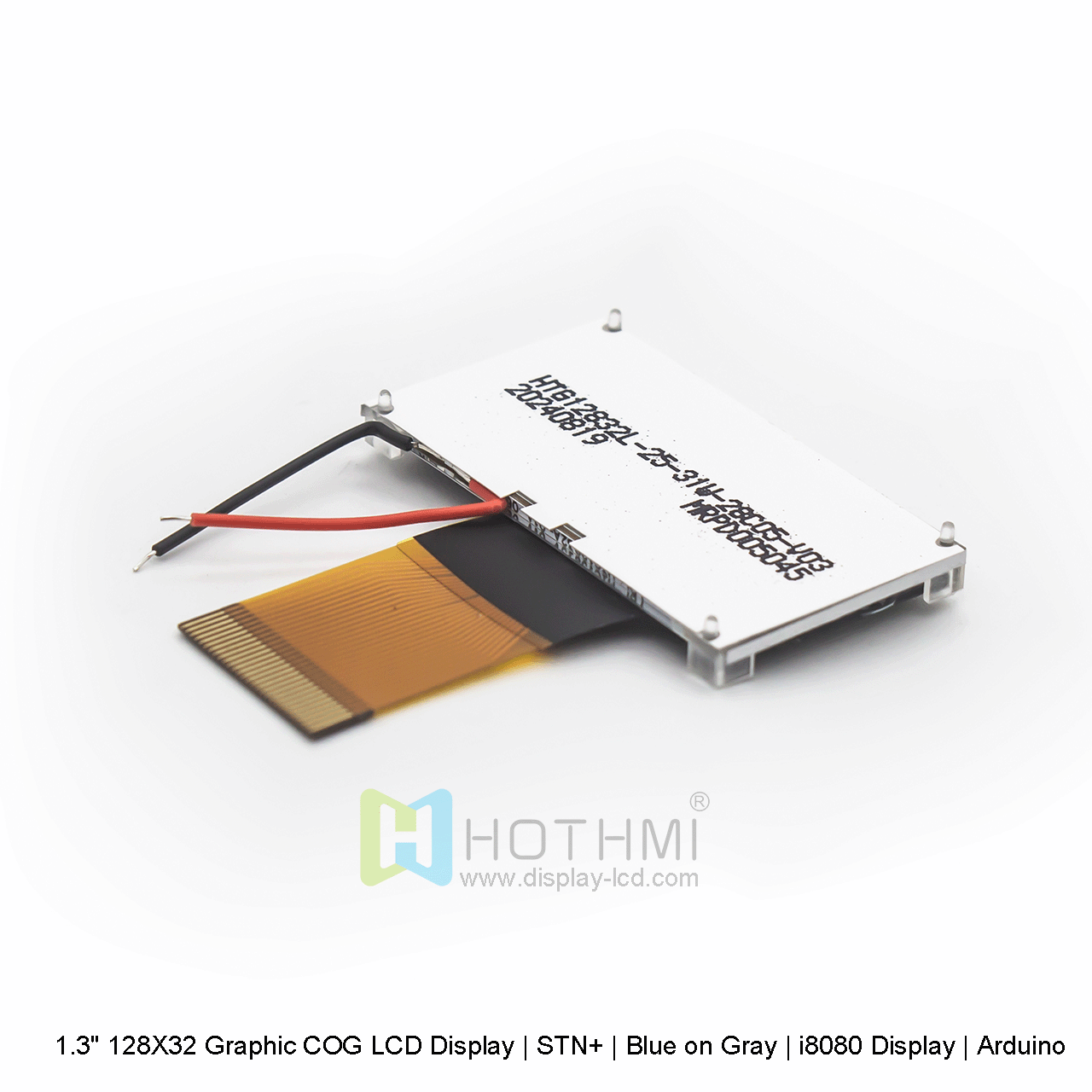

1.3" 128X32 Graphic COG LCD Display | STN+ | Blue on Gray | i8080 Display

1.3" 128X32 Graphic COG LCD Display | STN+ | Blue on Gray | i8080 Display | Arduino

▶ Model: HTG12832L-11W-A5P

▶ Type: COG graphics module
▶ Display pixels: 128x32
▶ Overall dimensions (mm): 36.5x19.9x3.3
▶ Display Inch: 1.3"
▶ VA size (mm): 32.0x10.1
▶ AA size (mm): 29.66x8.45
▶ Point spacing (mm): 0.235x0.202
▶ Application: Bank U-Shield
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FPC-28PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20-70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

1.3" 128X32 Graphic COG LCD Display | STN+ | Blue on Gray | i8080 Display | Arduino

This HOT DISPLAY 12832 Graphic Chip on Glass (COG) LCD Display Module displays blue pixels on a gray background. This translucent LCD display is designed to reflect the image to the viewer in ambient light due to the reflection of the polarizer, making the image clearly visible. When used in darker environments, the display has a backlight, which makes the display brightness suitable for optimal visibility and impressive colors. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.

The display of this graphic COG LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. The HTG12832L model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

Custom LCD Size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

Customize the number of dots and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Backlight color and structure customization:

There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.

Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.

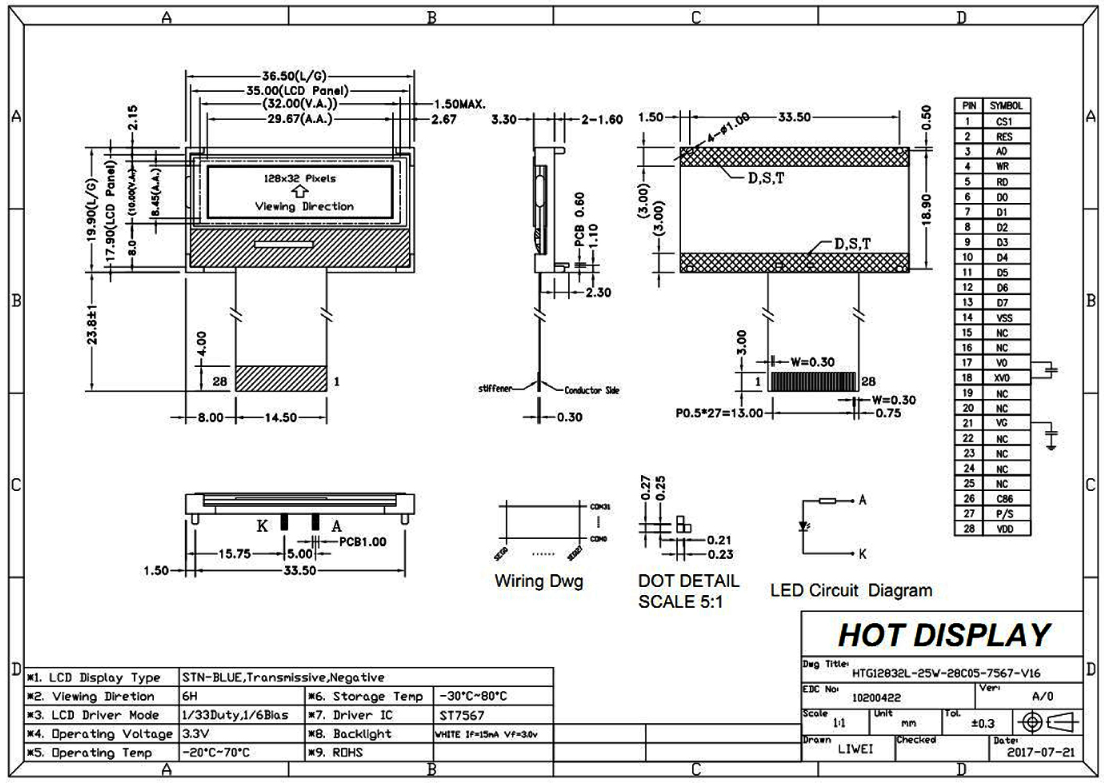

Parameter	Specifications	Unit
Name	HTG12832L-11W-A5P
Graphic display	128 × 32	dots
Dimensions	36.5x 19.9 x 3.3 (MAX)	mm
VA size	32.0 x 10.1	mm
AA size	29.66 x 8.45	mm
Pixel pitch	0.235 x 0.202	mm
Driver chip	ST7567
Applied voltage	3.3V	V
Backlight illumination	White
Display mode	STN(+)
Drive mode	1/32 duty cycle
Product type	Graphic LCD COG
Polarizer type	Transflective
