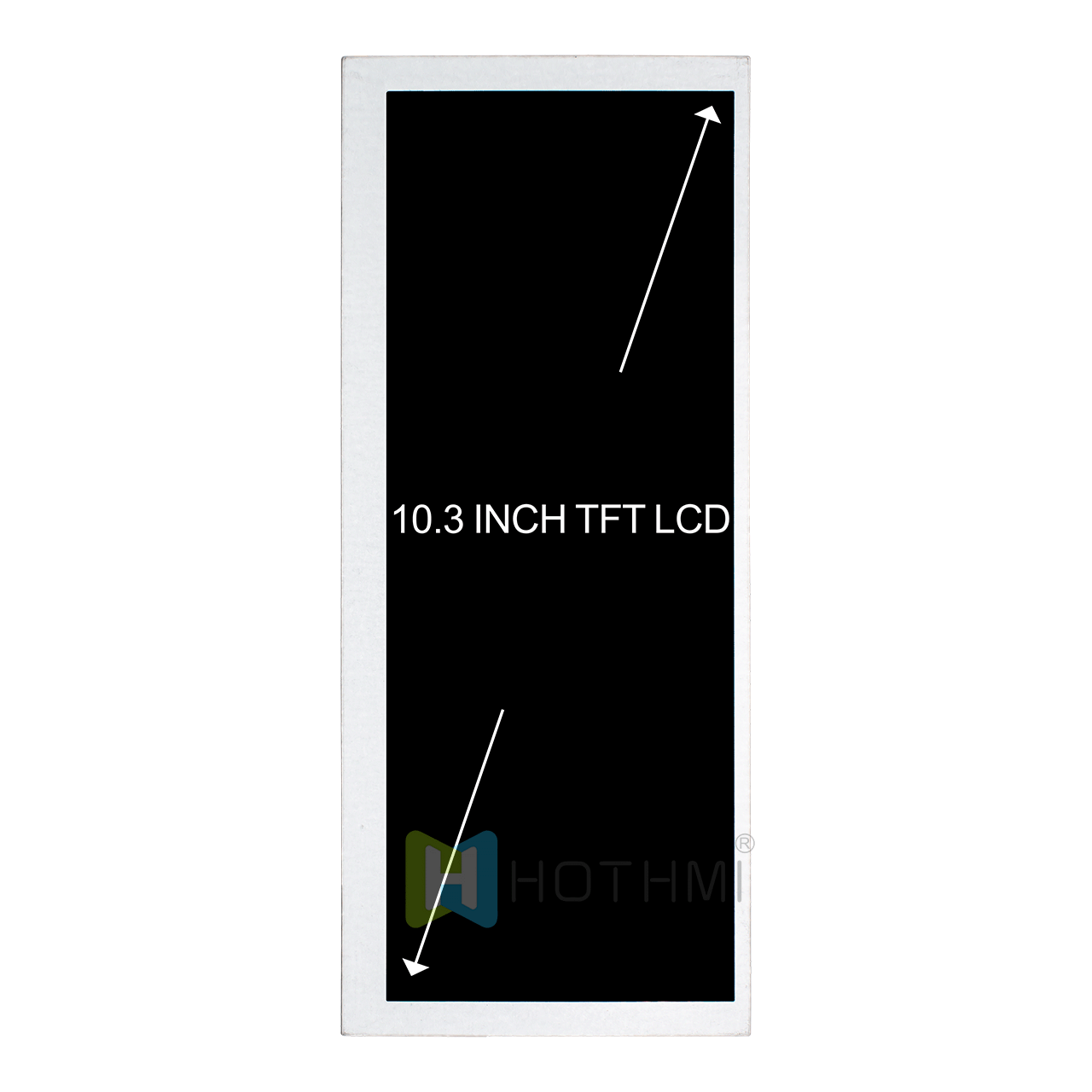

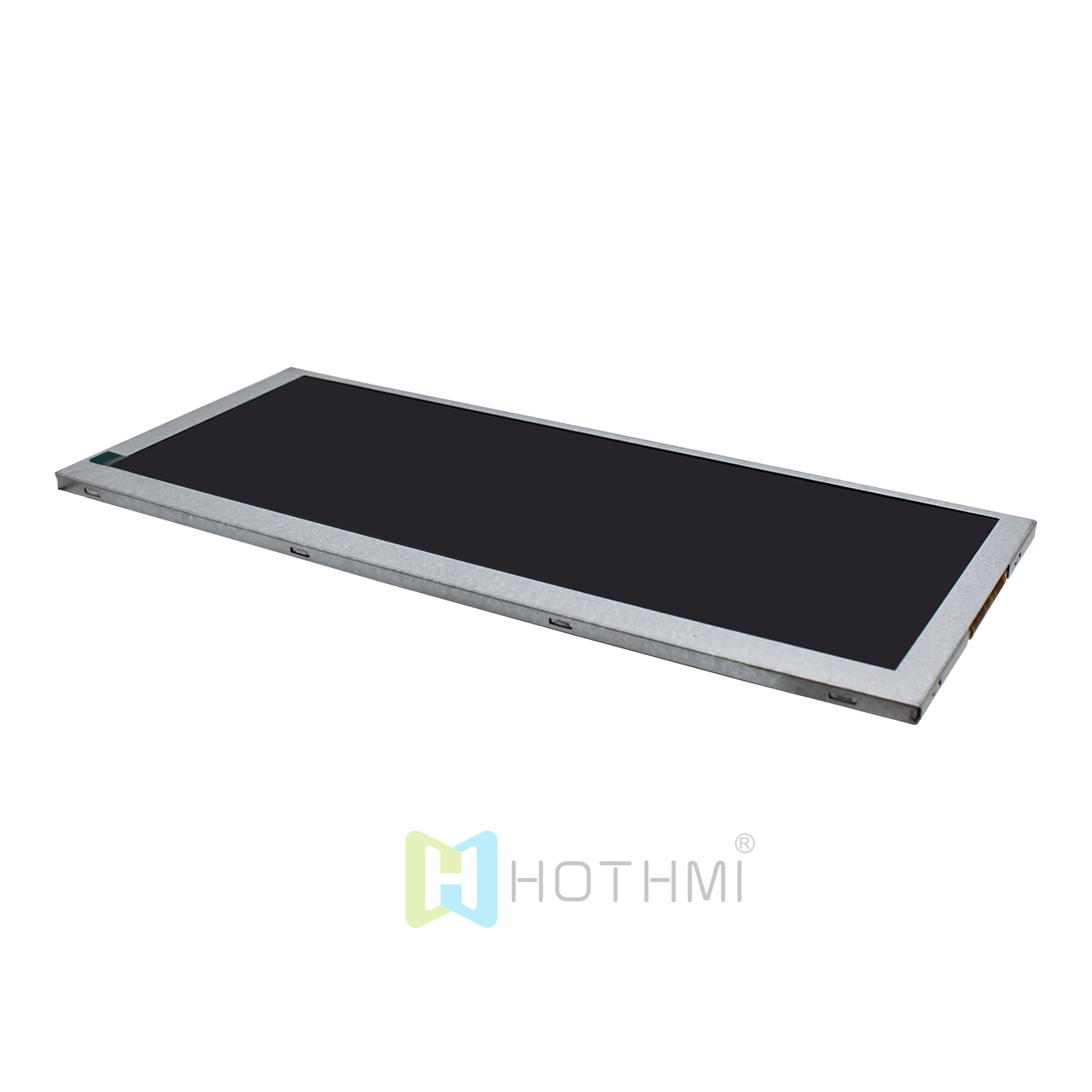

10.3 inch TFT LCD/ IPS LCD display MIPI interface/1440x540 color screen module/optional touch screen

10.3 inch TFT LCD/ IPS LCD display MIPI interface/1440x540 color screen module/optional touch screen

▶ Model: TFT-H103W01ZMINV5N30

▶ Type: 10.3 inch TFT LCD
▶ Display pixels: 1440x540 Px

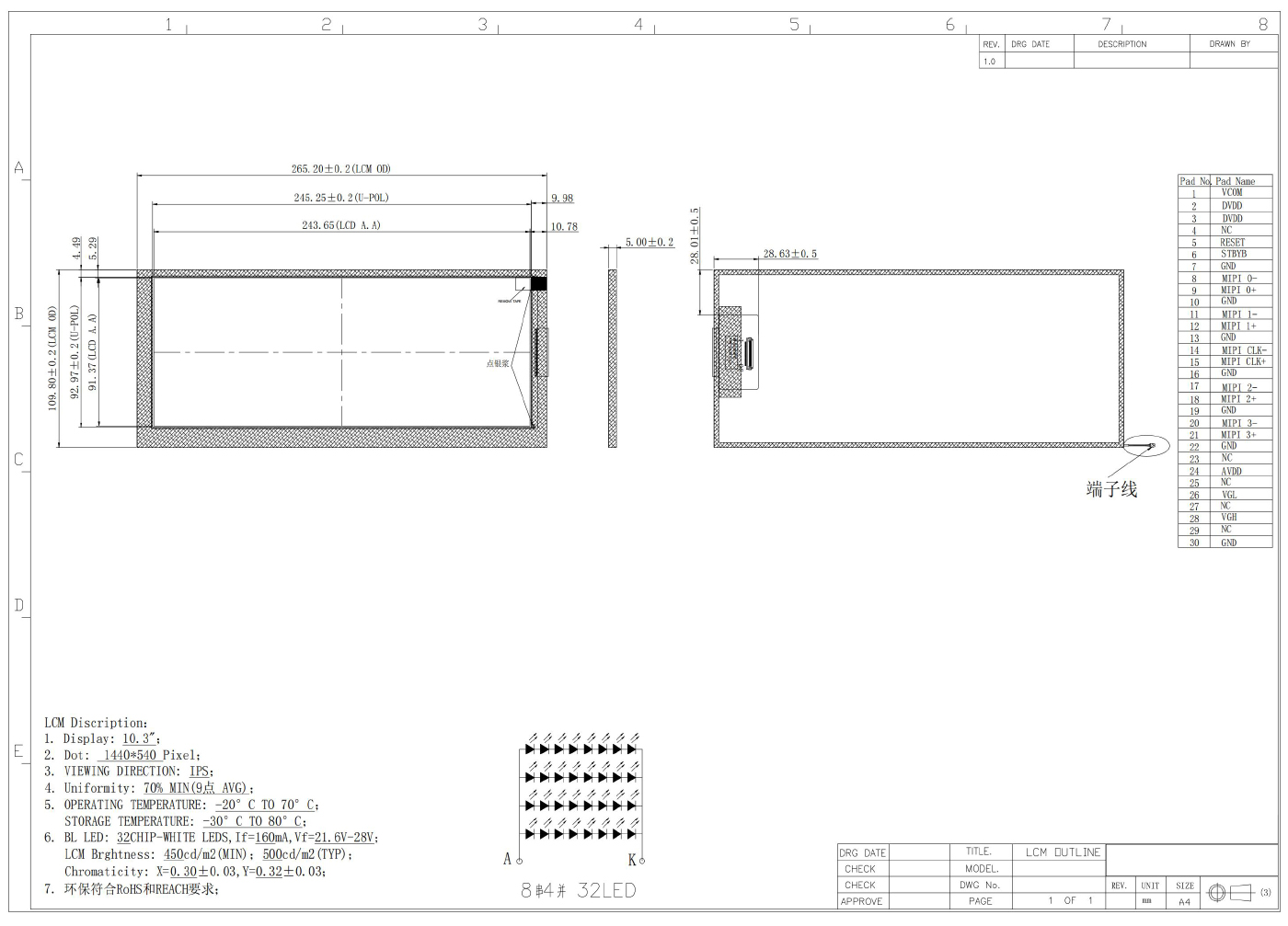

▶ Overall dimensions (mm): 265.2×109.8×5.0
▶ Display inches: 10.3"
▶ Effective size (mm): 243.65×91.37
▶ Application: Android/RK column
▶Viewing angle: IPS (U89/D89/L89/R89)
▶Brightness: 450cd/m2

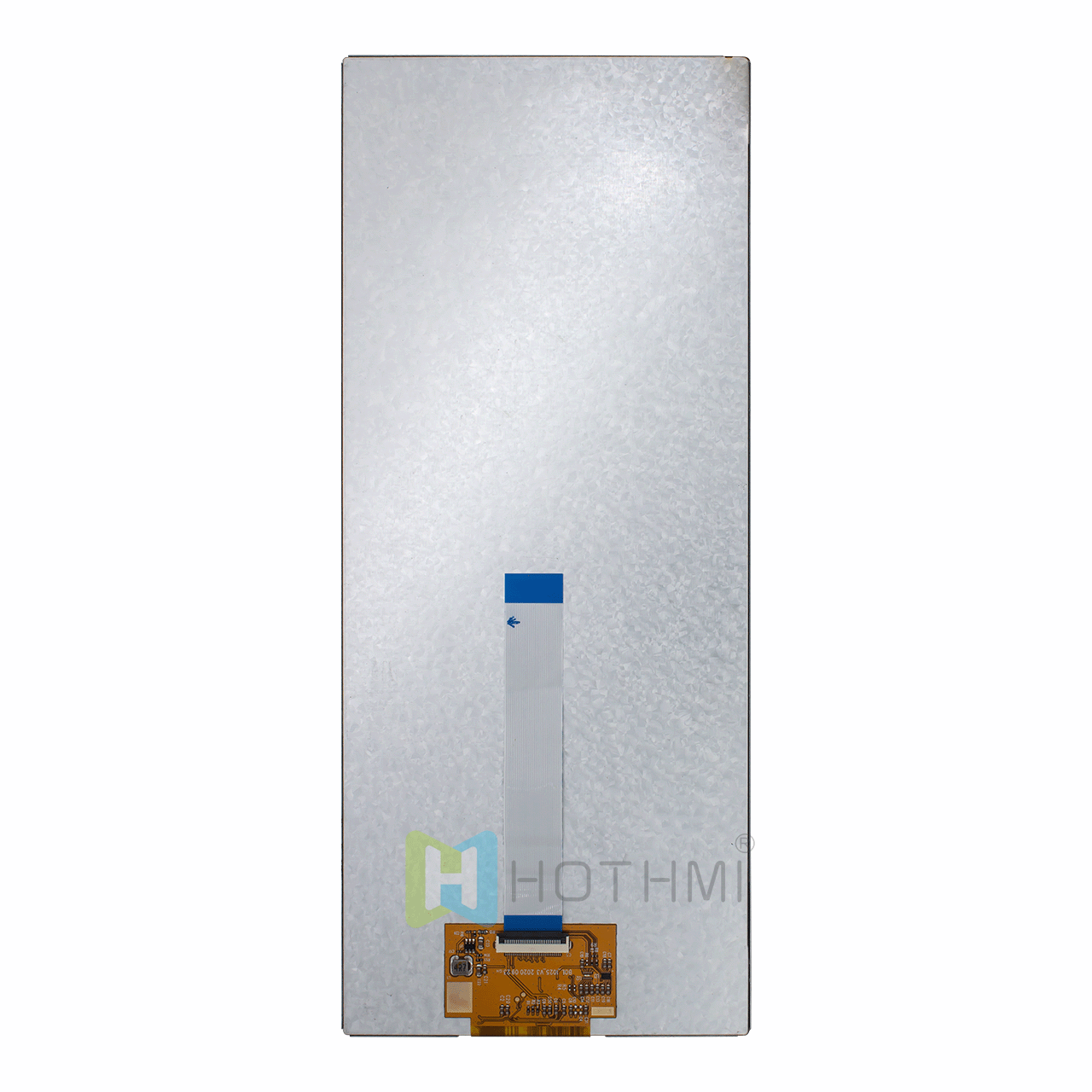

▶ Pin: FPC-30PIN
▶ Interface: MIPI
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 3.3V
▶ Driver chip: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H103W01ZMINV5N30 | 10.3 inch TFT LCD/ IPS LCD display MIPI interface/1440x540 color screen module/optional touch screen
TFT-H103W01ZMINV5N30 is a 10.3 inch TFT LCD full-viewing IPS color LCD vertical screen strip display module, 1440x540 resolution, built-in NV3051F controller, optional resistive touch screen and capacitive touch screen (built-in GT911 controller), high image quality, Wide viewing angle, support MIPI interface, 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector) , 3.3V voltage, supports vertical screen display. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc. .

project	Parameter Description	unit
TFT series	Standard TFT
Diagonal size	10.3”	Inch
Resolution	1440 × RGB × 540 (TFT)	dots
Dimensions	265.2 × 109.8 × 5.0	mm
Effective area (AA)	243.65 × 91.37	mm
LCD type	TFT strip
Display perspective	80/80/80/80 (IPS)
Aspect ratio	3:8
Backlight type	LED, white
TFT driver IC	NV3051F
Touch panel	none
Surface	Glare
Brightness	450	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
