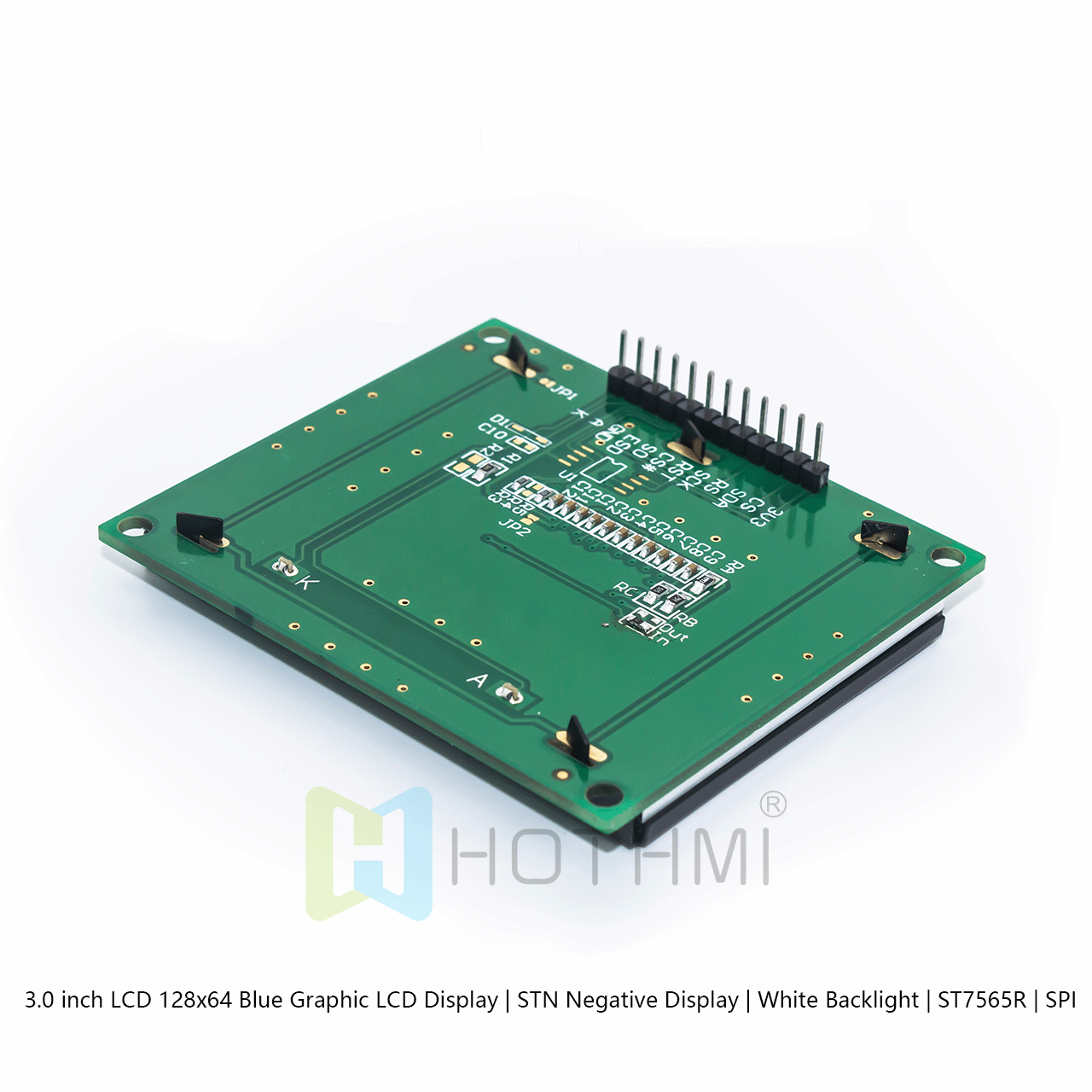

3.0 inch LCD 128x64 Blue Graphic LCD Display | STN Negative Display | White Backlight | ST7565R

3.0 inch LCD 128x64 Blue Graphic LCD Display | STN Negative Display | White Backlight | ST7565R | SPI arduino

▶ Model: HTM12864-85-25W-A5P

▶ Type: Multi-national font LCM
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 71.0x62.0x7.8
▶ VA size (mm): 65.5x38.8
▶ AA size (mm): 60.77x32.93
▶ Point spacing (mm): 0.515x0.475
▶ Application: Industrial control instrument
▶ Viewing angle: 6H
▶ Backlight: white
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Special instructions: with Chinese, English and Russian text library
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3v
▶ Driver chip: ST7565R
