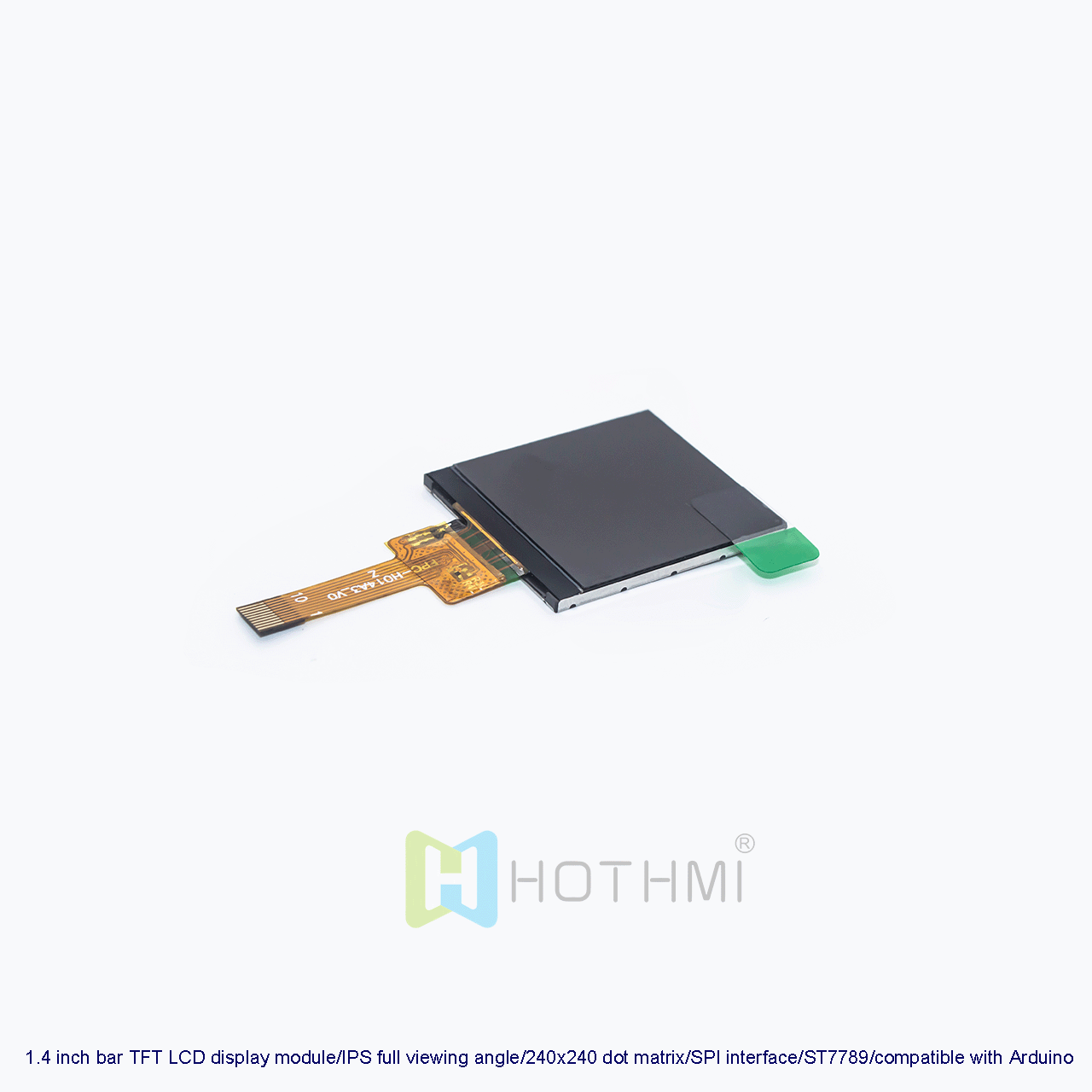

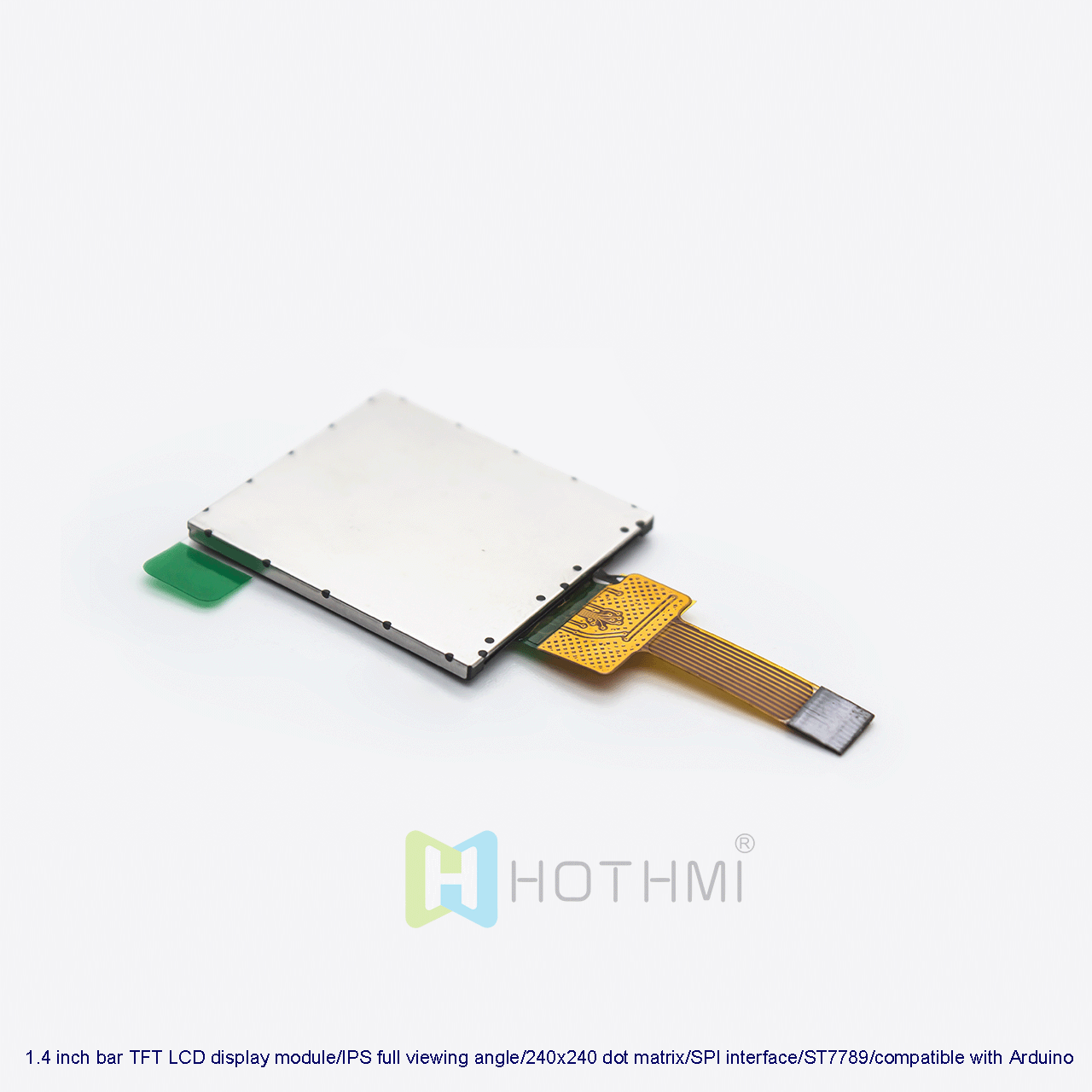

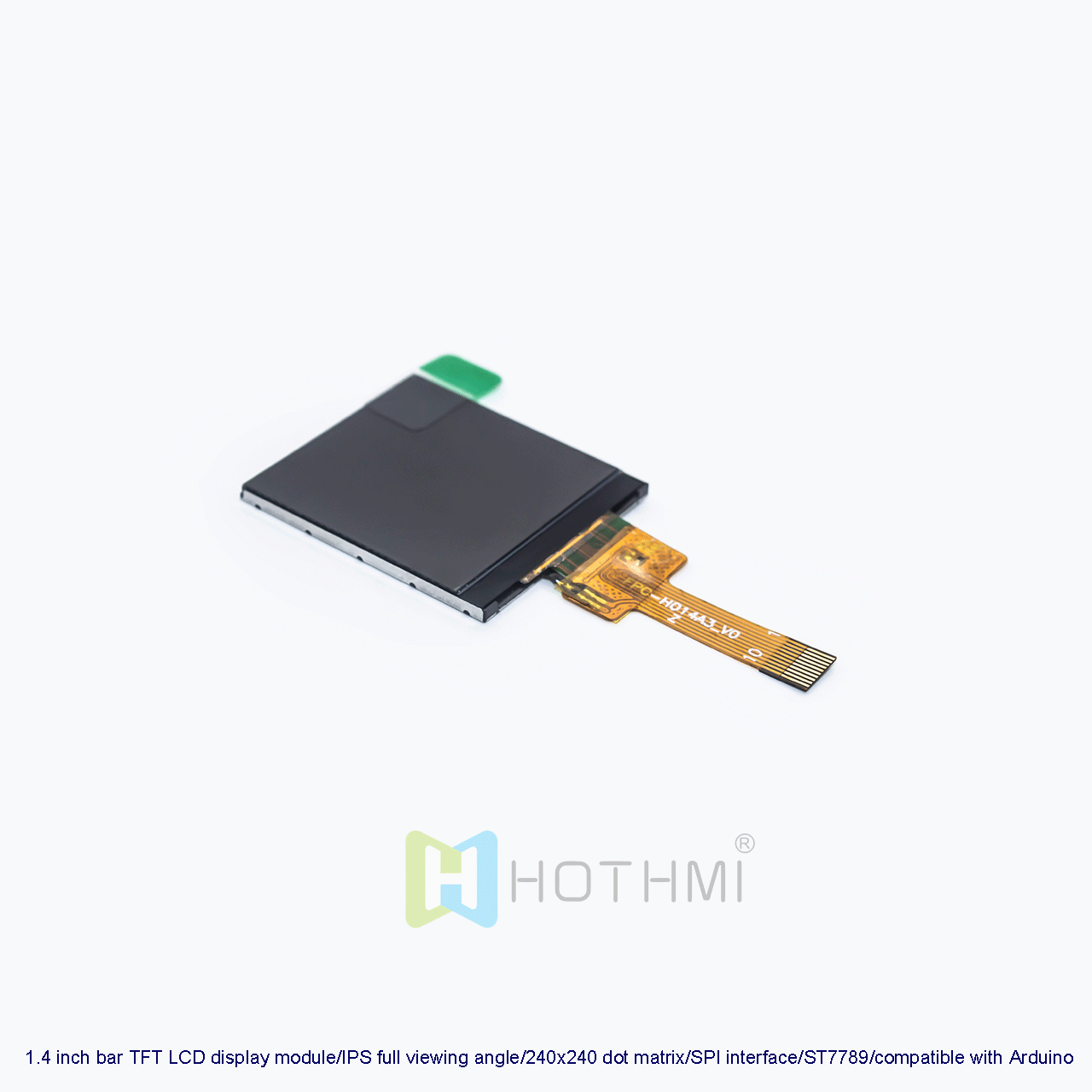

  • TFT-H014A3DQIST4N10 | 1.4 Inch IPS TFT LCD Display Module | 240x240 Square Screen for Smartwatch

    TFT-H014A3DQIST4N10 is a 1.4-inch square TFT LCD display module with a resolution of 240x240, a built-in ST7789 controller, an optional touch screen, high picture quality, IPS wide viewing angle, support for 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 2.8V voltage, and support for vertical display.


    This product is presented to users in a 1.4 square appearance, with a delicate body, but the content that can be displayed is not monotonous at all. The application range can be smart wearables, electronic equipment, instrumentation and other products. Suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms. All materials meet environmental protection requirements and RoHS standards.


    This is a display version with FPC flexible cable. The ST7789 controller has strong compatibility. Developers can develop driver boards according to the functions of specific products. If this model is not suitable, we also provide the same size 128x128 resolution TFT-H014A1QQTST5N26. Of course, if the developer lacks development experience, we also provide models with driver boards for this display: 1.4-inch SPI display module HTM-H014A3-SPI-V0, 1.44-inch 128x128 resolution TFT module LCM-TFT014T1QQS4LN08D.



  • Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

    Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

    Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

    Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.


  • project

    Parameter Description

    unit

    TFT series

    Standard TFT


    Diagonal size

    1.4

    Inch

    Resolution

    240 × RGB × 240 (TFT)

    dots

    Dimensions

    27.56x30.7x1.82

    mm

    Effective area (AA)

    25.2x25.2

    mm

    LCD type

    Square TFT


    Display perspective

    80/80/80/80 (IPS)


    Aspect ratio

    1:1


    Backlight type

    LED, white


    TFT driver IC

    ST7789


    Touch panel

    None


    Surface

    Glossy


    Brightness

    400

    cd/

    Operating temperature

    -20~+70

    °C

    Storage temperature

    -30~+80

    °C
