2" 128x64 Graphic LCD | 128 x 64 Graphic LCD | FSTN Positive | SPI Interface

2" 128x64 Graphic LCD | 128 x 64 Graphic LCD | FSTN Positive | SPI Interface | RGB Red Green Blue Backlight

▶ Model: HTM12864-117-35S-A5P

▶ Type: LCM with Chinese font
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 54.6x52.0x5.2
▶ VA size (mm): 45.2x27.0
▶ AA size (mm): 40.92x24.2
▶ Point spacing (mm): 0.52x0.52
▶ Application: Industrial instrumentation
▶ Viewing angle: 6H
▶ Backlight/Brightness:red green blue
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Special instructions: Optional font library
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3V/5V optional
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

2" 128x64 Graphic LCD | 128 x 64 Graphic LCD | FSTN Positive | SPI Interface | RGB Red Green Blue Backlight

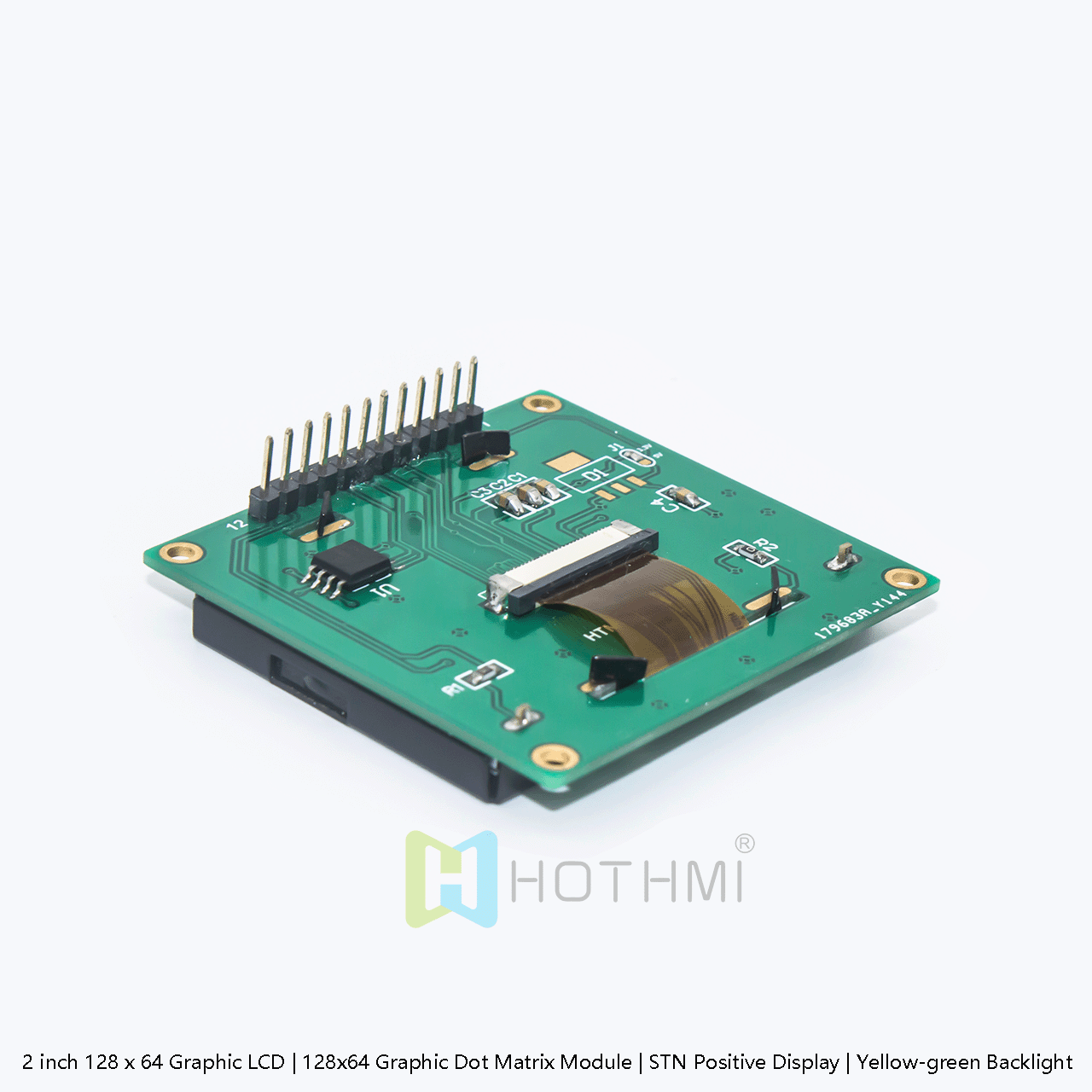

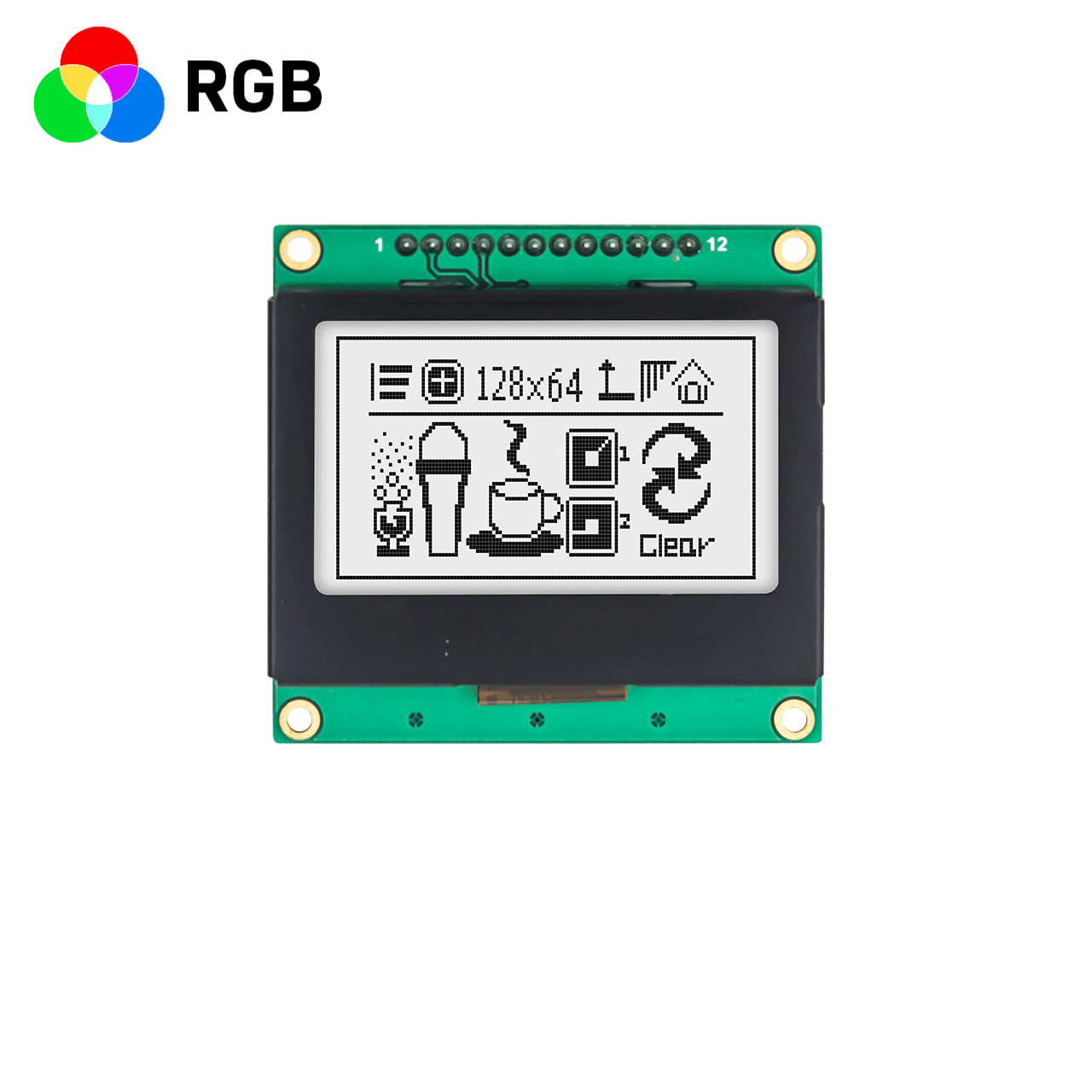

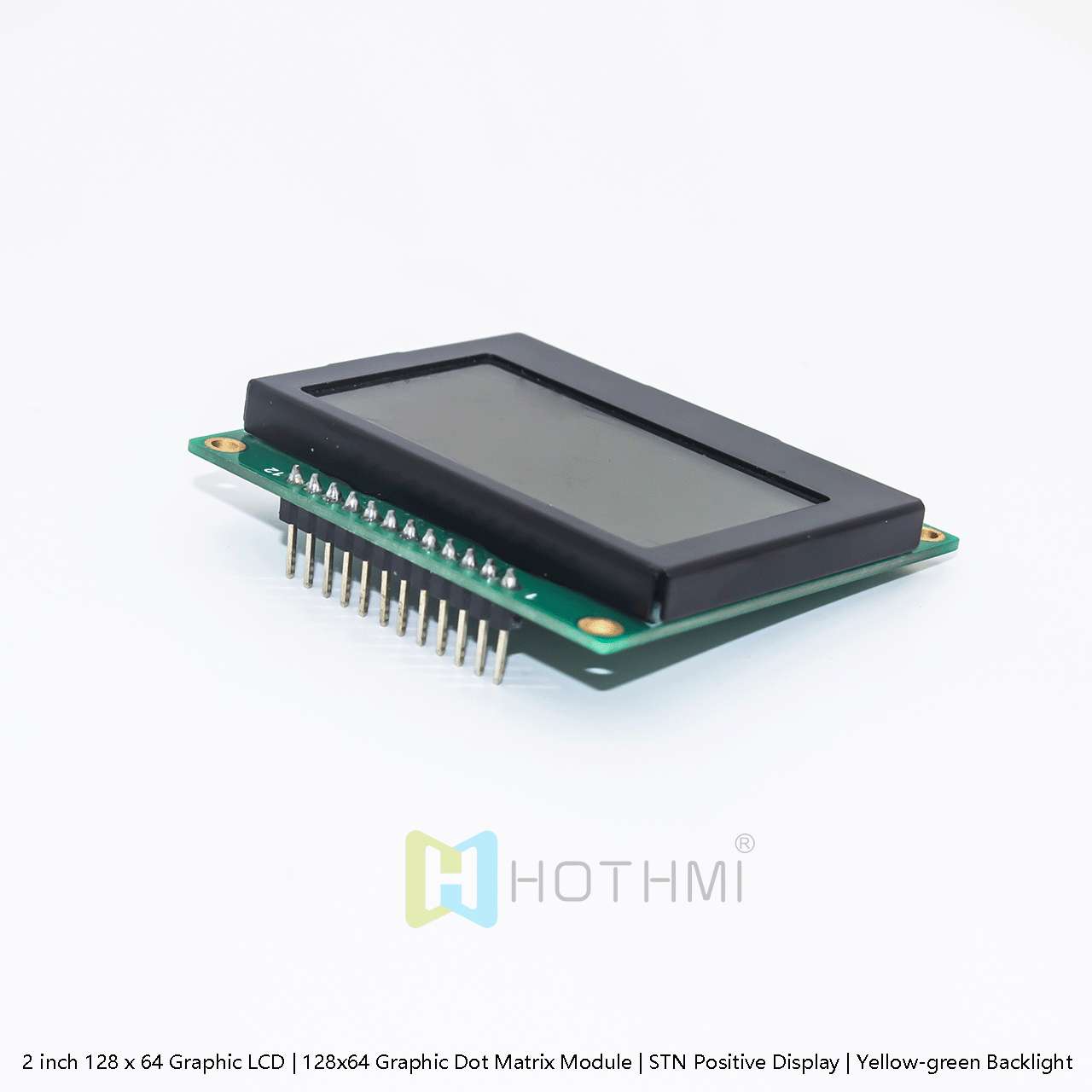

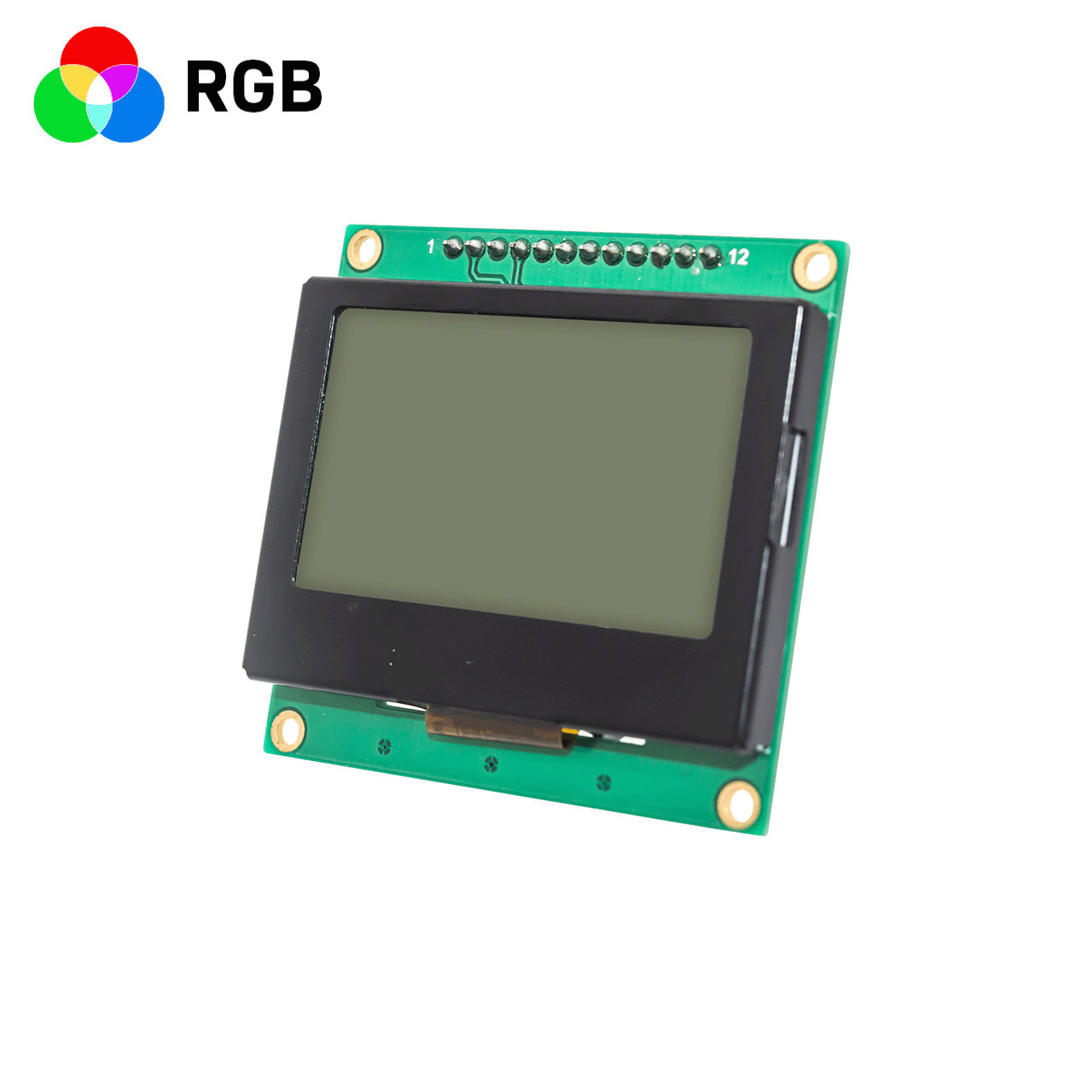

2" 128x64 RGB Graphic LCD with Red Green Blue background and 128x64 dark grey pixels, ST7567 controller is very common and well documented, 6800 8-bit parallel interface, contains a single LED backlight that can be easily dimmed by resistor or PWM, STN LCD Positive, wide operating temperature range, compact size, optional 3.3v or 5v power supply and optional pin header connection.

This fully transparent LCD display is carefully designed, the LCD has a strong built-in backlight to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

It operates well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00 and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

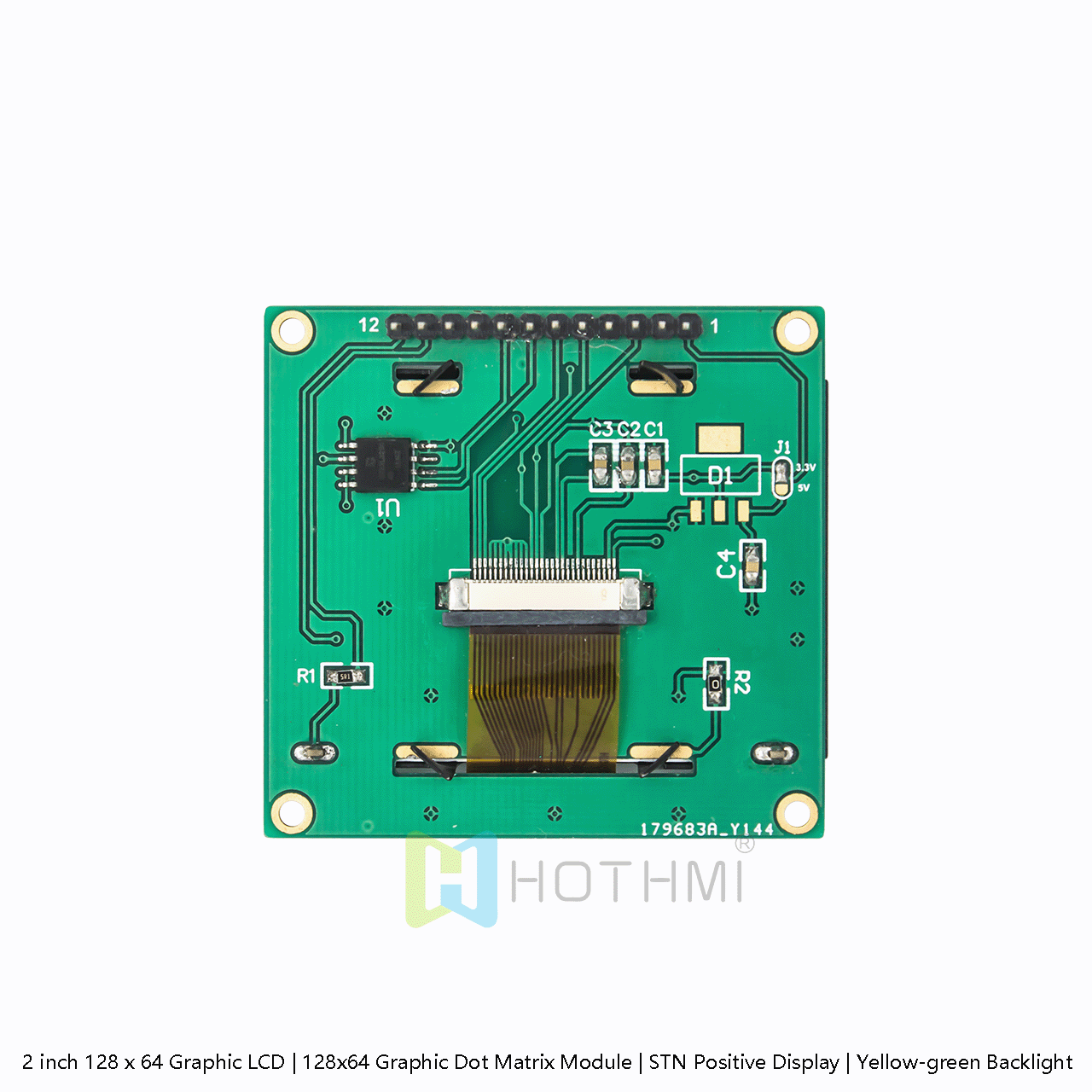

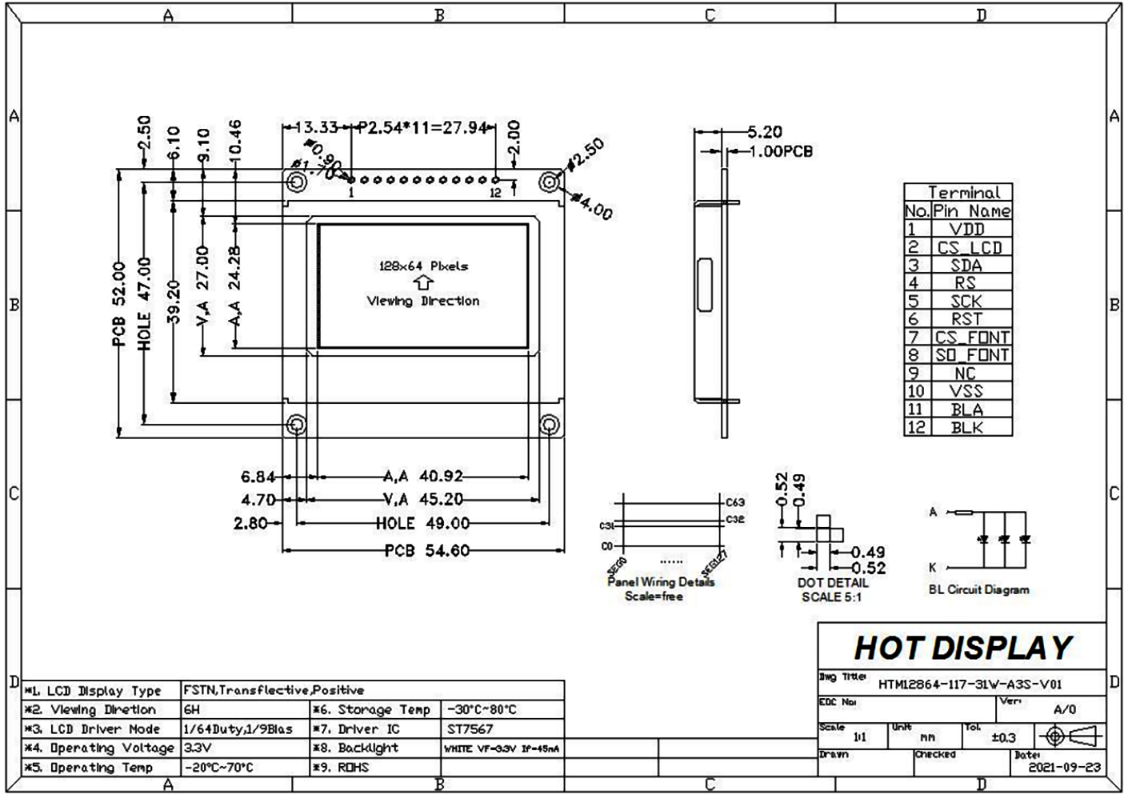

Item	specification	Unit
Name	HTM12864-117-35S-A5P
Number of dots	128 × 64	dots
Module size	54.6x 52.0 x 5.2 (MAX)	mm
VA size	45.2 (W)x 27.0(H)	mm
AA size	40.92(W) x 24.2(H)	mm
Pixel pitch	0.52 x 0.52	mm
IC	ST7567
Power supply voltage	5V	V
Backlight	Red green blue
Display mode	FSTN(+)
Drive mode (Duty)	1/64 duty cycle
Type	Graphic LCD
Characteristics	Transmissive
