3-inch 128x64 Graphic LCD Display Module | 128x64 Graphic LCD Module | SPI Interface | White Background with Gray Text | FSTN Positive

3-inch 128x64 Graphic LCD Display Module | 128x64 Graphic LCD Module | SPI Interface | White Background with Gray Text | FSTN Positive | Transflective Polarizer

▶ Model: HTM12864-123-31W-A5P

▶ Type: LCM graphic dot matrix
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 71.0x62.0x7.8
▶ VA size (mm): 65.5x38.0
▶ AA size (mm): 60.77x32.93
▶ Viewing angle: 6H
▶ Backlight/brightness: white light

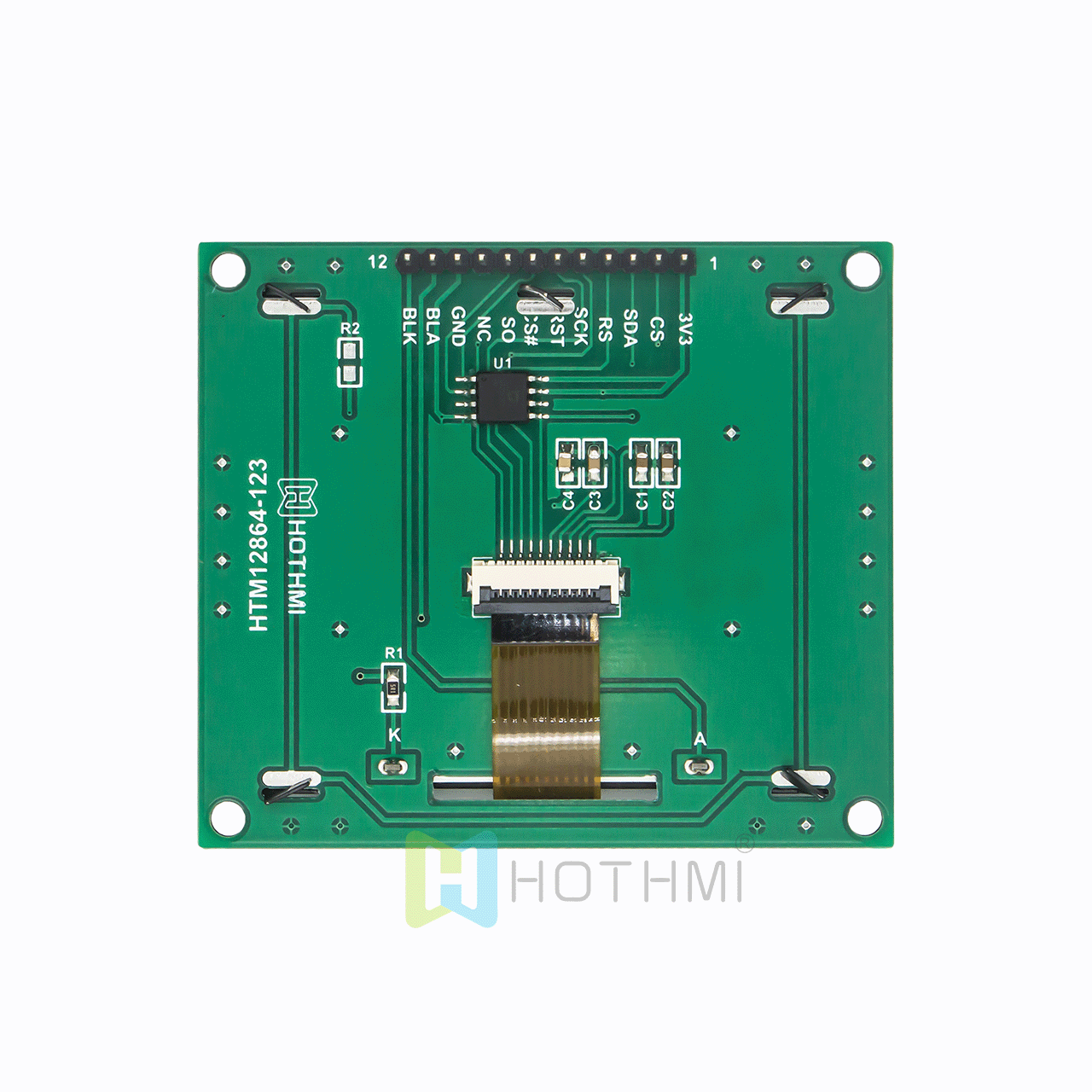

▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Working temperature: -20~80℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

3-inch 128x64 Graphic LCD Display Module | 128x64 Graphic LCD Module | SPI Interface | White Background with Gray Text | FSTN Positive | Translucent Polarizer

This Hot Display 3-inch 128x64 Graphic LCD Display Module has a white background with 128x64 monochrome dark gray pixels, the ST7567 controller is very common and well documented, it has a 4-wire SPI interface, FSTN-LCD positive, wide operating temperature range, wide viewing angle, ROHS compliant, and compact size. Pin header connections by default.

It can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. It can be used in any embedded system, industrial equipment, security, medical, and handheld devices.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

item	specification	unit
Model	HTM12864-123-31W-A5P
Column × Row	128 columns × 64 rows	dots
Module Size	71.0 x 62.0 x 7.8 (MAX)	mm
Viewable (VA) Area	65.5 x 38.0	mm
Active (AA) Area	60.77 x 32.93	mm
IC	ST7567
Supply Voltage	5V	V
Backlight	white
Mode	FSTN(+)
Drive Mode (Duty)	1/64 duty cycle
Type	Graphic LCD
Features	Transflective
