2.7-inch 12864 graphic LCD module/LCM128x64 graphic dot matrix module/grey background with blue characters/ST7567 controller/STN+

2.7-inch 12864 graphic LCD module/LCM128x64 graphic dot matrix module/grey background with blue characters/ST7567 controller/STN+

▶ Model: HTM12864N01A-11W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

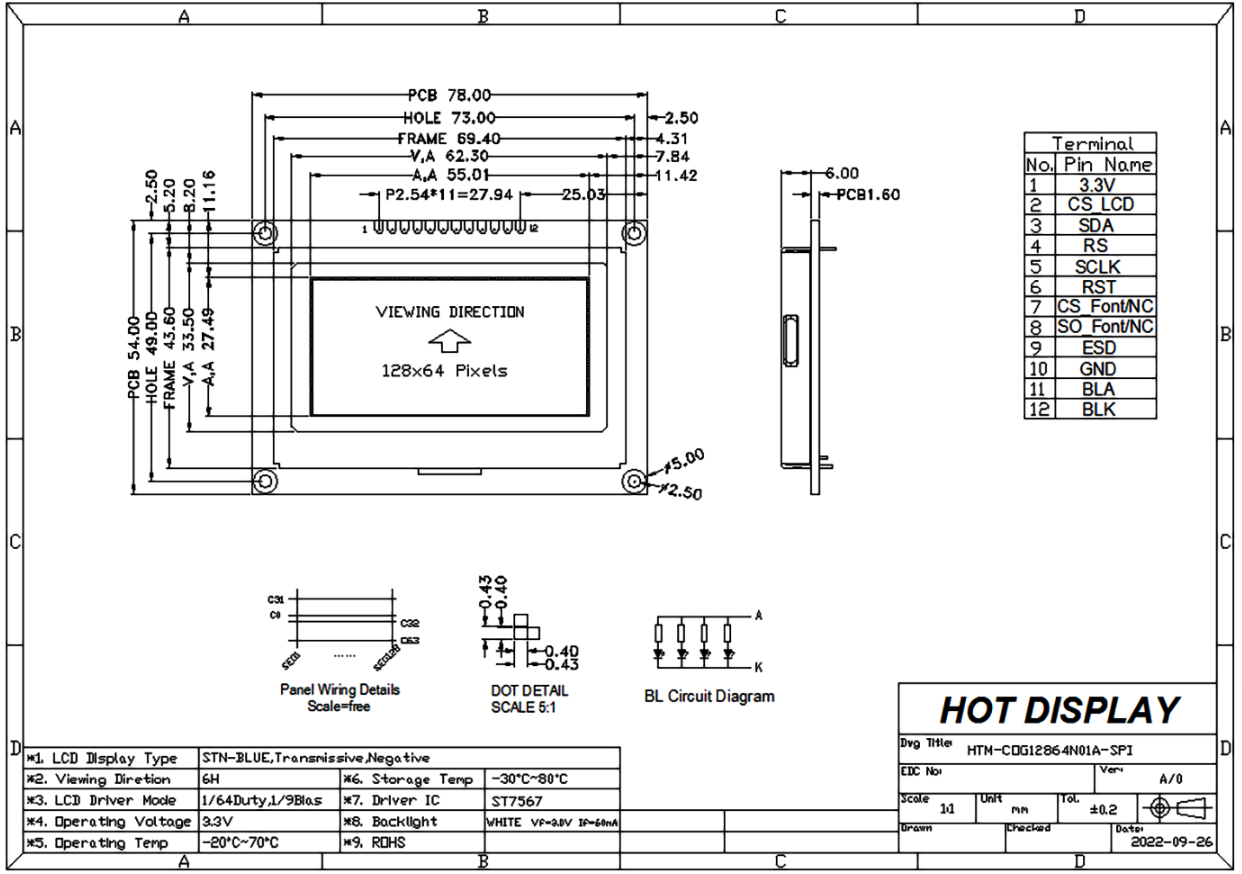

▶ Overall dimensions (mm): 78.0x54.0x7.6
▶ VA size (mm): 62.3x33.5
▶ AA size (mm): 55.01x27.49
▶Viewing angle: 6H
▶ Point spacing (mm): 0.43x0.43
▶ Backlight/brightness: white light
▶ Pin: 12PIN
▶Interface mode: SPI
▶ Working temperature: -20~70℃
▶ Special instructions: Chinese font library can be brought
▶ Supply voltage: 3.3v
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

2.7-inch 12864 graphic LCD module/LCM128x64 graphic dot matrix module/grey background with blue characters/ST7567 controller/STN+
The 2.7-inch LCD128 x 64 LCD display HTM12864N01A-11W-A5P displays illuminated blue pixels on a gray background. This transflective LCD monitor is engineered to provide optimal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.

This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and performs exceptionally well when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.

Item	Specification	Unit
name	HTM12864N01A-11W-A5P
Number of dots	128 x 64	dots
Module size	78.0（W） × 54.0 （H） × 7.6 （T）	mm
Visual (VA) area	62.3 x 33.5	mm
AA size	55.01（W） ×27.49（H）	mm
Point (pixel) spacing	0.43（W） × 0.43（H）mm	mm
IC	ST7567
Applied voltage	5.00V	V
back light	White
model	STN(+)
Drive mode (Duty)	1/64 duty cycle
type	Graphic LCD
Polarizer type	Transflective
