HOTDISPLAY specialize in manufacturing high-quality Customized TFT Touch Panel with sizes ranging from 2 to 32 inches, available in both capacitive and resistive touch technologies. Each Customized TFT Touch Panel can be tailored in dimensions, shape, color, thickness, and material—including PET or glass—to meet specific application requirements.
HOTDISPLAY Customized TFT Touch Panel also supports various surface treatment options such as anti-glare, anti-fingerprint, and anti-static (3A treatment), enhancing durability and user experience. Structural configurations like G+G (Glass + Glass), G+F (Glass + Film), G+FF (Glass + Double Film), P+G (PET + Glass), and P+F (PET + Film) are available to suit different environmental and mechanical demands.
Whether you need a Customized TFT Touch Panel for industrial, medical, automotive, or consumer electronics, HOTDISPLAY ensure superior optical performance, reliable touch response, and robust construction. This Customized TFT Touch Panel is ideal for applications requiring flexibility in design and exceptional functionality.

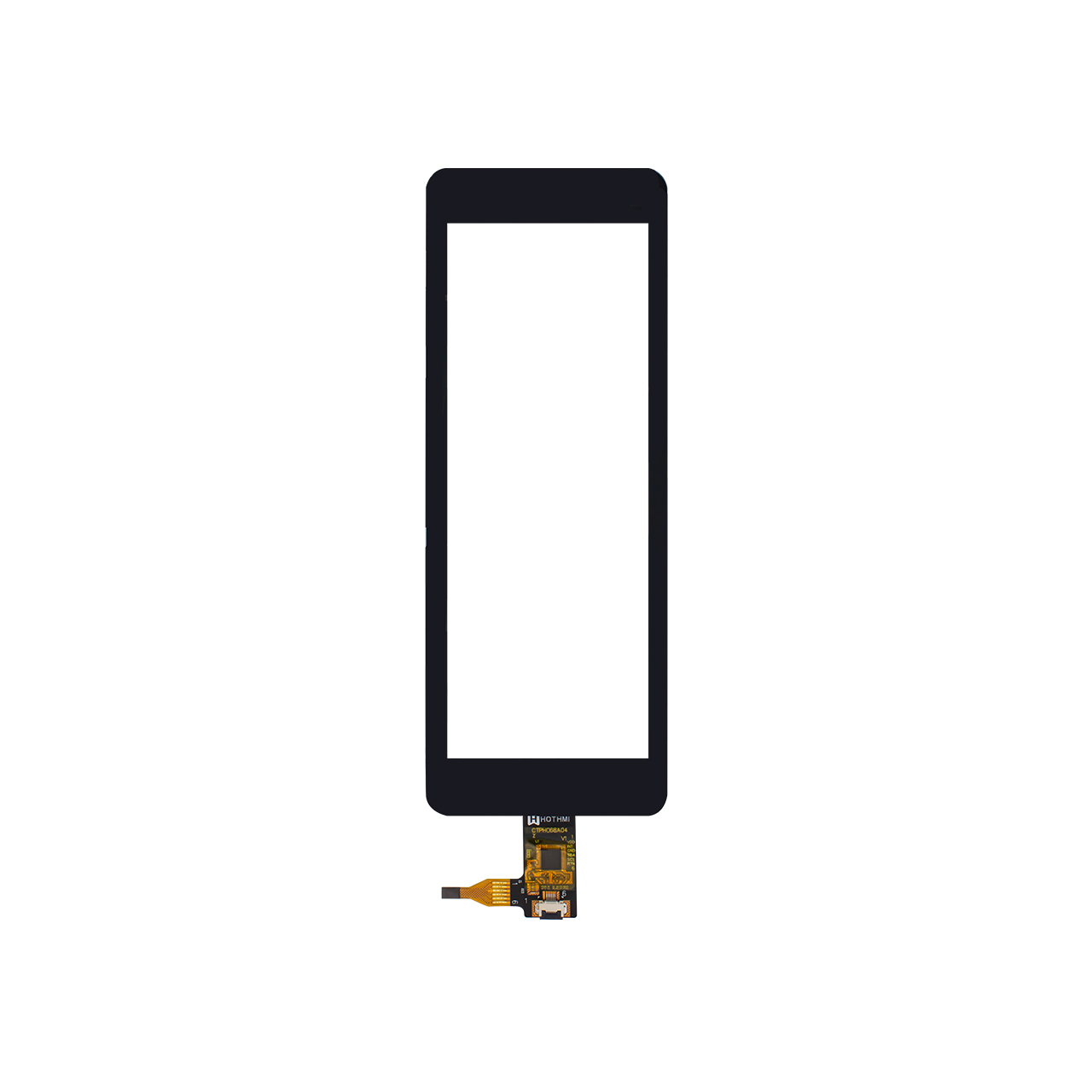

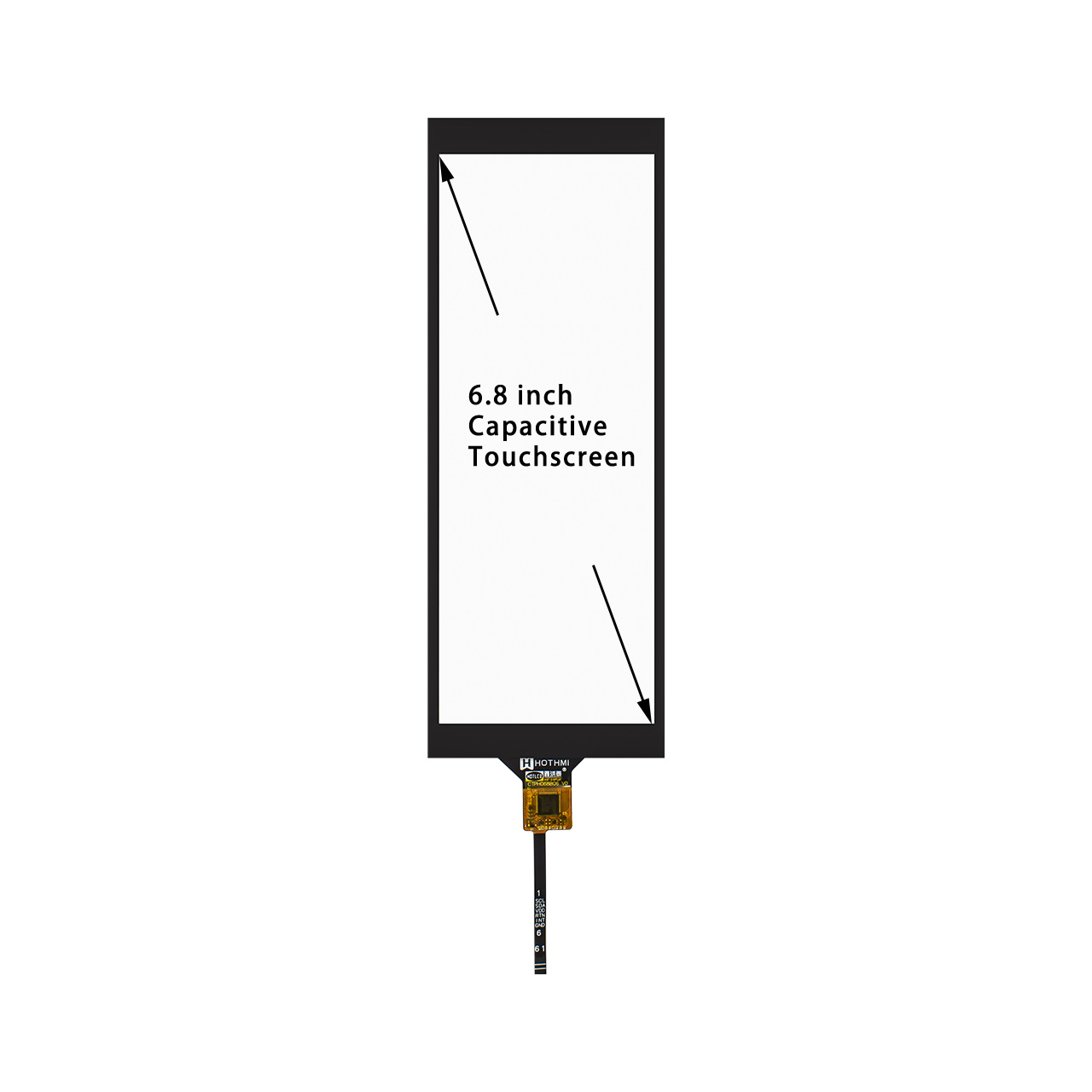

▶ Type: 6.8-inch capacitive touchscreen
▶ Viewport dimensions (mm): 60.79 x 161.1
▶ External dimensions (mm): 73.5 x 195.39 x 1.85
▶ Diagonal dimensions: 6.8 inches
▶ Type: 6.8-inch capacitive touchscreen
▶ Viewport dimensions (mm): 60.79 x 161.112
▶ External dimensions (mm): 73.5 x 195.39 x 1.85
▶ Diagonal dimensions: 6.8 inches
▶ Type: 4.3-inch capacitive touchscreen
▶ Viewport dimensions (mm): 95.44 x 54.26
▶ External dimensions (mm): 105.2 x 67.0 x 1.6
▶ Diagonal dimensions: 4.3 inches
▶ Type: 5.5-inch capacitive touch panel
▶ Viewport dimensions (mm): 68.64x121.56
▶ External dimensions (mm): 76.0x140.0 x 1.2
▶ Diagonal dimensions: 5.5"
▶ Type: 4.3-inch CTP
▶ Viewport Size (mm): 57.16 x 94.7
▶ External Dimensions (mm): 67.0 x 116.24 x 1.4
▶ Diagonal Size: 4.3"
▶ Type: 3.5-inch CTP
▶ Viewport Size (mm): 45.91 x 76.10
▶ External Dimensions (mm): 56 x 92.5 x 1.82
▶ Diagonal Size: 3.5"
▶ Type: 10.1-inch capacitive touch panel
▶ Viewport dimensions (mm): 223.72 x 126.28
▶ External dimensions (mm): 234.7 x 142.6 x 1.55
▶ Diagonal dimensions: 10.1 inches
▶ Type: 7.0-inch capacitive touch panel
▶ Viewport dimensions (mm): 155.1 x 86.8
▶ External dimensions (mm): 164.0 x 99 x 1.6
▶ Diagonal dimensions: 7.0 inches

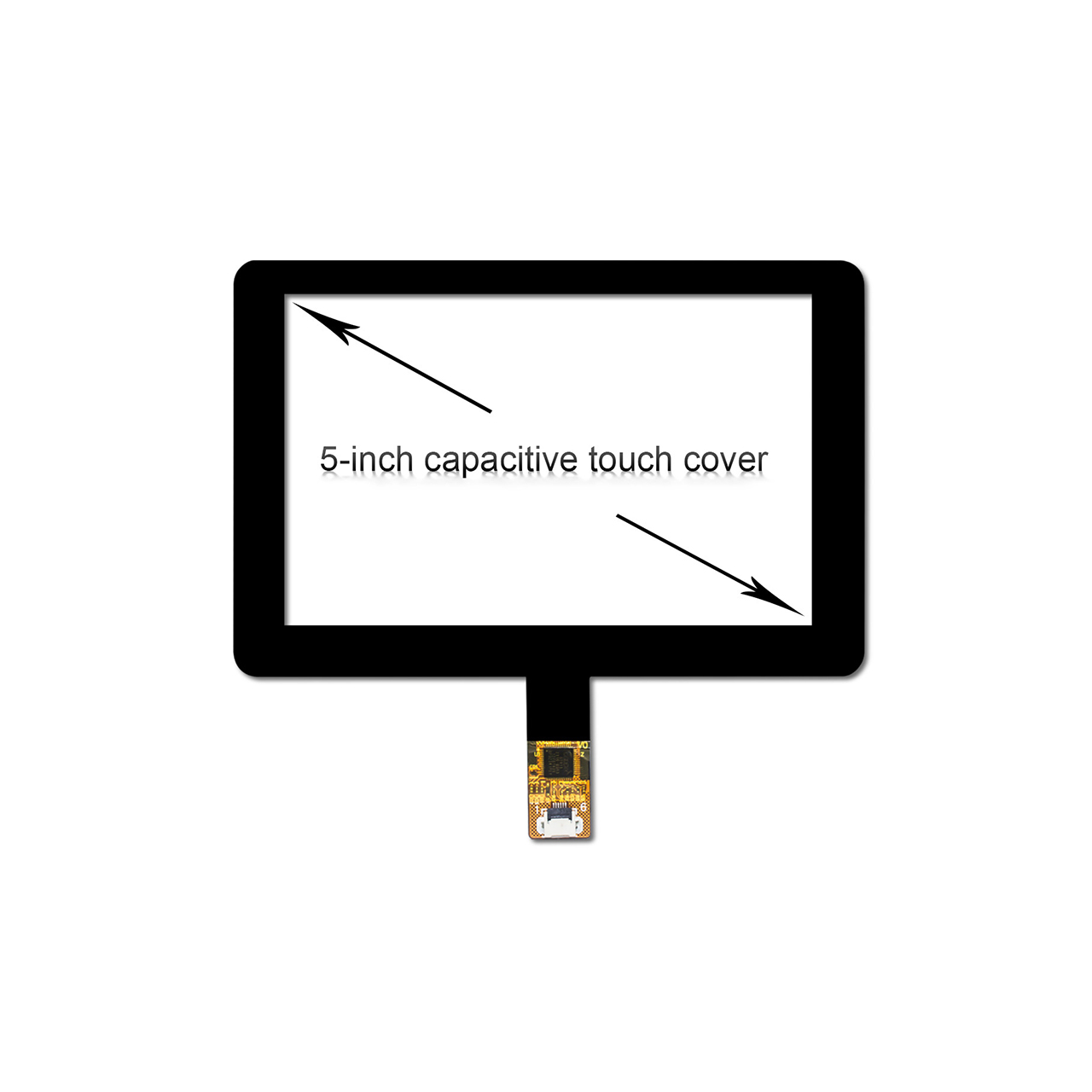

▶ Type: 5.0 inch capacitive touch panel
▶ Window size (mm): 108.8x65.8
▶ Outer board size: (mm): 120.40x75.5x1.6
▶ Number of touch points: 5-point touch
▶ Type: 5.0 inch capacitive touch panel
▶ V.A.Diagonal Size (mm): 108.80x65.80x1.45
▶ Cover Lens size: (mm): 120.40x75.50
▶ Diagonal Size:5.0-inch
▶ Type: 5.0 inch CTP
▶ VA Size (mm): 108.80x65.80
▶ Dimensions : (mm): 130.0x83.00x1.45
▶ Point Touch: 5 points touch
▶ Type: 3.5-inch capacitive touch screen
▶ Window size (mm): 70.68x53.16
▶ Cover size: (mm): 76.9x63.9x1.45
▶ Diagonal size: 3.5 inches
▶ Type: 4.3-inch touch screen
▶ Window size (mm): 96.04x54.86
▶ Dimensions: (mm): 105.2x67.0x1.6
▶ Diagonal size: 4.3 inches
▶ Type: 3.5-inch capacitive touch screen
▶ Window size (mm): 49.56x73.99
▶ Cover size: (mm): 54.34x82.84x1.85
▶ Diagonal size: 3.5 inches
▶ Type: 4.3-inch capacitive touch screen
▶ Window size (mm): 95.44x54.26
▶ Dimensions: (mm): 105.2x67.0x1.6
▶ Diagonal size: 4.3 inches
