HTM12864-7-25W-A5P | 3-inch blue 128x64 graphic LCD display module | ST7565R | SPI for Arduino

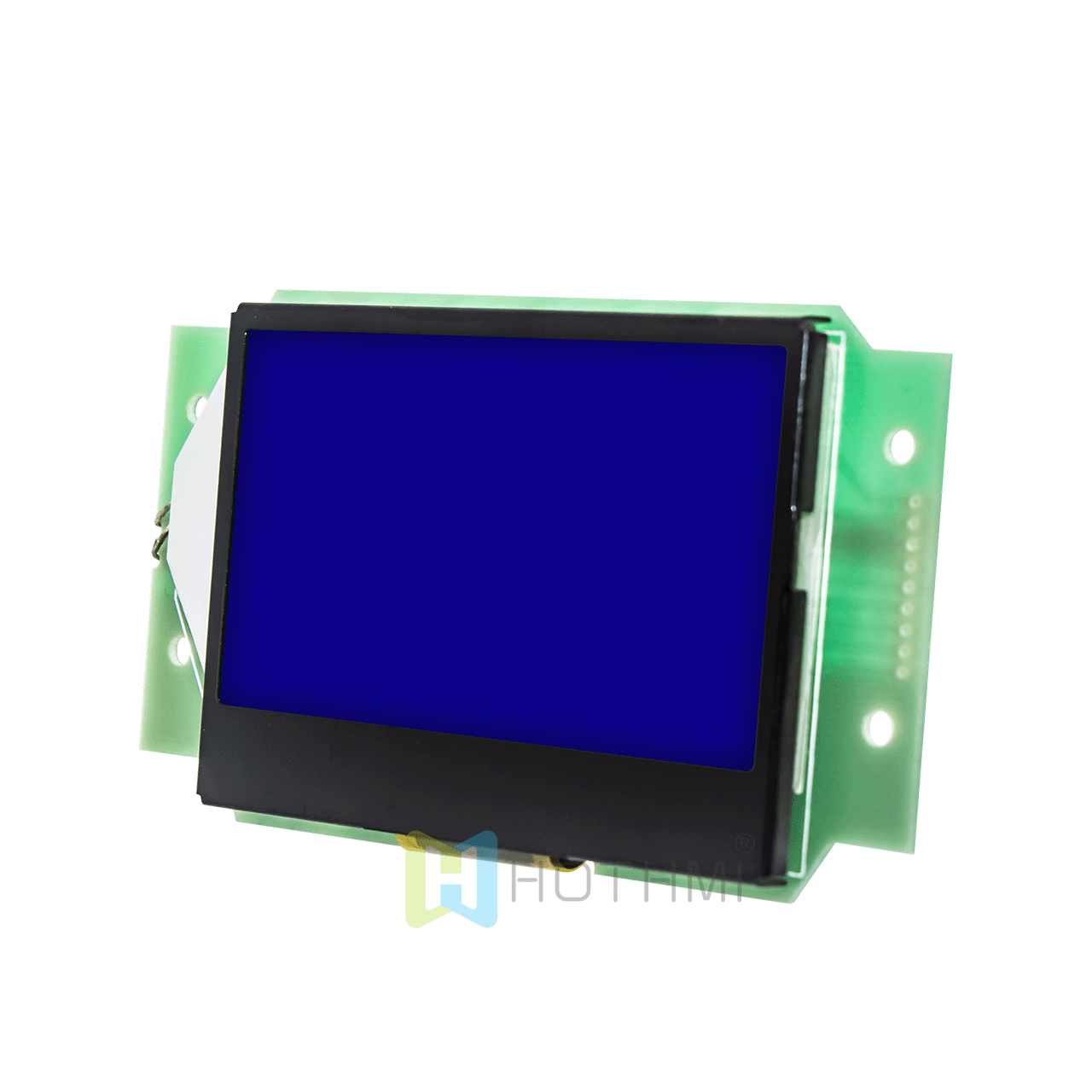

This LCD graphics module HotDisplay128x64 displays white pixels on a blue background.
Hot Display HTM12864-7-25W-A5P is a 128 x 64 LCD that displays white characters on a blue background. This transmissive graphics display operates on a 5V supply voltage. Compact design, blue LCD display, provides you with the best viewing experience and optimal 6 o'clock viewing direction. It operates over a wide temperature range, from as low as -20°C to as high as 70°C. It stands out with its unique side white backlighting, which improves visibility and readability in harsh lighting environments. This LCD display features a built-in ST4565R controller, ensuring high compatibility with a range of interfaces and development boards, including Arduino.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
