1.7"LCD12864 LCD screen/LCM128x64 graphic dot matrix module/white text on black background/multiple language fonts/1.7 inches/DFSTN negative display

1.7"LCD12864 LCD screen/LCM128x64 graphic dot matrix module/white text on black background/multiple language fonts/1.7 inches/DFSTN negative display

▶ Model: HTM12864C-41W-N3S-V06

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

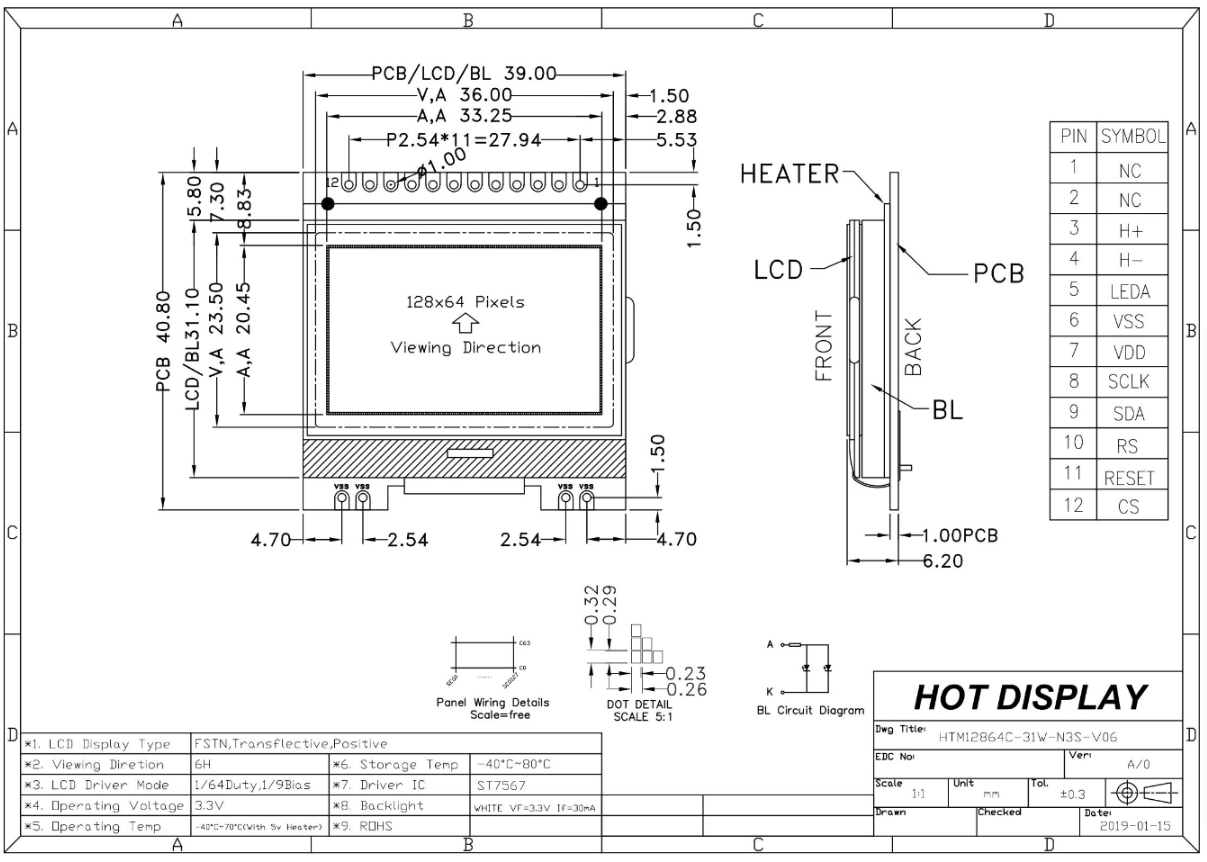

▶ Overall dimensions (mm): 39.0x40.8x6.2
▶ VA size (mm): 36x23.5
▶ AA size (mm): 33.25x20.45
▶ Point spacing (mm): 0.32x0.26
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Backlight/Brightness: White backlight, white text on black background
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -40~70℃
▶ Power supply voltage: 3.3v
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

LCD12864 LCD screen/LCM128x64 graphic dot matrix module/white text on black background/multiple language fonts/1.7 inches/DFSTN negative display

HTM12864C-41W-N3S-V06 is a 1,7-inch 128x64 monochrome dot matrix graphic LCD module with built-in ST7567 controller, SPI serial interface, 5 V V/3,3 V voltage, white LED backlight, brightness can be adjusted through the back resistance. DFSTN type LCD display, negative screen, white text on black background when lit, integrated multi-language fonts. The working temperature is less than 40 degrees to +70 degrees. The headers are connected (optional to purchase and solder to the board). All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for various microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, arm, and Raspberry Pi.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

parameter	Specification content	Unit
model	HTM12864C-41W-N3S-V06
resolution	128 column × 64lines	dots
Module size	39.0（W） × 40.8（H） × 6.2 （D）mm	mm
Visual (VA) area	36 × 23.5mm	mm
Valid (AA) area	33.25× 20.45	mm
Pixel pitch	0.32 × 0.26	mm
IC	KS107+KS108 or compatible
Applied voltage	5.0V	V
backlight	White backlight
display mode	DFSTN negative
Drive mode	1/64 duty cycle
product type	Graphic LCD
characteristic	semi-transparent polarized light
