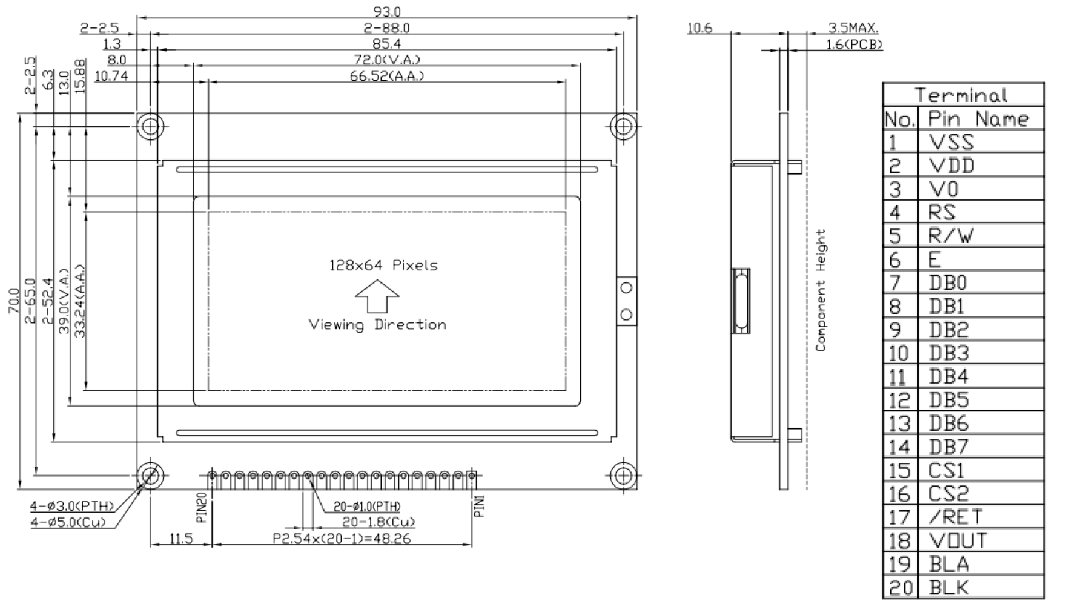

▶ Model: HTM12864B-25W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 93.0 (W) X 70.0 (H) X 14.0 (T)
▶ VA size (mm): 72.0 (W) X 39.0 (H)
▶ AA size (mm): 66.52 (W) X 33.24 (H)
▶ Point spacing (mm): 0.52 (W) X 0.52 (H)
▶ Application: Industrial Control
▶Viewing angle: 6H
▶ Backlight/Brightness: Yellow/Green light
▶ Pin: 20PIN
▶Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0v
▶ Driver chip: KS0108 + KS0107
