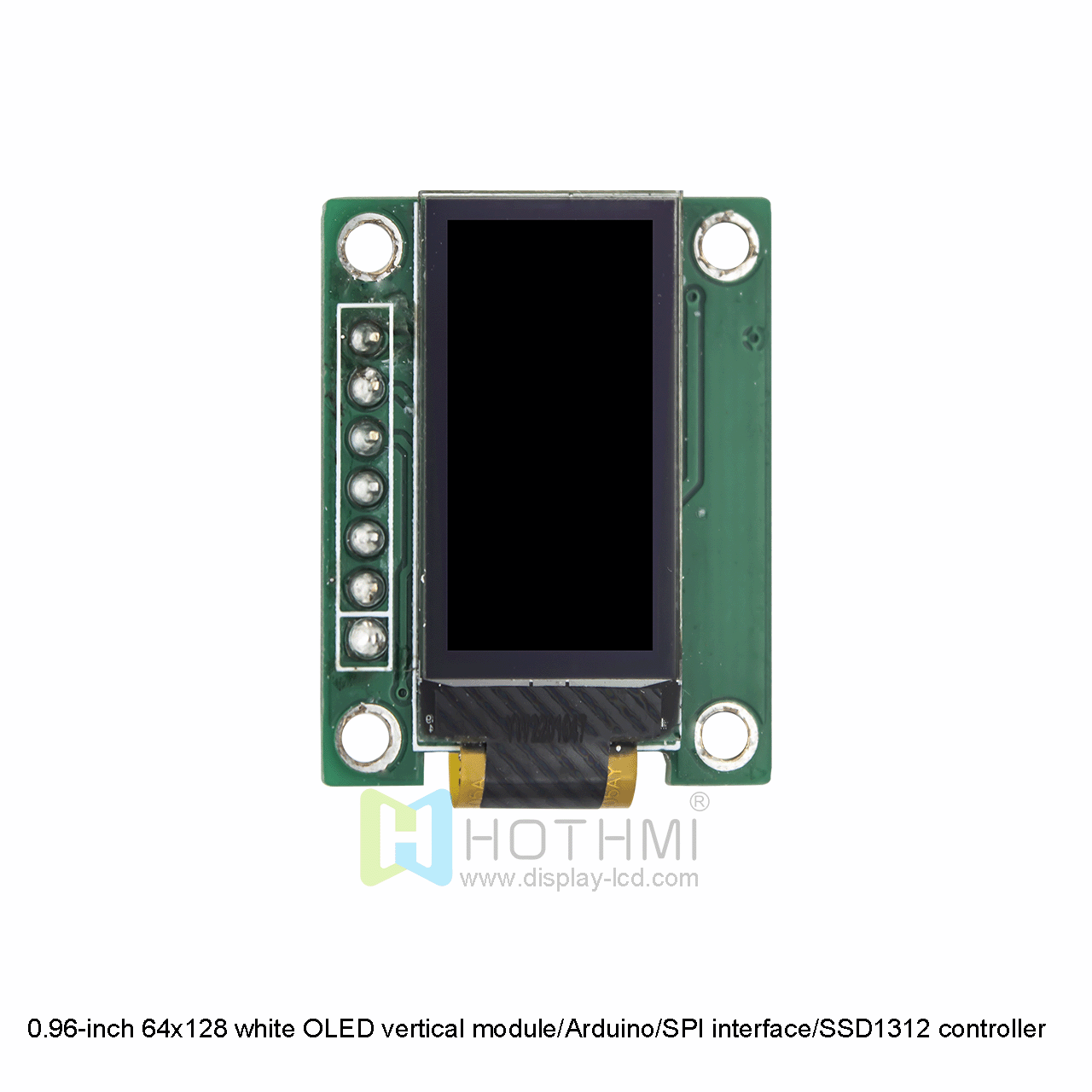

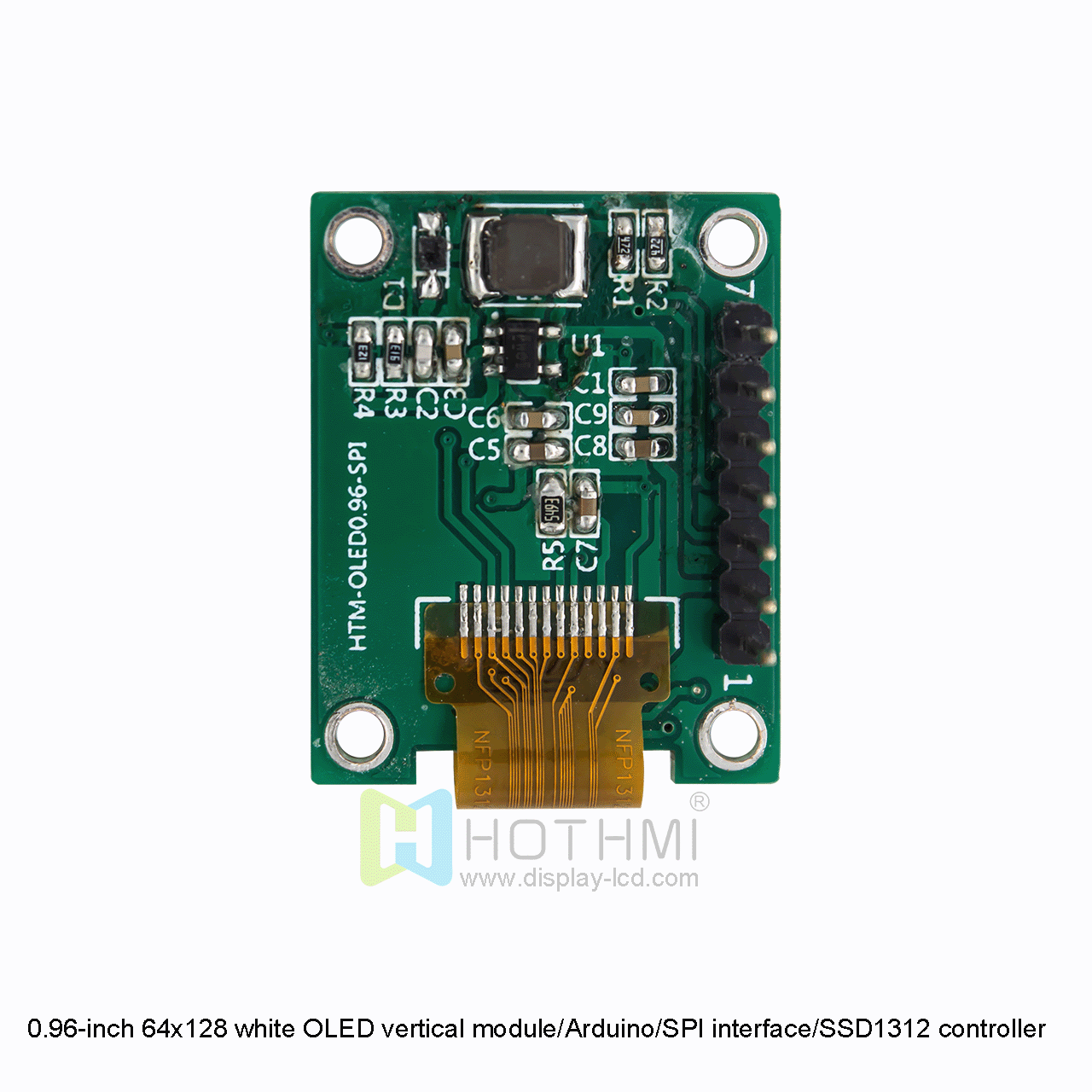

0.96-inch 64x128 white OLED display/graphic dot matrix OLED vertical screen module/Arduino/SPI interface/7-pin connector/SSD1312 controller

0.96-inch 64x128 white OLED display/graphic dot matrix OLED vertical screen module/Arduino/SPI interface/7-pin connector/SSD1312 controller

▶ Model: HTM-OLED096-SPI-W

▶ Display type: Graphic OLED module
▶ Size: 0.96 inches diagonal
▶ Display format: 64x128 pixels
▶ Display color: monochrome white
▶ Appearance (mm): 24.0x30.0x2.42
▶ VA (mm): 11.86X22.74
▶ AA (mm): 10.86X21.74
▶ Dot pitch (mm): 0.17X0.17
▶ Supply voltage: 3.3V
▶ Interface: SPI
▶ Backlight brightness: 90cd/m2
▶ Compatibility: Arduino
▶ Controller model: SSD1312
▶ Operating temperature: -40°C~85°C
▶ Storage temperature: -40°C~90°C
▶ New function: EMI shielding

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

0.96-inch 64x128 white OLED display/graphic dot matrix OLED vertical screen module/Arduino/SPI interface/7-pin connector/SSD1312 controller
This product belongs to OLED. OLED display technology is self-luminous and is designed to provide high visibility and ensure easy reading from any angle in different environments. This model has a resolution of 64x128 and belongs to a graphic OLED display. The viewing effect has a high contrast and presents bright white graphics on a deep black background. This product display is designed as a vertical screen for adaptation products. We also have yellow, green and blue options for the same product. With this OLED, you can expect the fastest response time. It is a passive matrix display with a built-in SPI interface option, which is fully compatible with Arduino and integrates seamlessly with many different electronic systems for a variety of applications. The display also comes with a 7-pin connector and a built-in SSD1312 controller. The HTM-OLED096-SPI-W model is designed to withstand extreme working conditions and performs well when used in a temperature range of -40 to 85 degrees Celsius. It requires 3.3V power to operate and is RoHS compliant.

Highlights: 1. Self-luminous display, no backlight required, low power consumption.
2. Display color contrast is sharp.
3. With driver board, easy to use.
4. Structural features: vertical screen.

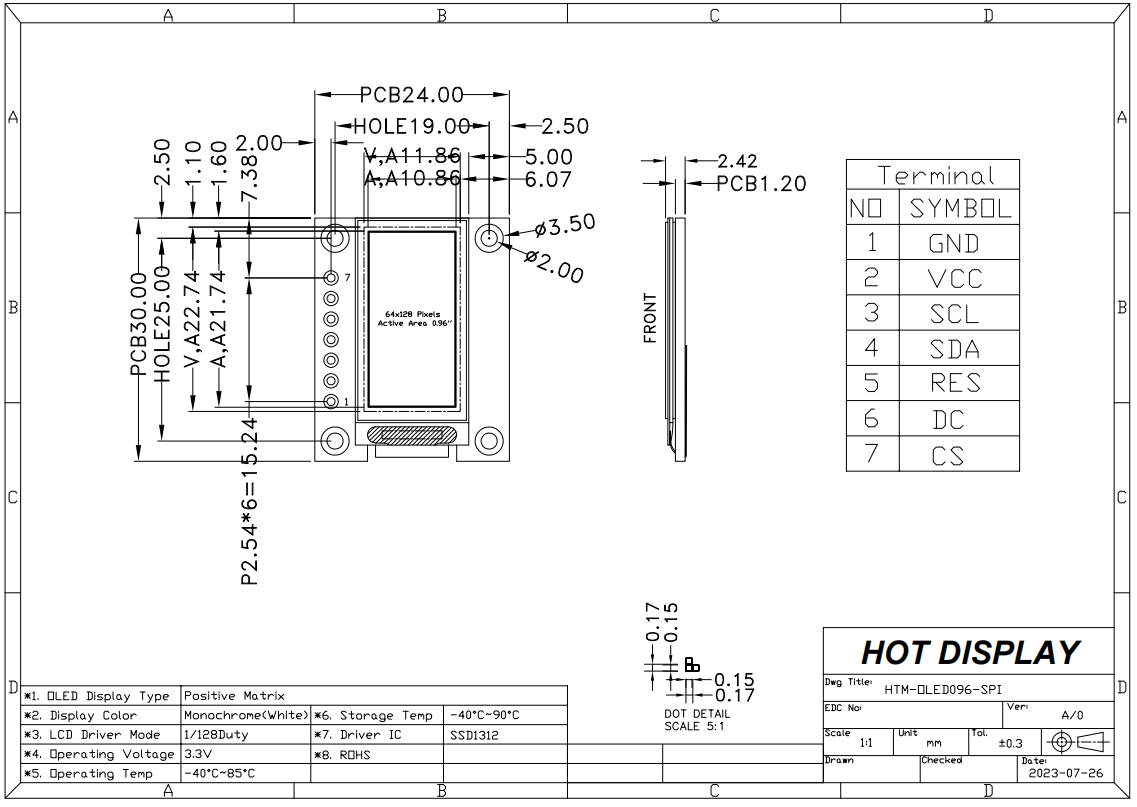

ITEM	Parameter Description	UNIT
OLED Model	HTM-OLED096-SPI-W
Diagonal Size	0.96”	“
Pixels	64x128	Dot
Appearance Size	24.0X30.0X2.42	mm
VA Size	11.86X22.74	mm
Active Area (AA)	10.86X21.74	mm
Dot Pitch	0.17X0.17	mm
Supply Voltage	3.3	v
Driver IC	SSD1312
Drive Mode	1/128 duty
Interface	SPI
Type	Oled Module
Display Color	White
Operating Temperature	-40°C~85°C	℃
Storage Temperature	-40°C~90°C	℃
