8.0 Inch TFT LCD Screen module | 1024x768 Raspberry Pi TFT Module

8.0 Inch TFT LCD Screen module | 1024x768 Raspberry Pi TFT Module

▶ Model: HTM-H080A2-HI A03

▶ Type: 8.0 Inch TFT LCD Screen module
▶ Display pixel: 1024x768
▶ Display inch: 8.0 inches
▶ Exterior dimensions: 203.0x161.0x21.8
▶ AA size (mm): 162.05x121.54
▶ Application: Instrumentation, portable electronic devices
▶ Perspective: IPS Full View
▶ Backlight/Brightness: 800cd/m2
▶ Interface method: VGA
▶ Special note: Anti static ESD 8KV
▶ Working temperature:- 20~70℃
▶ Supply voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Product Description
Specification
Attributes

8.0 Inch TFT LCD Screen module | 1024x768 Raspberry Pi TFT Module

8.0 Inch TFT LCD Screen module is an 8.0-inch industrial grade TFT LCD display, available in two versions: the basic version (HTM-H080A2-HDMI-A03) and the touch screen version with USB capacitor (HTM-H080A2-HDMI-A03C), to meet different user needs.

Core Features
High definition display: adopting XGA resolution (1024 × 768 pixels), supporting 16.7M colors, contrast ratio of 500:1, brightness up to 800 cd/m ² (650 cd/m ² for touch screen version), ensuring clear and vivid images.

Multi interface compatibility: Supports dual signal input of HDMI 1.4a and VGA (requires switching), and is equipped with a 5-point touch capacitive screen with USB Type-C interface (optional), making operation sensitive and convenient.

Industrial grade durability: Operating temperature range of -20 ℃ to 70 ℃, storage temperature of -30 ℃ to 80 ℃, backlight life of up to 30000 hours, suitable for long-term high-intensity operation.

Flexible installation: Embedded design only requires 4 screws to fix, providing OSD menu Chinese English switching function, which can quickly adjust display parameters to the best state.

Application scenarios
Suitable for industrial control, medical equipment, automation systems, and embedded terminals, compatible with mainstream operating systems such as Windows and Linux.
precautions
To avoid image residue, it is recommended to display fixed patterns for no more than 2 minutes or use a dynamic screensaver. The power input is DC 9-12V/1A, and the polarity must be correct (positive inside and negative outside).
This 8.0 Inch TFT LCD Screen module monitor is an ideal choice in the industrial display field due to its high reliability, ease of use, and versatility.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H080A2-HDMIA03	April 04, 2025	4.27MB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H080A2-HDMIA03
Diagonal size	8.0”	Inch
Resolution	1024x768	Dot

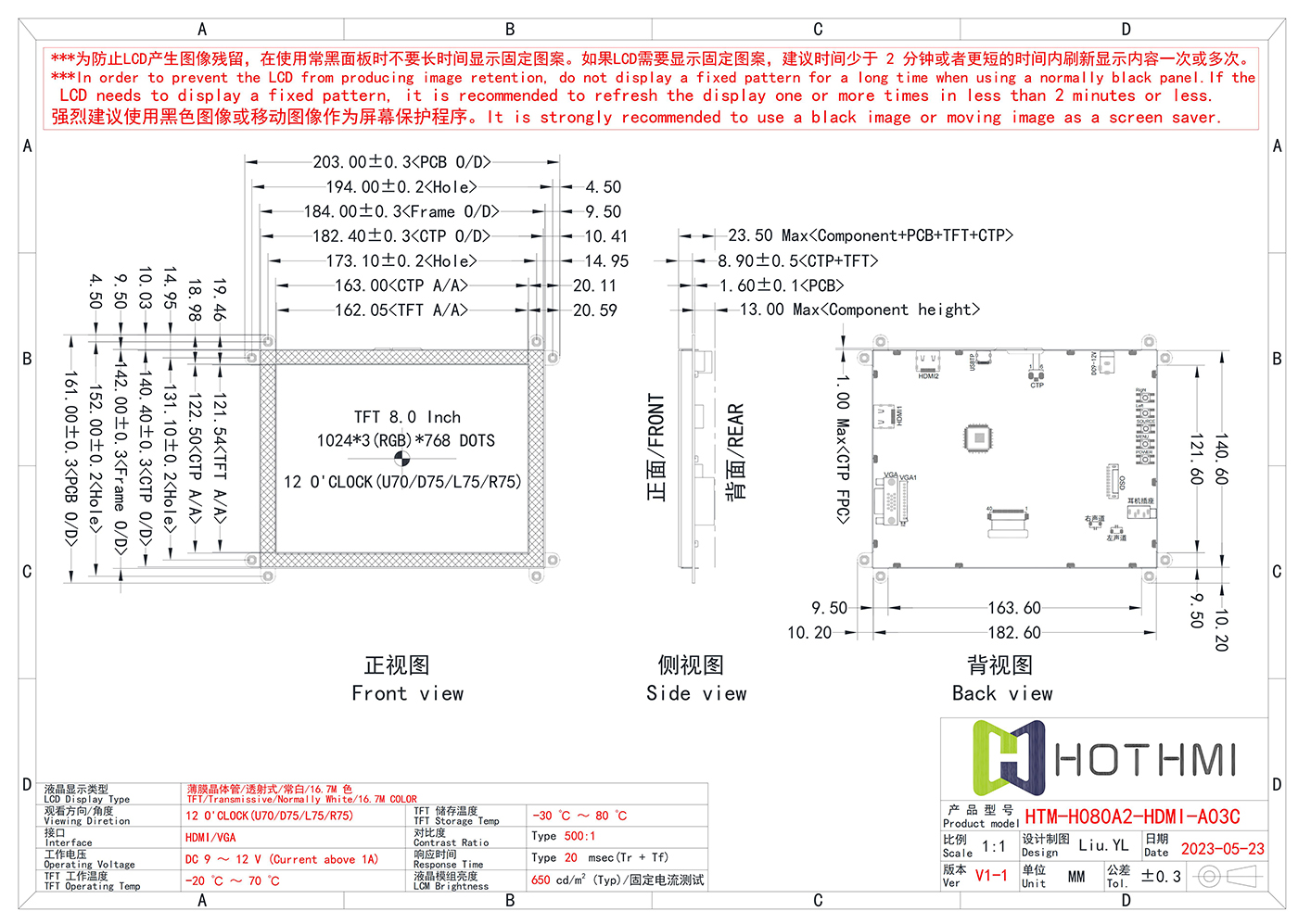

Dimensions	203.0x161.0x21.8	mm
Active area (AA)	162.05x121.54	mm
LCD type	TFT LCD Screen module	mm
Display viewing angle	Full View
Aspect ratio	4:3
Backlight type	LED white
TFT driver IC	-
Brightness	800	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
