1.3" 132X32 Graphic COG LCD Module | SPI Interface | FSTN+ | Gray Text on White Background | 3.3v | ST7567

1.3" 132X32 Graphic COG LCD Module | SPI Interface | FSTN+ | Gray Text on White Background | 3.3v | ST7567 | Arduino

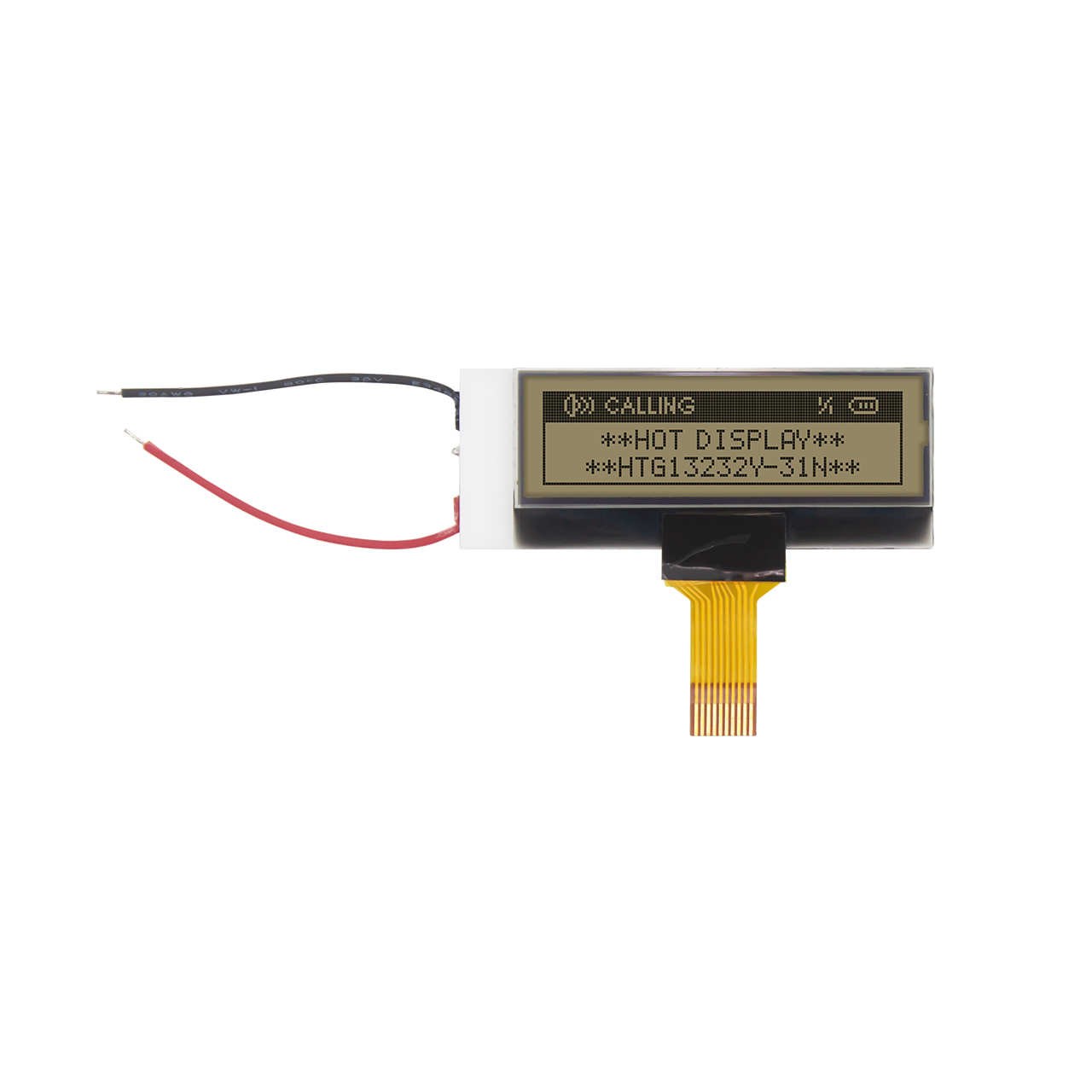

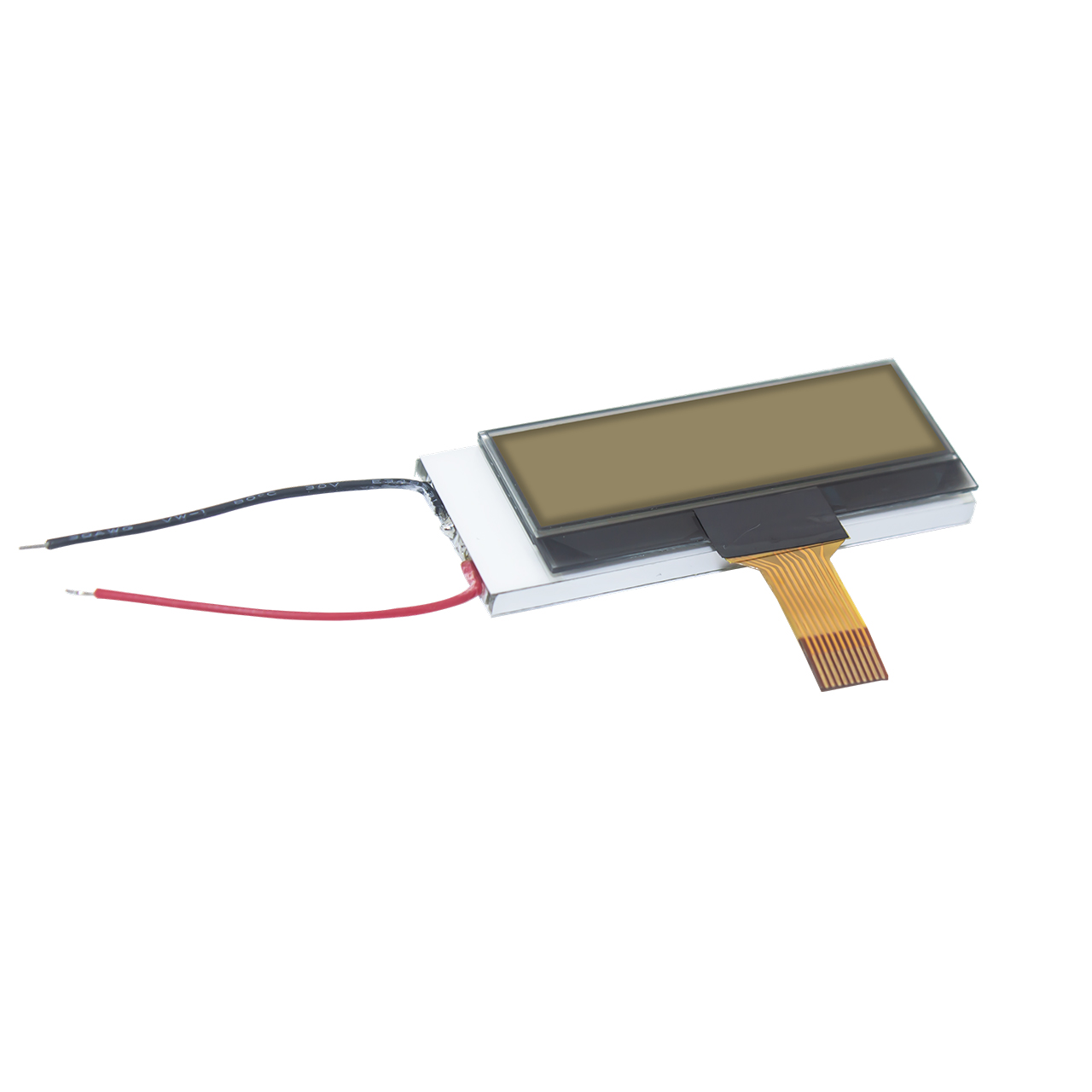

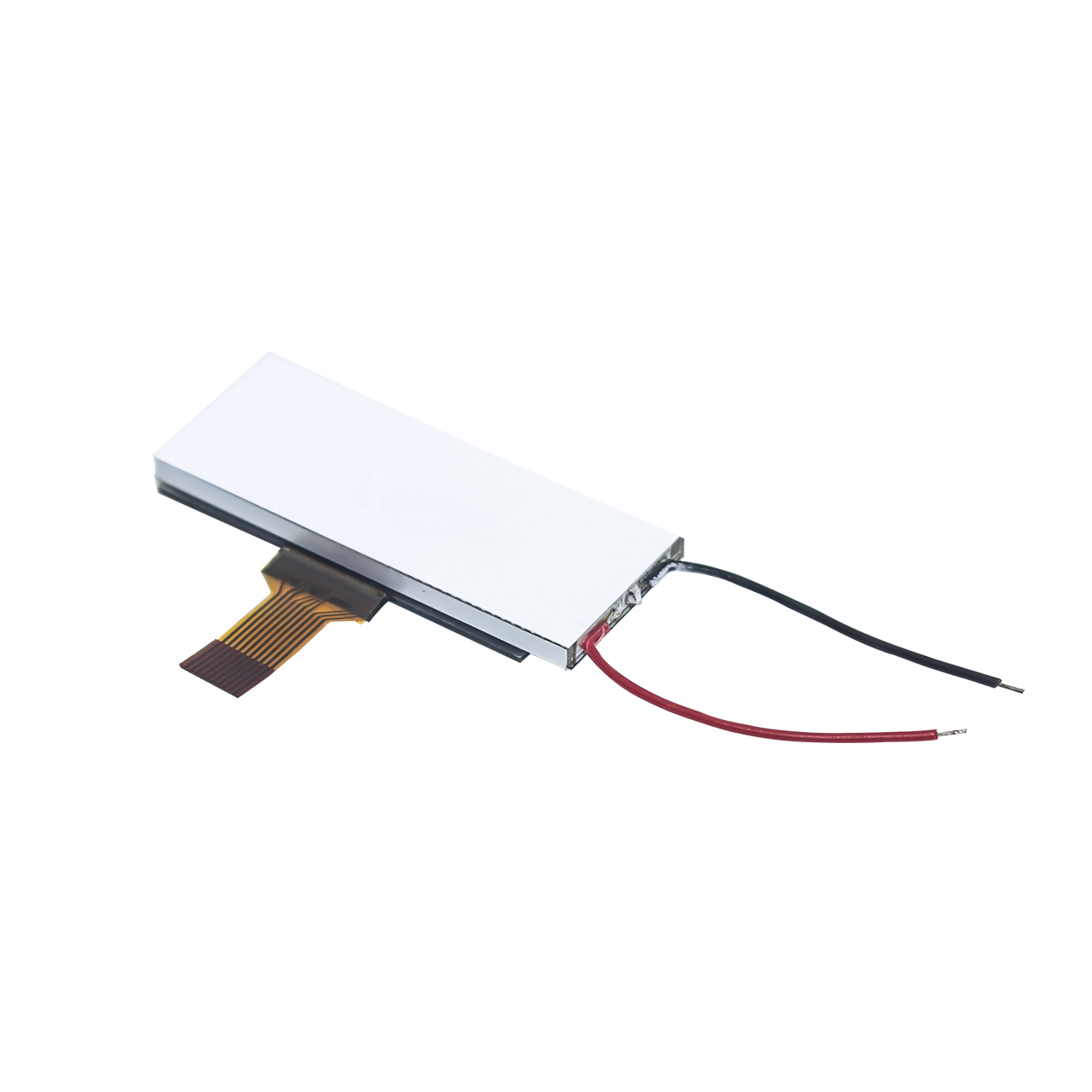

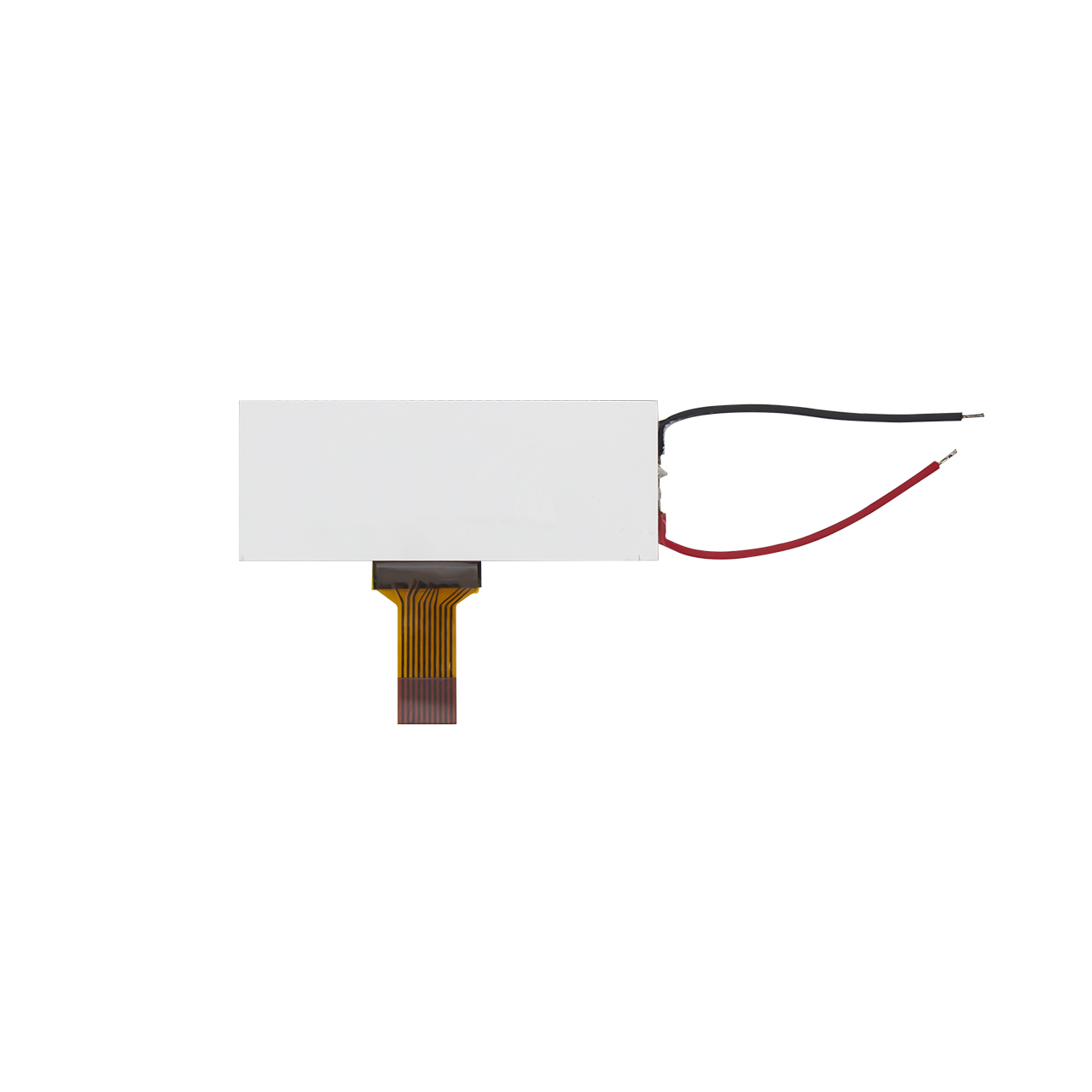

▶ Model: HTG13232Y-31W-10H10-V05

▶ Type: COG graphic module
▶ Display pixels: 132x32
▶ Dimensions (mm): 34.5*15*1.7
▶ VA size (mm): 31.9*9.5
▶ AA size (mm): 29.02*7.02
▶ Dot pitch (mm): 0.22*0.22
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FPC-10 PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567
