LCD and CTP Interface Introduction-LVDS Interface

There are several ways of connecting MCU (Microcontroller Unit) or MPU (Microprocesser Unit) or CPU (Central Processing Unit) with LCD, LVDS interface is one of them.

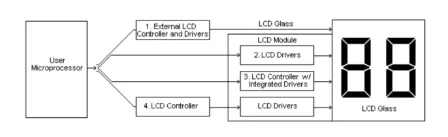

Fig. 1 Connection Between MCU to LCD


Basic knowledge introduction (1):LCD Driving Waveform

LCD can’t be driven with DC (Direct Current), it has to be driven with AC (Alternative Current) and the overall current has to be ZERO. Otherwise, the Liquid Crystal Material will be damaged sooner or later.

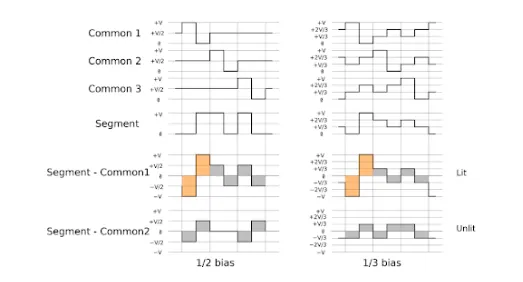

Fig. 2 LCD Driving Waveform


Basic knowledge introduction (2):LCD Controller vs Driver

There are two types of Driver IC’s, Common Drivers and Segment Drivers. Common Drivers output signals to create the rows or numbers of lines. The Segment Drivers output the necessary signals to create the characters or columns.

The Controller IC receives data written in ASCII or JIS code from the MPU and stores this data in RAM. This data is then converted into serial character patterns and transferred to the LCD driver IC.

Drive/Controller IC is probably the most commonly found in a graphics module. This IC receives data from the MPU and stores it in RAM. Also, it accepts commands directly from the MPU for both the common and segment drivers.


LVDS Interface

  • LVDS (Low-voltage differential signaling) is an electrical digital signaling standard that can run at very high speeds over inexpensive twisted-pair copper cables.

  • Most used in big panels (>7”)

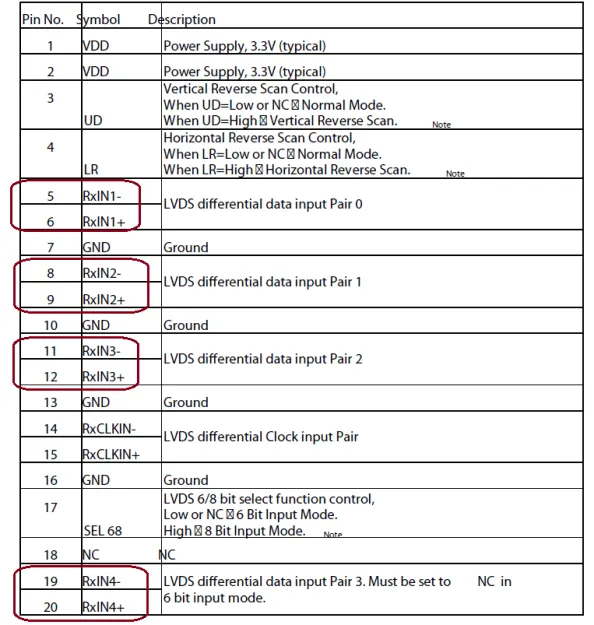

Fig. 3Example of LVDS Interface

For LVDS related products, you can also find it here.
