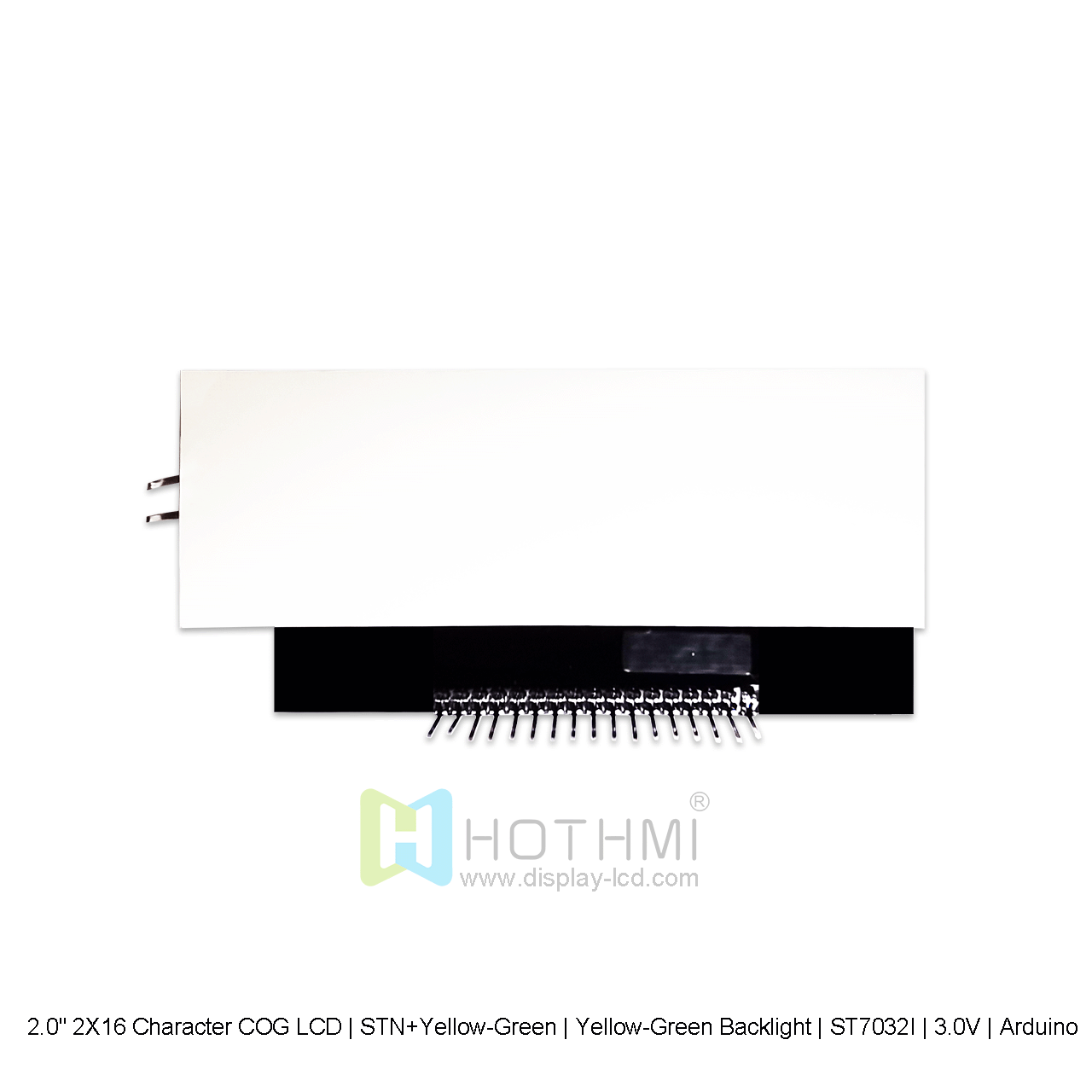

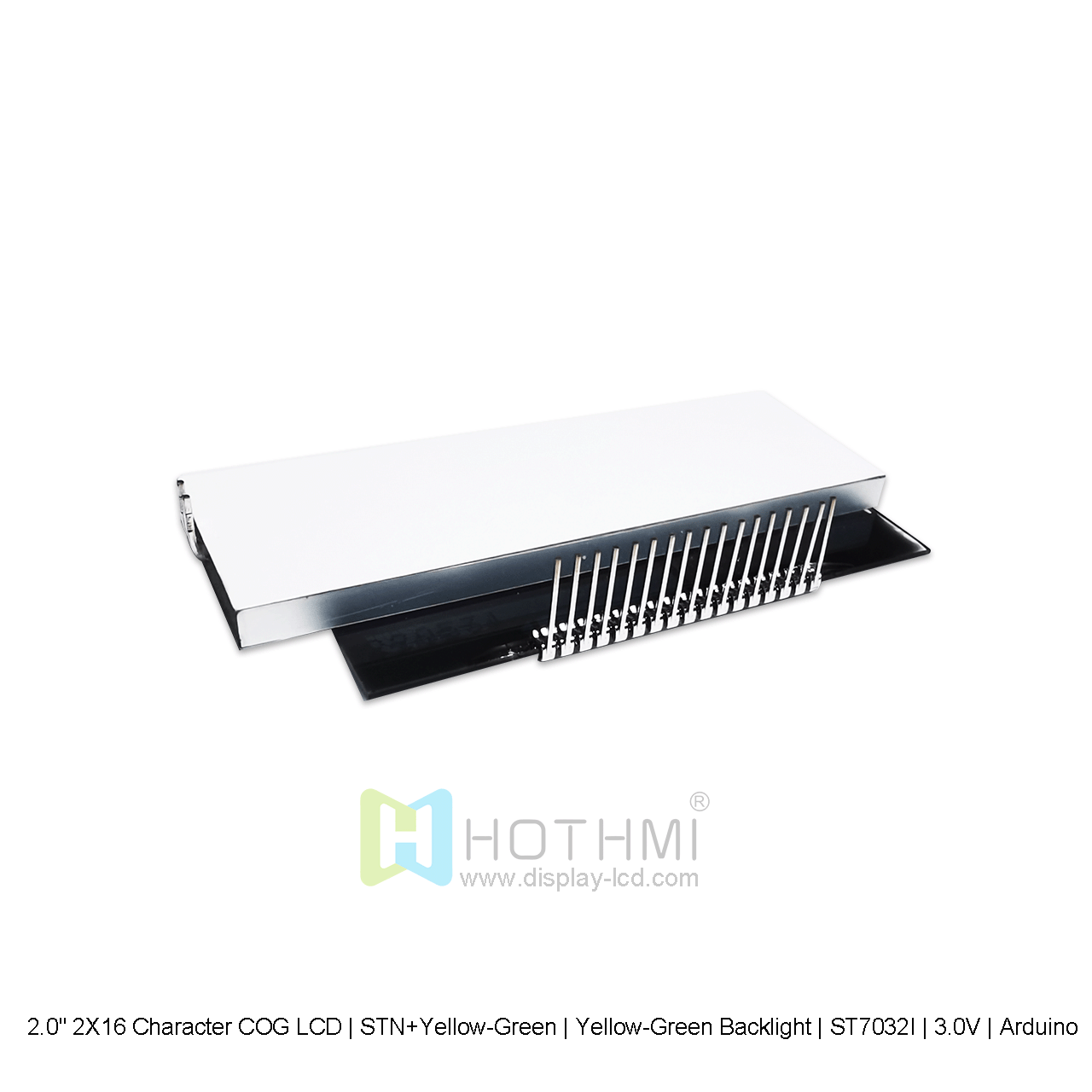

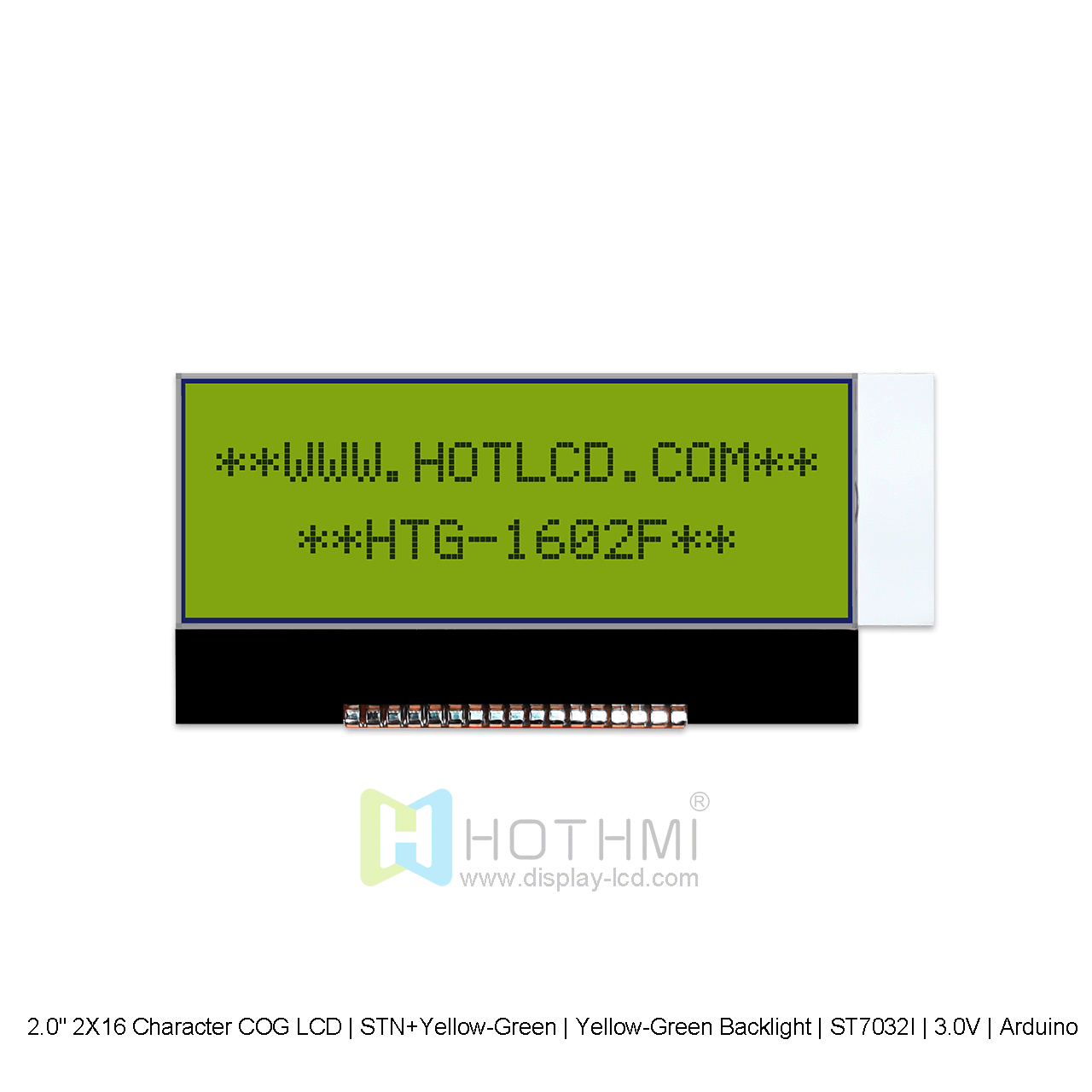

2.0" 2X16 Character COG LCD | STN+Yellow-Green | Yellow-Green Backlight | ST7032I | 3.0V | Arduino
2.0" 2X16 Character COG LCD, this 16x2 character chip-on-glass (COG) LCD displays dark pixels on a yellow-green background. This transflective STN positive LCD is visible in ambient light or backlight. In ambient light, the display content is clearly visible due to the reflective effect of the polarizer, reflecting the image to the viewer. In dark environments, the display has a backlight, which allows the viewer to clearly see the display content. As a COG display, there is no PCB, and the controller/driver is bonded directly to the glass of the display. The LCD offers a wide operating temperature range from -20 to 70 degrees Celsius. This built-in ST7032D controller. The display features a 6:00 optimal view, 4-bit/8-bit parallel interface, operates at 5.0V supply voltage and is RoHS compliant.
Customized LCD size: Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires sophisticated manufacturing technology and equipment. Support customization within 396*345mm. |
Customized dot matrix and display icon content: Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs. |
Customized backlight color and structure: There are multiple combinations of module backlight to choose from, no backlight or with yellow-green/blue/white/amber/red/RGB backlight, up to 48 effects, you can click on the customization page for reference. |
Customized interface: Provides a variety of interface options, SPI\I8080\I2C, etc. |
Driver board customization: Supports adjustment of driver board size, component sorting, interface type, etc. |
