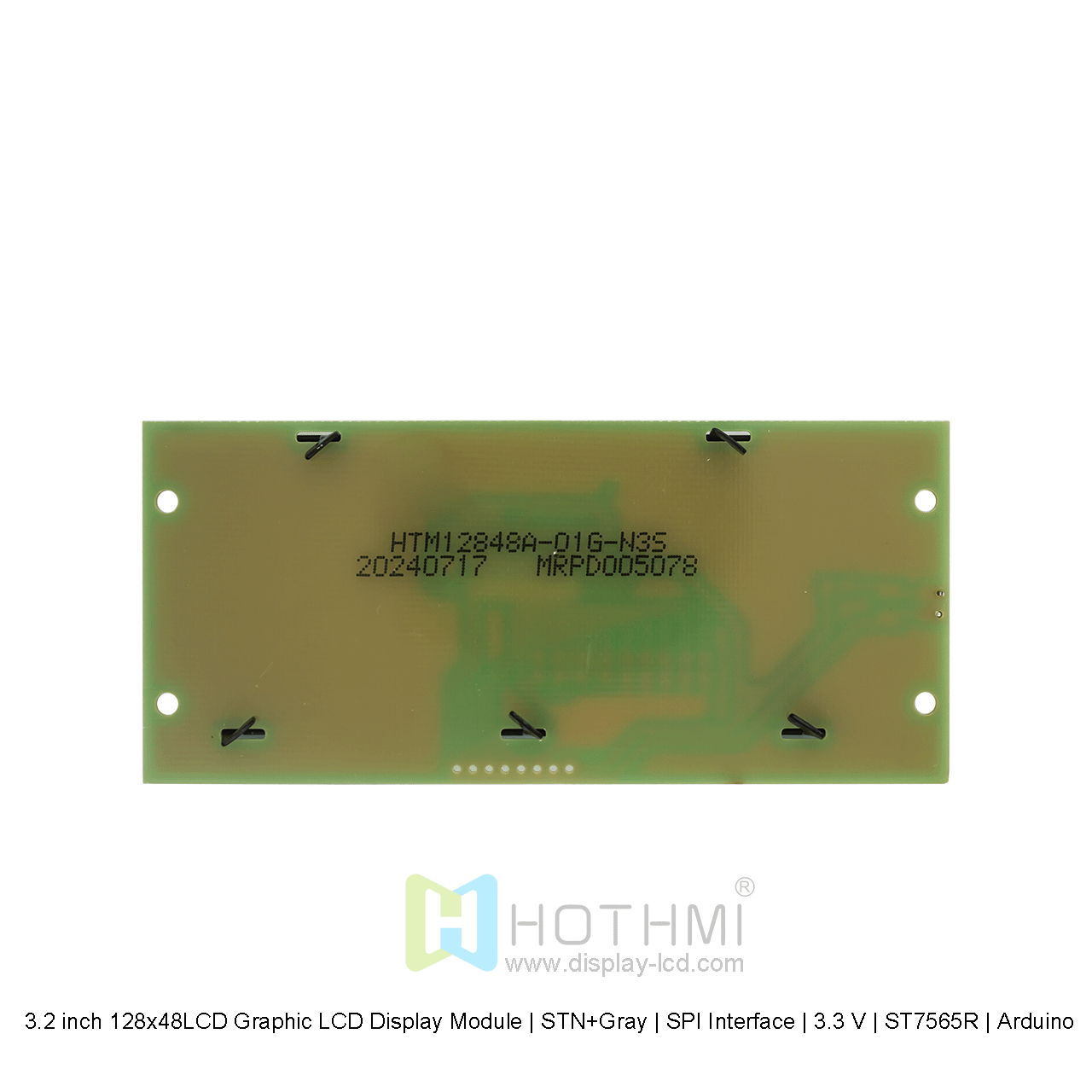

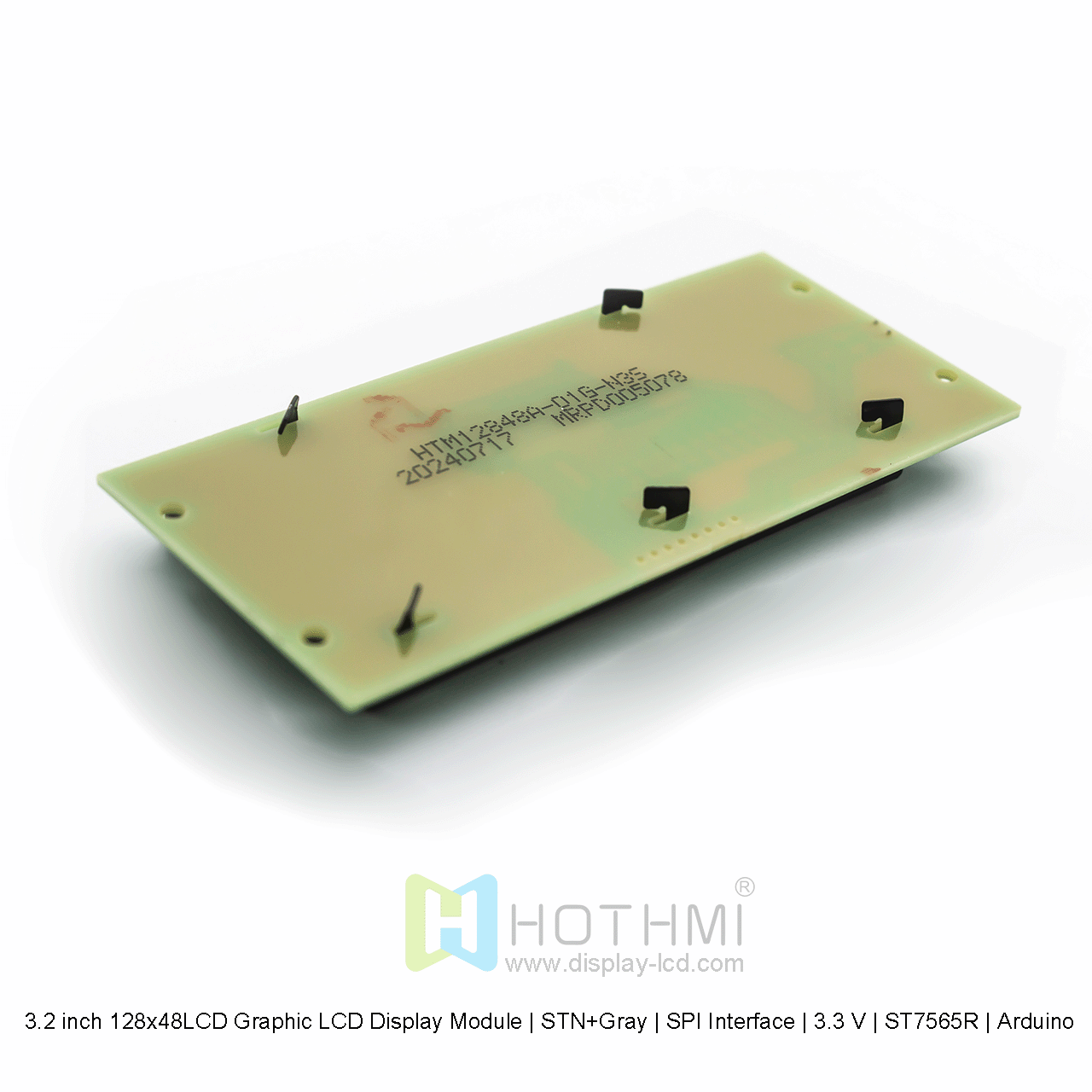

3.2 inch 128x48LCD Graphic LCD Display Module | STN+Gray | SPI Interface | 3.3 V | ST7565R

3.2 inch 128x48LCD Graphic LCD Display Module | STN+Gray | SPI Interface | 3.3 V | ST7565R | Arduino

▶ Model: HTM12848A-11Y-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 128x48
▶ Overall dimensions (mm): 100.3x45.0x12.5
▶ VA size (mm): 75.8x29.0
▶ AA size (mm): 66.52x24.92
▶ Point spacing (mm): 0.52x0.52
▶ Application: welding machine
▶ Viewing angle: 6H
▶ Backlight type: yellow-green light
▶ PIN: 8PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~80℃
▶ Power supply voltage: 3.3v
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

3.2 inch 128x48LCD Graphic LCD Display Module | STN+Gray | SPI Interface | 3.3 V | ST7565R | Arduino

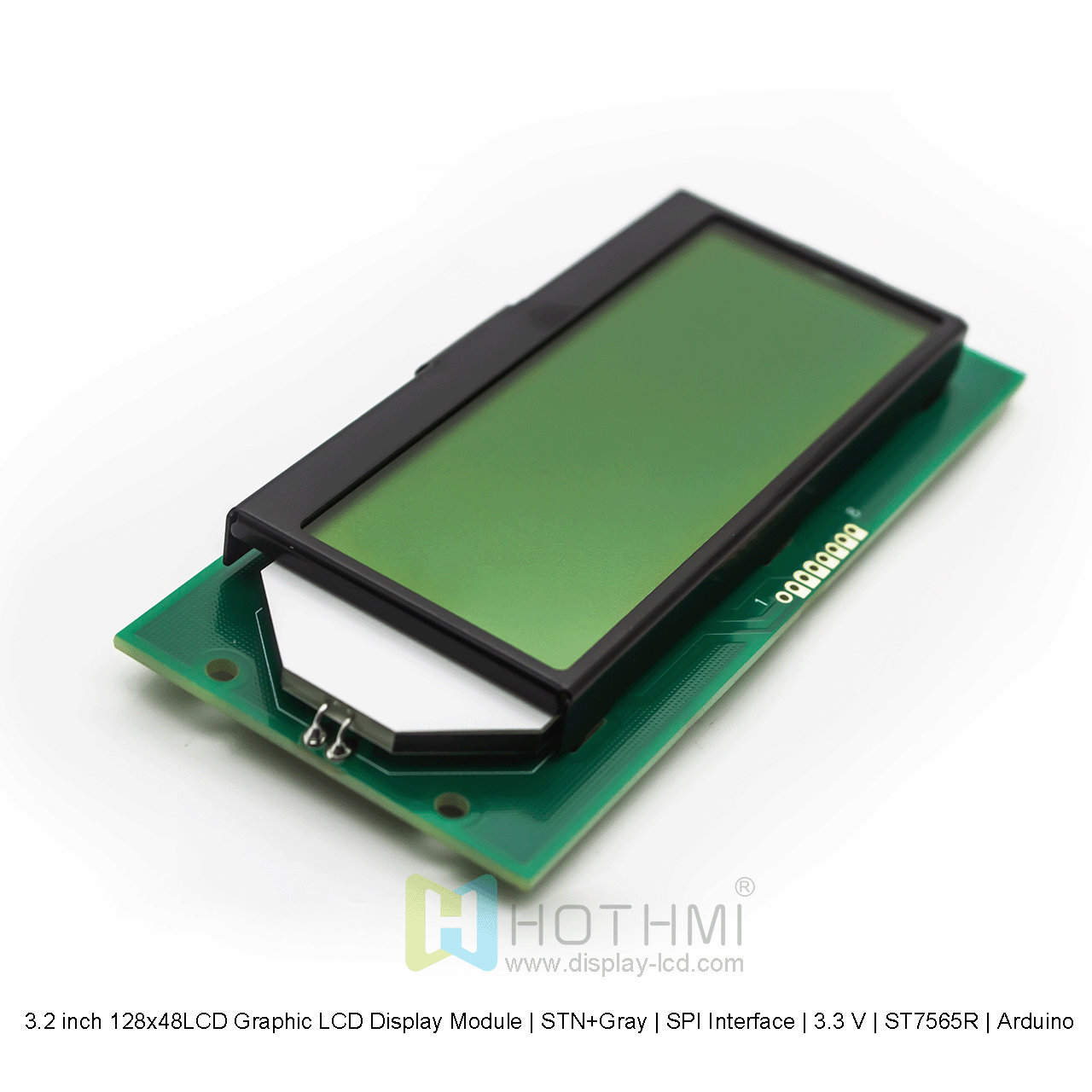

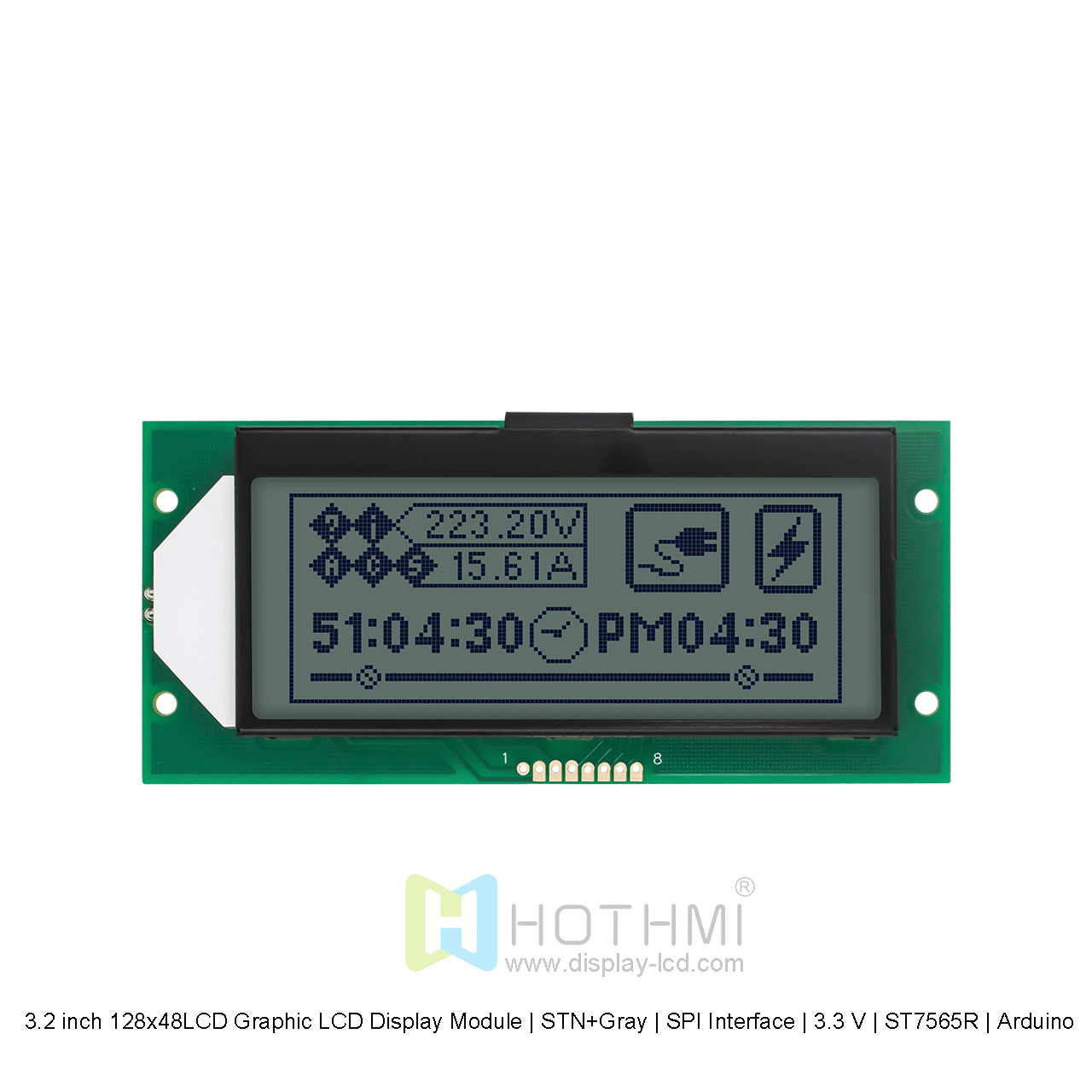

3.2 inch 128x48LCD Graphic LCD Display Module, illuminates dark gray pixels on a yellow-green background. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, based on the reflectivity of the polarizer, the image is reflected to the viewer, making it easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 5.0V, and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

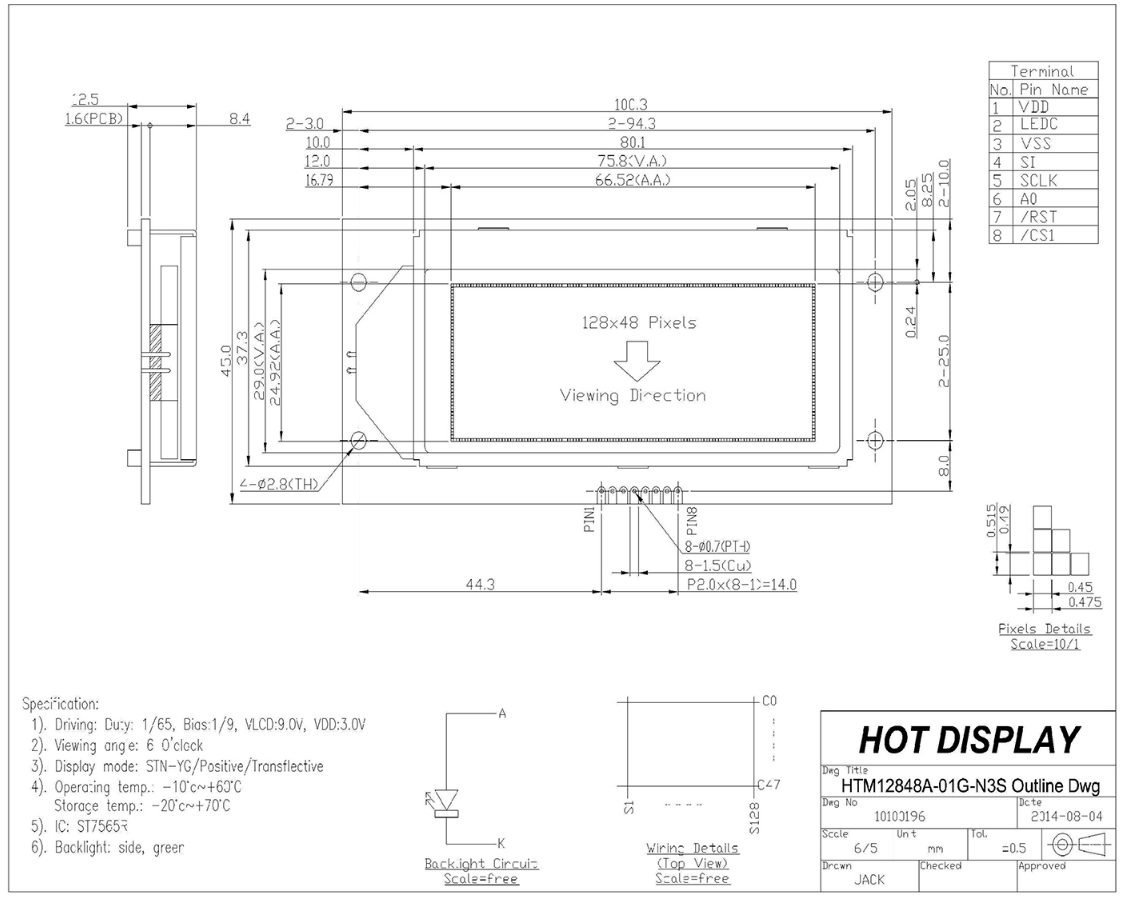

Item	Parameter content	Unit
Model	HTM12848A-11Y-A5P
Resolution	128 × 48	dots
Module size	100.3x 45.0 x 12.5 (MAX)	mm
Viewable (VA) area	75.8 x 29.0	mm
Active (AA) area	66.52 x 24.92	mm
Pixel pitch	0.52 x 0.52	mm
IC	ST7565R
Applied voltage	5V	V
Backlight	Yellow-green
Display mode	STN(+)
Drive mode	1/48 duty cycle
Product type	Graphic LCD
Features	Transflective
