1.5 Inch Round TFT LCD Display | 360x360 Resolution With ST77916 Controller

1.5 Inch Round TFT LCD Display | 360x360 Resolution With ST77916 Controller

▶ Model: TFT-H015A05ZNIST3N10

▶ Type: TFT round screen
▶ Display pixel: 360x360 dot matrix
▶ External dimensions (millimeters): 39.3x40.96x1.6

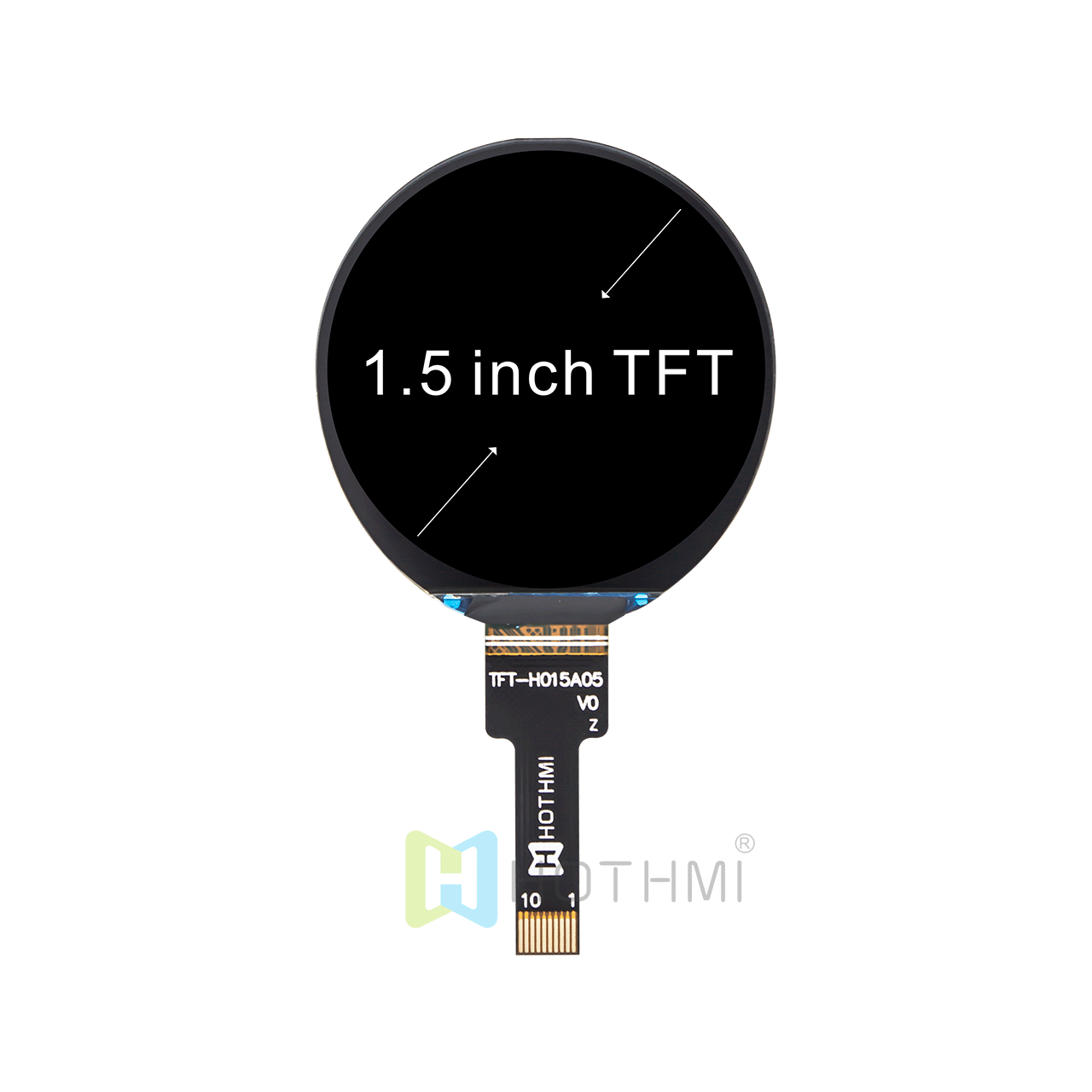

▶ Display inches: 1.5"
▶ Effective size (millimeters): 37.3x37.3
▶ Application: C8051/Arduino/STM32
▶ Perspective: IPS (U80/D80/L80/R80)
▶ Brightness: 300cd/m2
▶ Pin: FPC-10PIN
▶ Interface: SPI-4L
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -30~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST77916

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

STM32-SPI-10PIN+MCU-40Pin main control board
EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
ESP32-C3 driver board/SPI-10 pin
EZUI Universal Adapter Board-10PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
EZUI-H serial port driver board-SPI interface universal

Product Description
Customized Services
Attributes

TFT-H015A05ZNIST3N10 | 1.5 inch IPS circular TFT LCD screen | SPI interface | 360x360 dot matrix LCD screen | optional capacitive touch/resistive touch

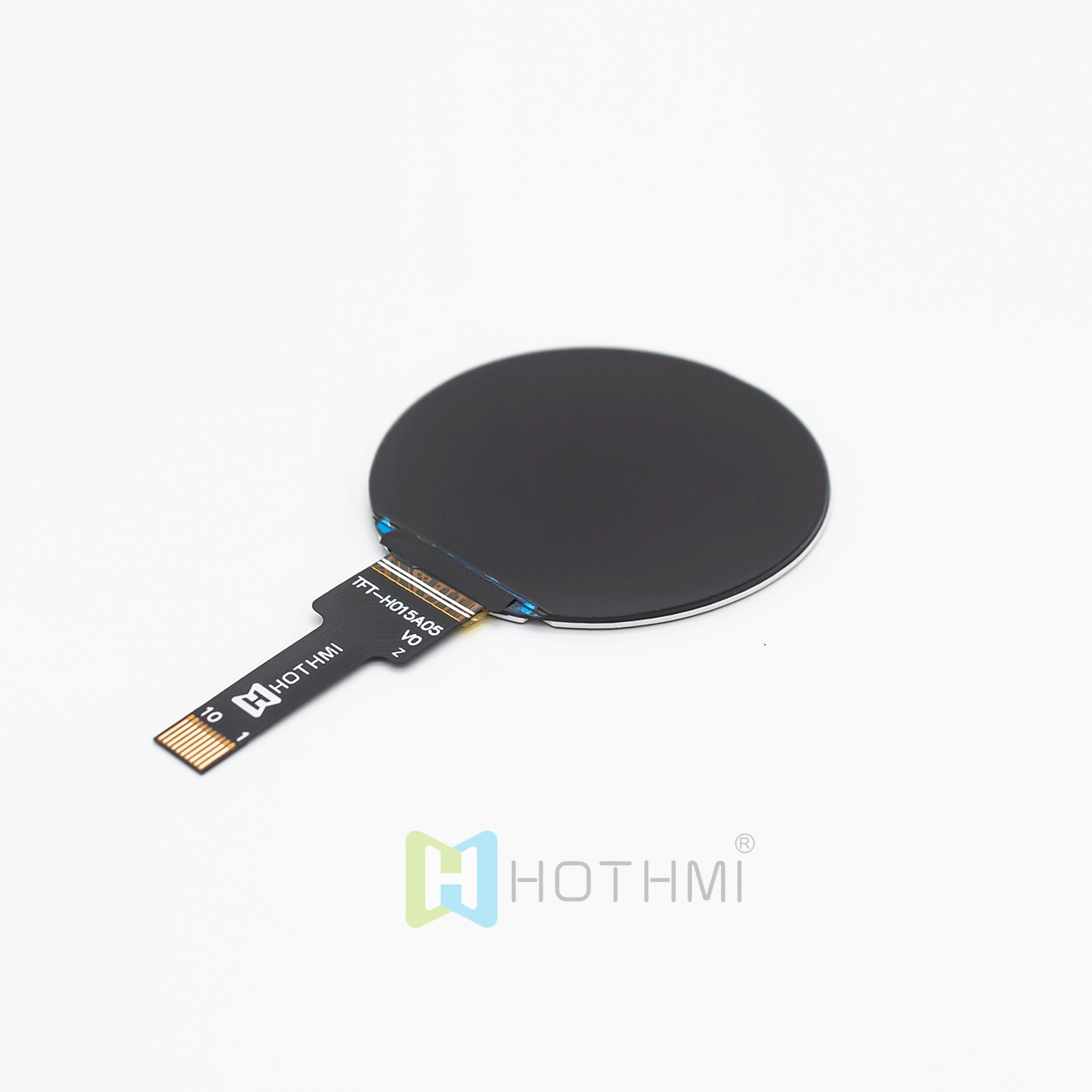

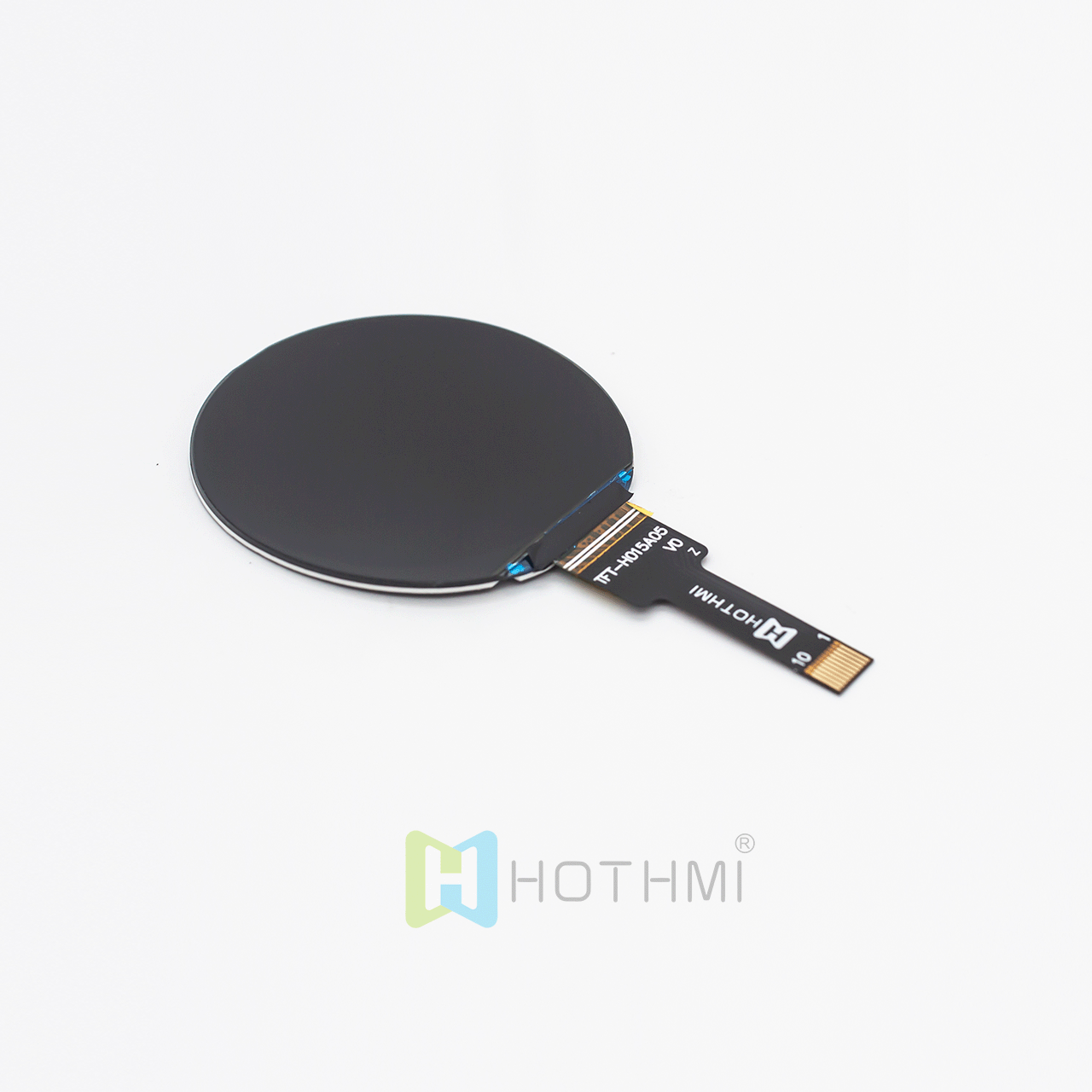

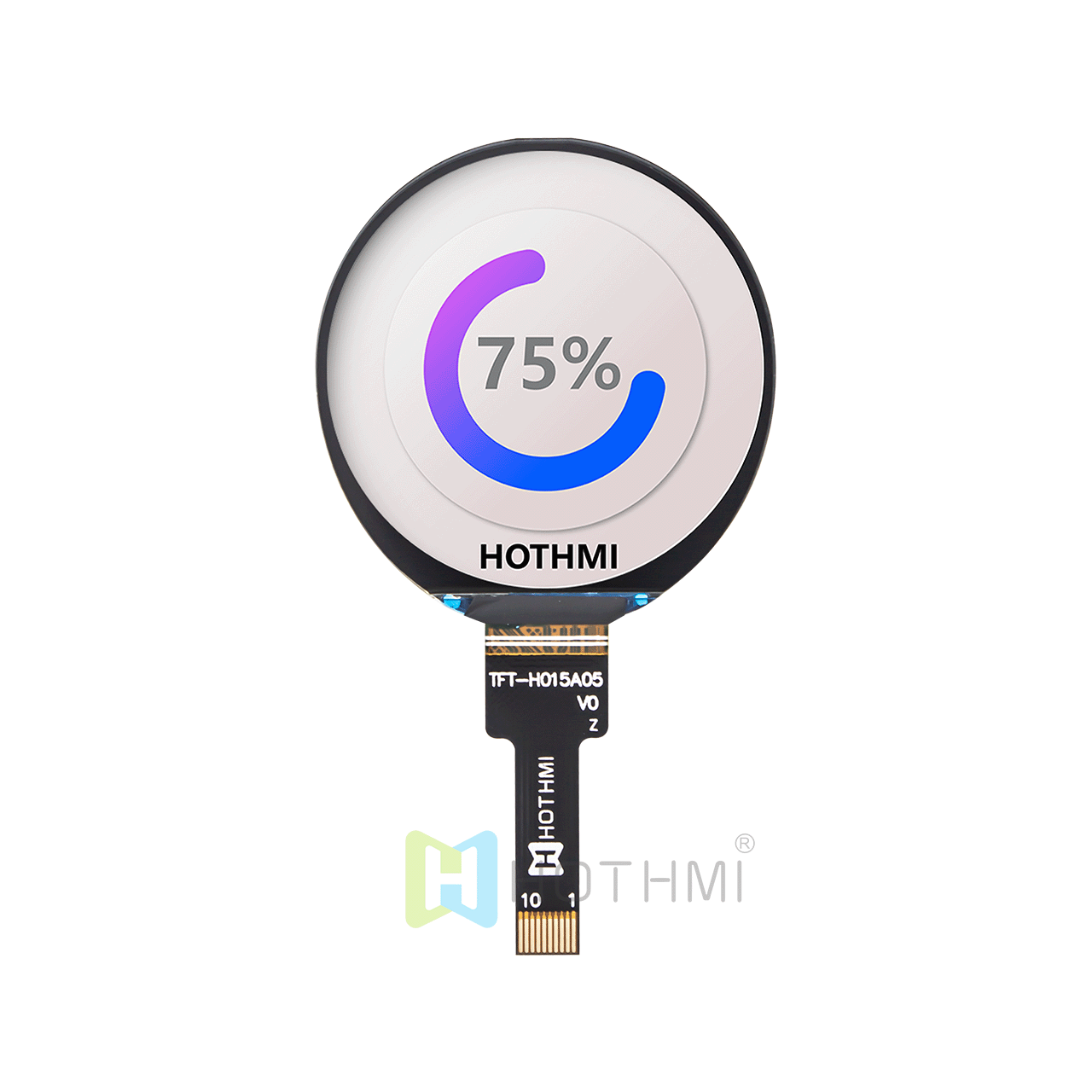

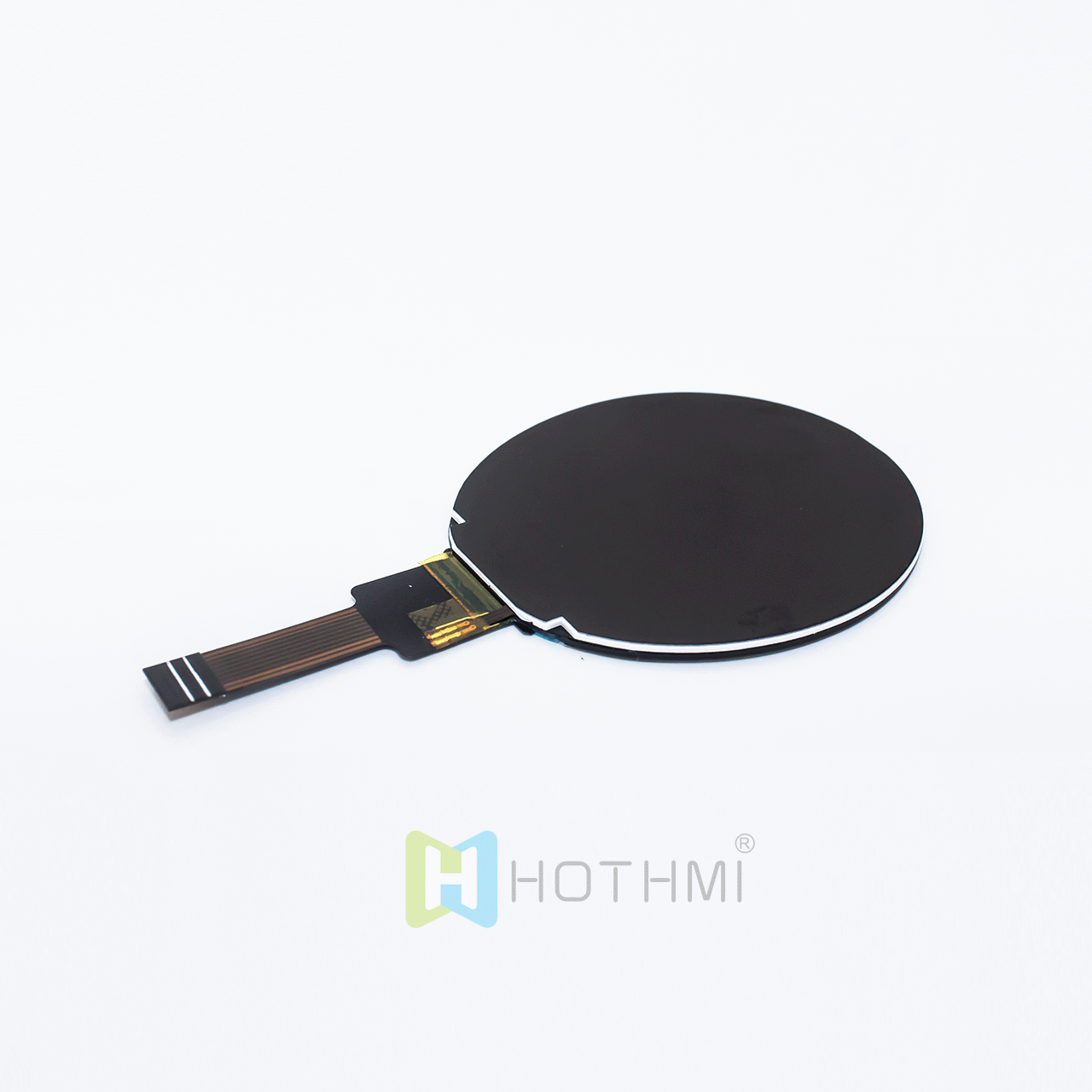

The TFT-H015A05ZNIST3N10 is a 1.5-inch circular color LCD module with a 360x360 resolution. Its refined display area, moderate brightness, and IPS (Instrumental Display Panel) wide color gamut across a wide viewing angle ensure high-definition, high-quality images. Its black back protects the display from light loss. It features a built-in ST77916 controller and is compatible with microcontroller development platforms such as the 8051 PIC, AVR, Arduino, ARM, and Raspberry Pi.

This model comes with an FPC connector and does not include a driver board. Users can connect to the control board via the FPC connector or soldering, making assembly and disassembly simple. A 10-pin SPI interface allows for flexible and easy development. This industrial-grade display operates in a -30°C to 80°C temperature range, ensuring operation in harsh environments. It is suitable for industrial equipment, home appliances, handheld devices, and more.

All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, meters, and smart devices.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	Standard TFT circular
Diagonal size	1.5 "	Inch
Resolution	360 x RGB x 360 (TFT)	dots
Dimensions	39.3x40.96x1.6	mm
Effective area (AA)	37.3x37.3	mm
LCD type	Circular TFT module
Display perspective	80/80/80/80 (IPS)
Aspect ratio	1: 1
Backlight type	LED, white
TFT driver IC	ST77916
Touch panel	-
Surface	Bright surface
Brightness	three hundred	cd/㎡
Operating temperature	-30~+80	°C
Storage temperature	-30~+80	°C
