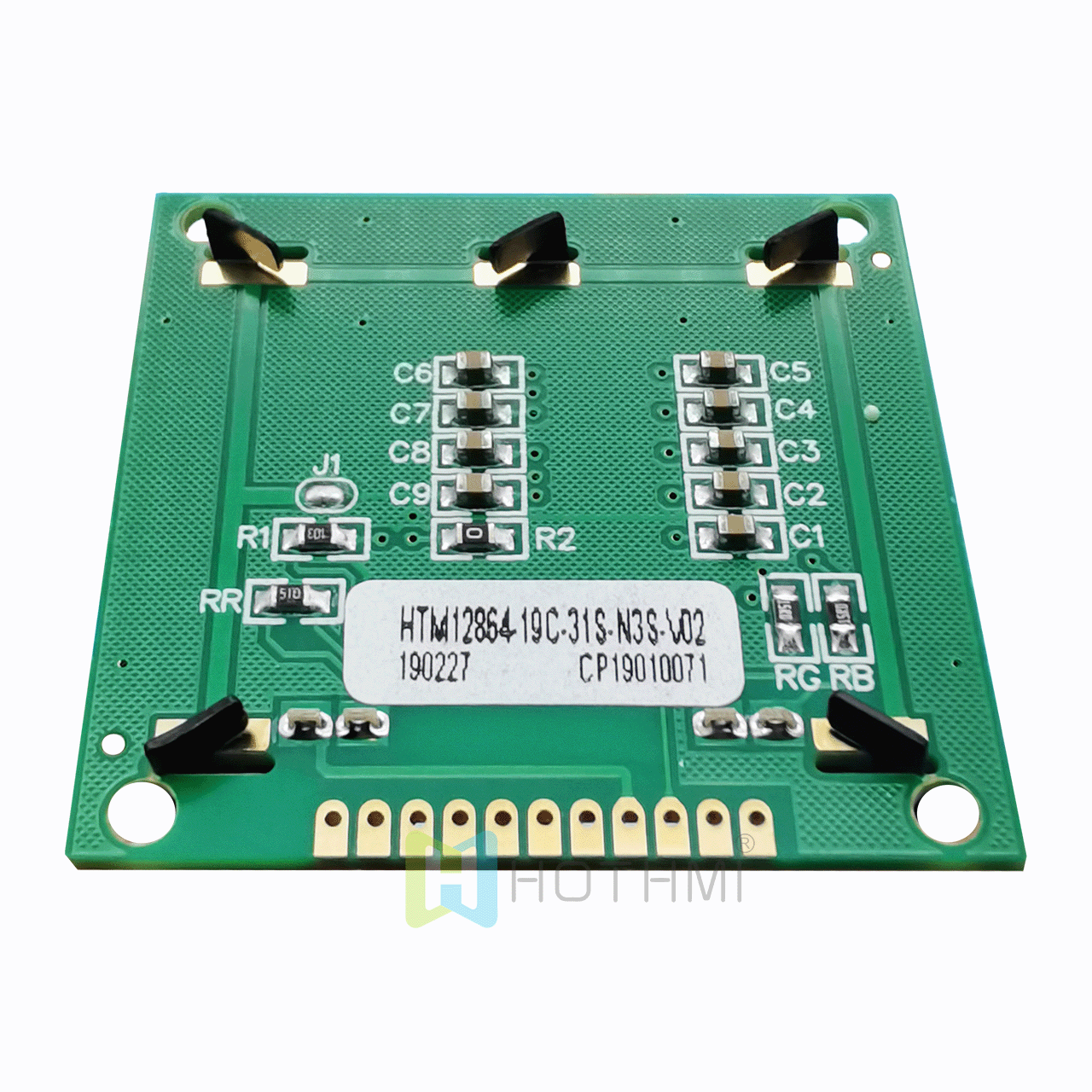

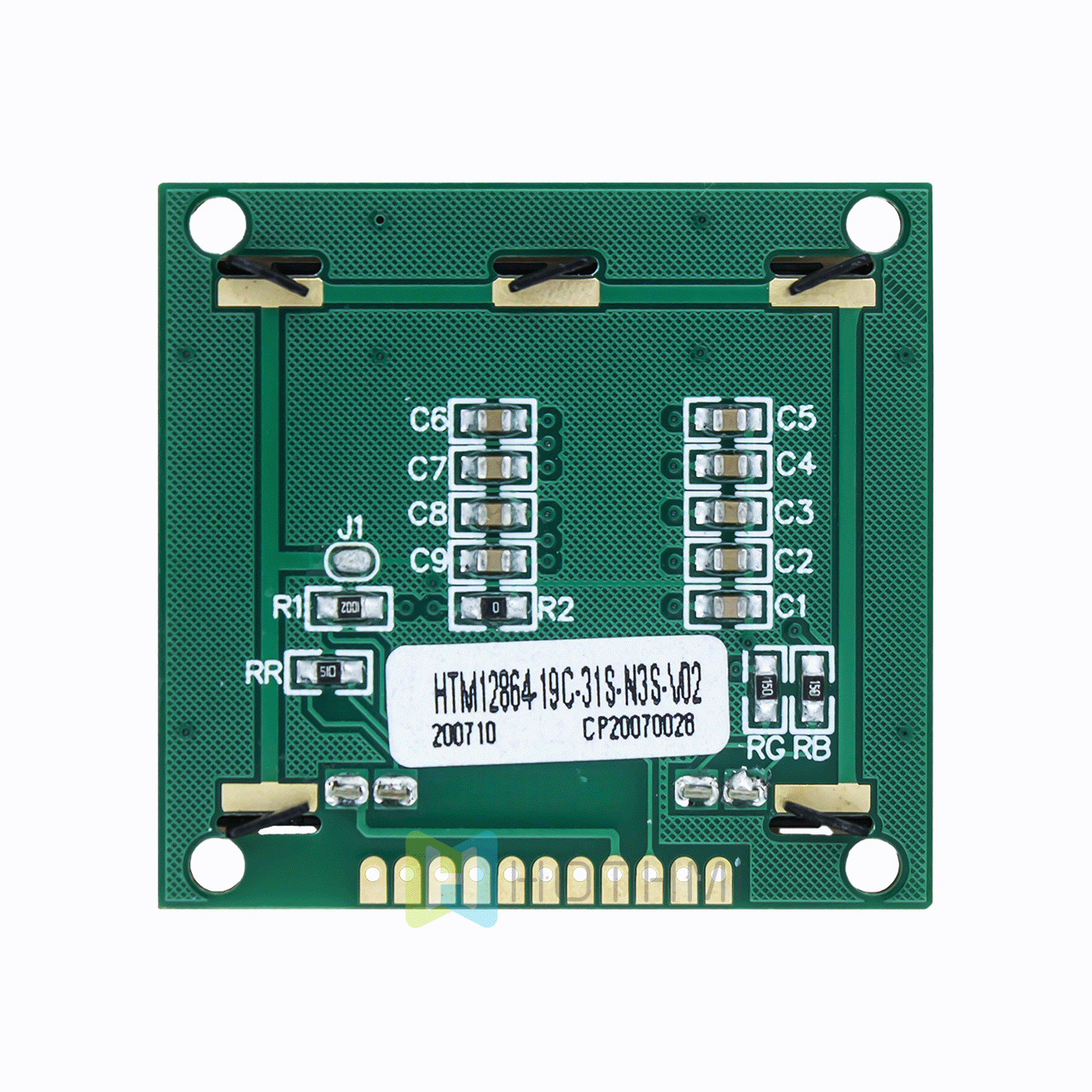

1.7 "128 x 64 RGB LCD graphic display module | 5.0V | FSTN positive display | Arduino

1.7 "128 x 64 RGB LCD graphic display module | 5.0V | FSTN positive display | Arduino | Fully transparent polarizer

▶ Model: HTM12864-19C-35S-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 128x64

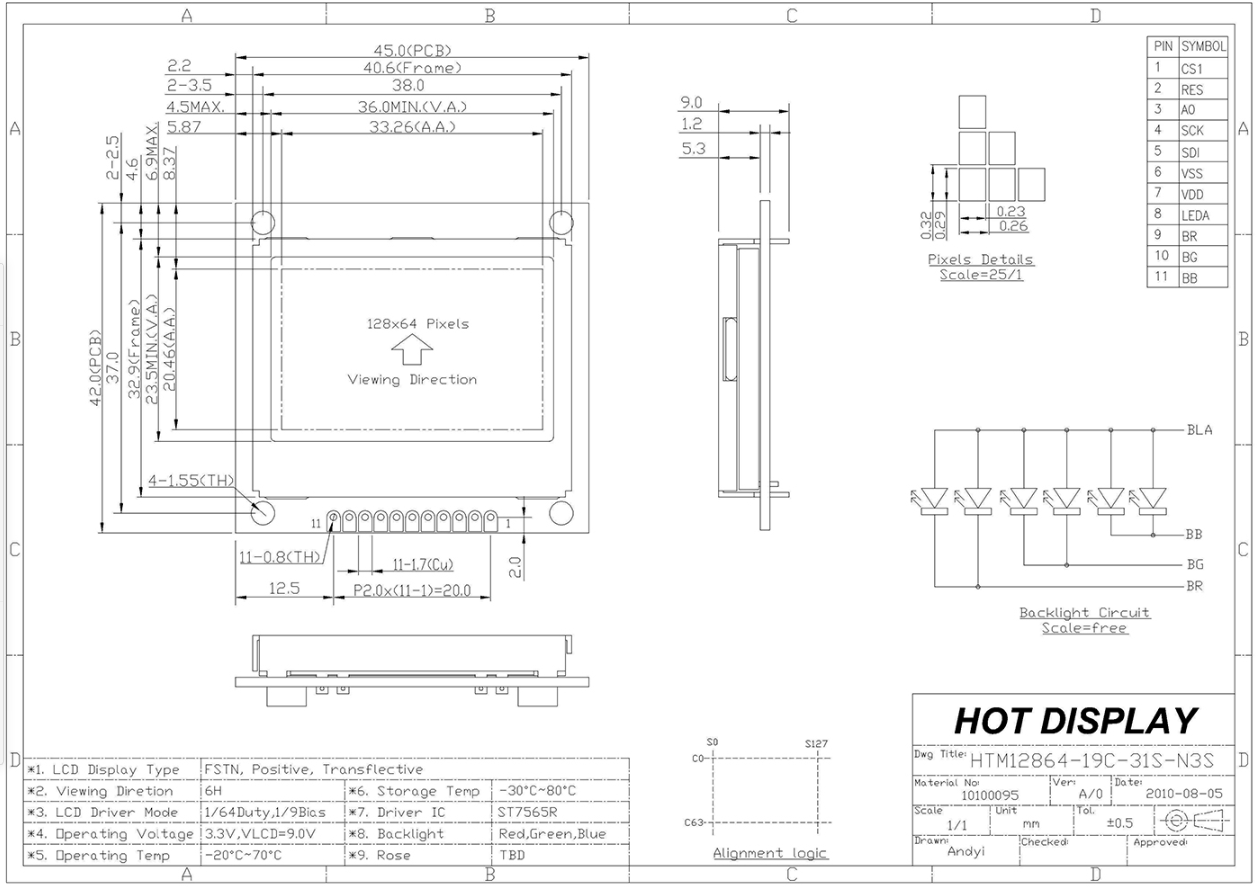

▶ Overall dimensions (mm): 45.0x42.0x9.0
▶ VA size (mm): 36.0x23.5
▶ AA size (mm): 33.26x20.46
▶ Point spacing (mm): 0.32x0.29
▶ Application: Smart meter
▶ Viewing angle: 6H
▶ Backlight: red green blue light
▶ Pin: 11PIN
▶ Interface: SPI
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM12864-19C-35S-A5P | 1.7 "128 x 64 RGB LCD graphic display module | 5.0V | FSTN positive display | Arduino | Fully transparent polarizer

This Hot Display graphic LCD module displays dark gray pixels on an RGB red, green, and blue color background. This fully transparent LCD monitor is carefully designed with strong backlight built into the LCD to provide high contrast and display clear graphics to the viewer. The backlight has three Chinese colors to choose from. You can choose red, green or blue backlight. Because it is equipped with a fully transparent polarizer, the light source passes through the display screen without any loss.

This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. The H2864-19C-135S-A5P model is designed to withstand harsh operating conditions and will perform abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 5V, and is RoHS compliant

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	Specification	Unit
name	HTM12864-19C-35S-A5P
Number of dots	128 x 64	dots
Module size	45.0（W） × 42.0 （H） × 9.0 （T）	mm
Visual (VA) area	36.0 x 23.5	mm
AA size	33.26（W） ×20.46（H）	mm
Point (pixel) spacing	0.32（W） × 0.29（H）mm	mm
IC	ST7565R
Applied voltage	5.00V	V
back light	Red green blue
model	FSTN(+)
Drive mode (Duty)	1/64 duty cycle
type	Graphic LCD
Polarizer type	Transmissive
