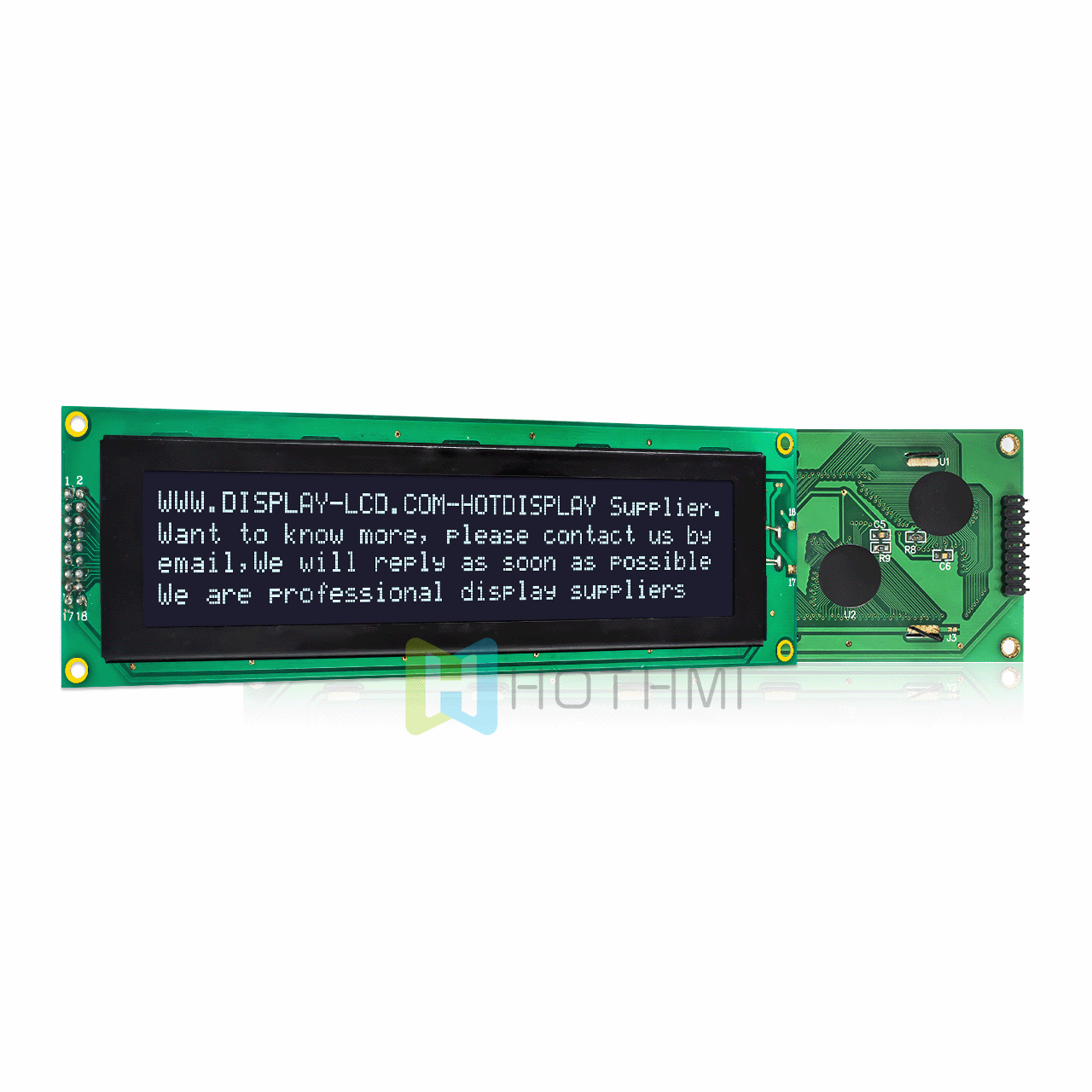

4X40 character monochrome LCD display module | DSTN negative display | with white backlight | Arduino display

4X40 character monochrome LCD display module | DSTN negative display | with white backlight | Arduino display | black background with white characters

▶ Model: HTM-4004B-41W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 40x4 characters
▶ Dimensions (mm): 190.0 x 54.0 x 14.9
▶ VA size (mm): 147.0 x 29.5
▶ AA size (mm): 140.47 x 23.18
▶ Pixel pitch mm: 0.57 x 0.62
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

5.0V | HTM-4004B-41W-A5P 4X40 character monochrome LCD display module | DSTN negative display | with white backlight | Arduino display | black background with white characters

If you are looking for a reliable, easy to use 160 character LCD, then the Hot Display HTM - 4004B-41w-A5P is an excellent choice. This is a high quality display suitable for applications where a backlight is not needed or desired. It operates from a 5V supply voltage, making it compatible with Arduino and other similar boards and microcontrollers. This monochrome reflective display works well with C, C+, and Python for parallel communications. This standard 16 pin LCD has a wide operating temperature range and is RSP compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	SPECIFICATION CONTENT	UNIT
Name	HTM-4004B-11W-A5P
Number of dots	40 x 4	dots
Module size	190.0（W） × 54.0 （H） × 14.9 （T）	mm
Viewable area (VA)	147.0 x 29.5	mm
AA size	140.47（W） ×23.18（H）	mm
Dot (pixel) spacing	0.57（W） × 0.62（H）mm	mm
IC	ST7066U driver
Applied voltage	5.00V	V
Backlight	WHITE
Mode	DFSTN(-)
Drive mode (Duty)	1/16 duty cycle
Type	Character LCD
Polarizer type	Transflective polarizer
