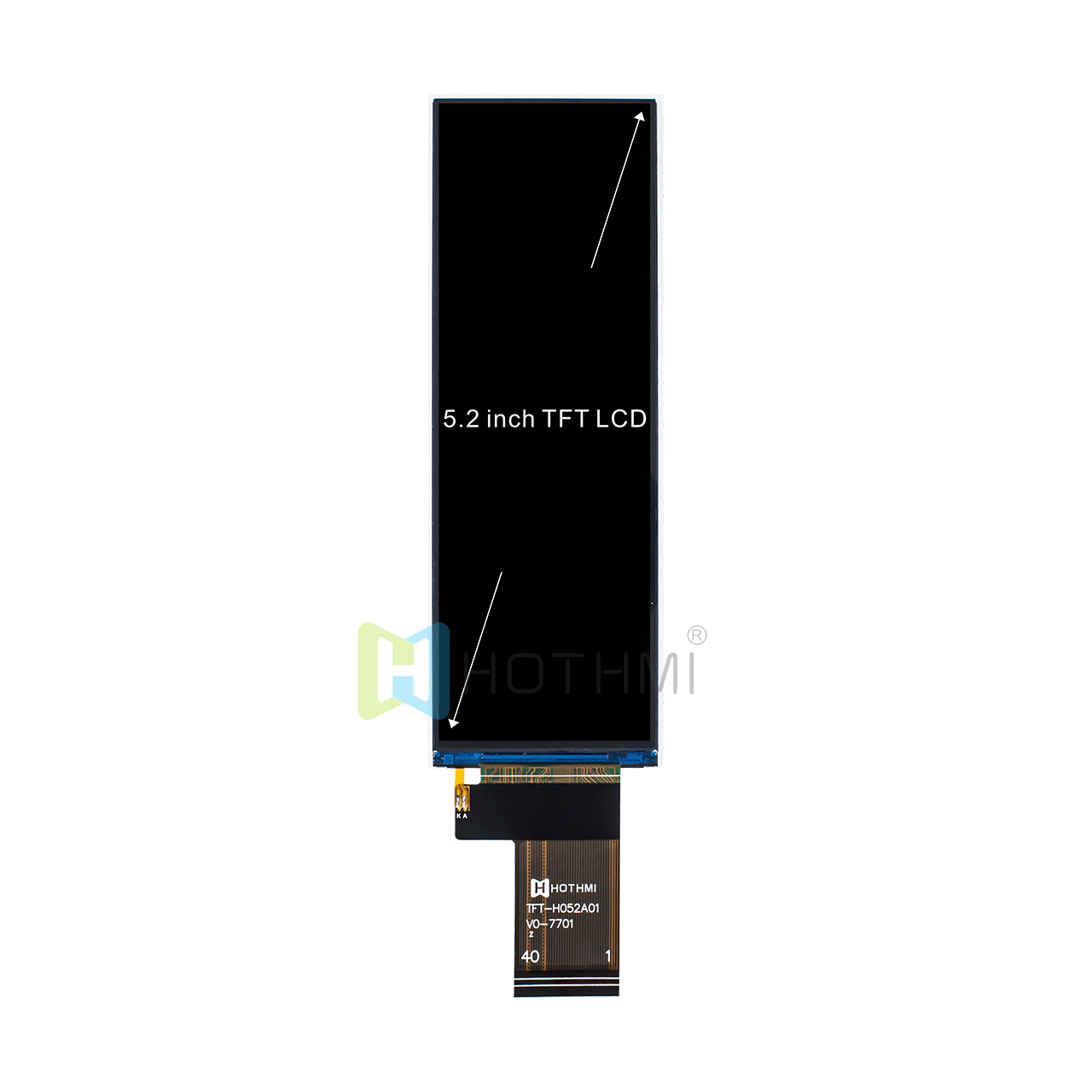

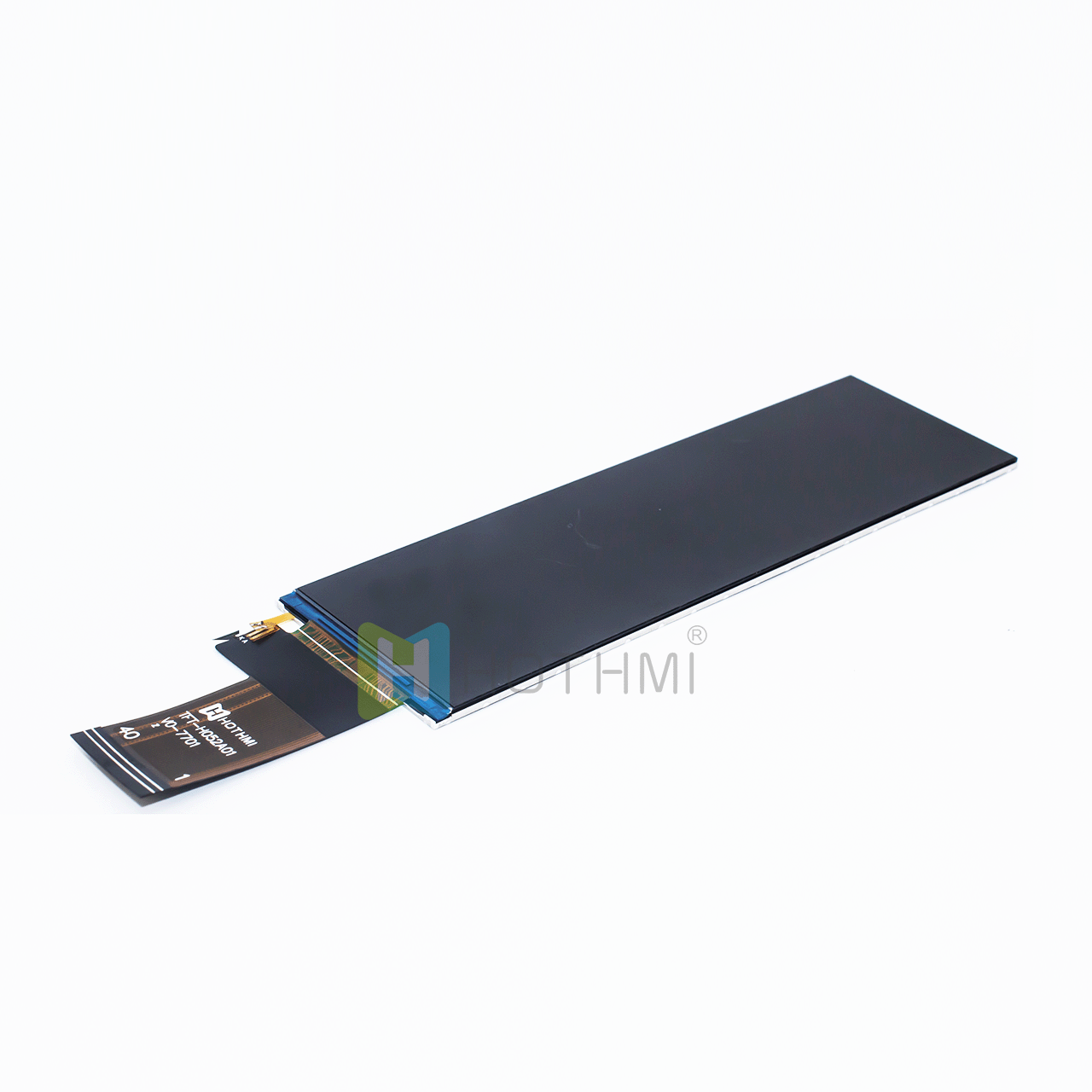

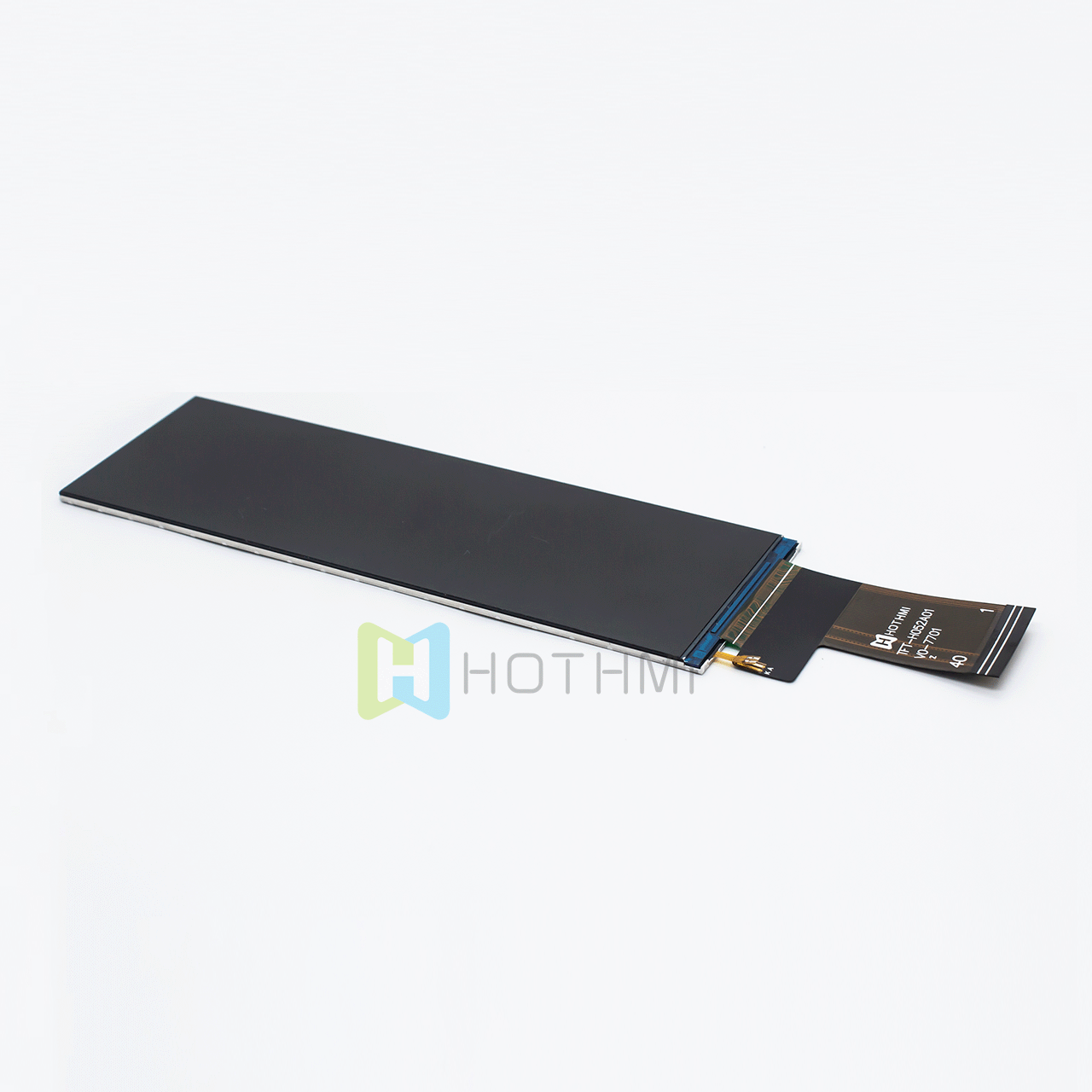

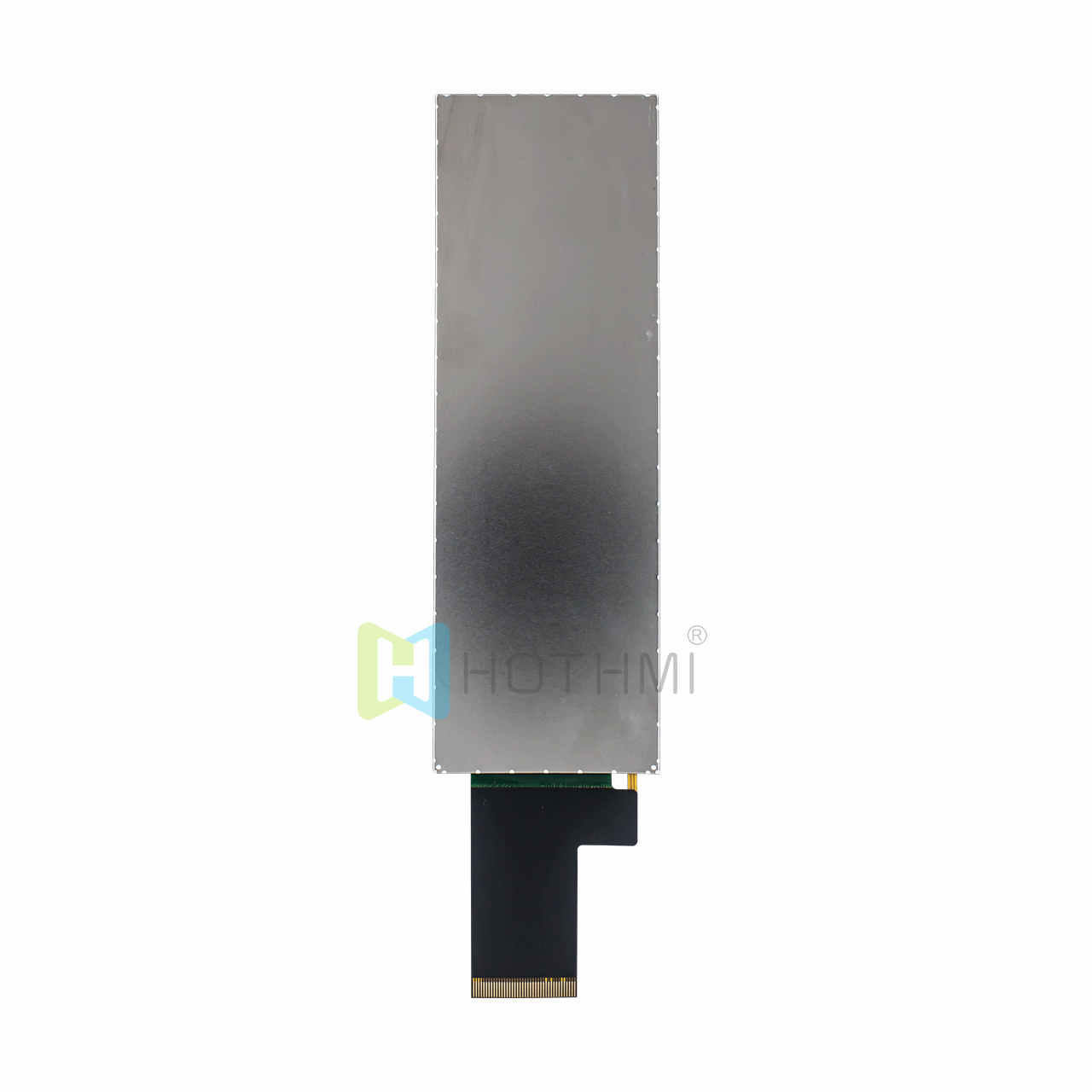

5.2-inch strip TFT LCD module/IPS full viewing angle/416x1280 dot matrix/RGB interface/NV3049F/readable under sunlight

5.2-inch strip TFT LCD module/IPS full viewing angle/416x1280 dot matrix/RGB interface/NV3049F/readable under sunlight

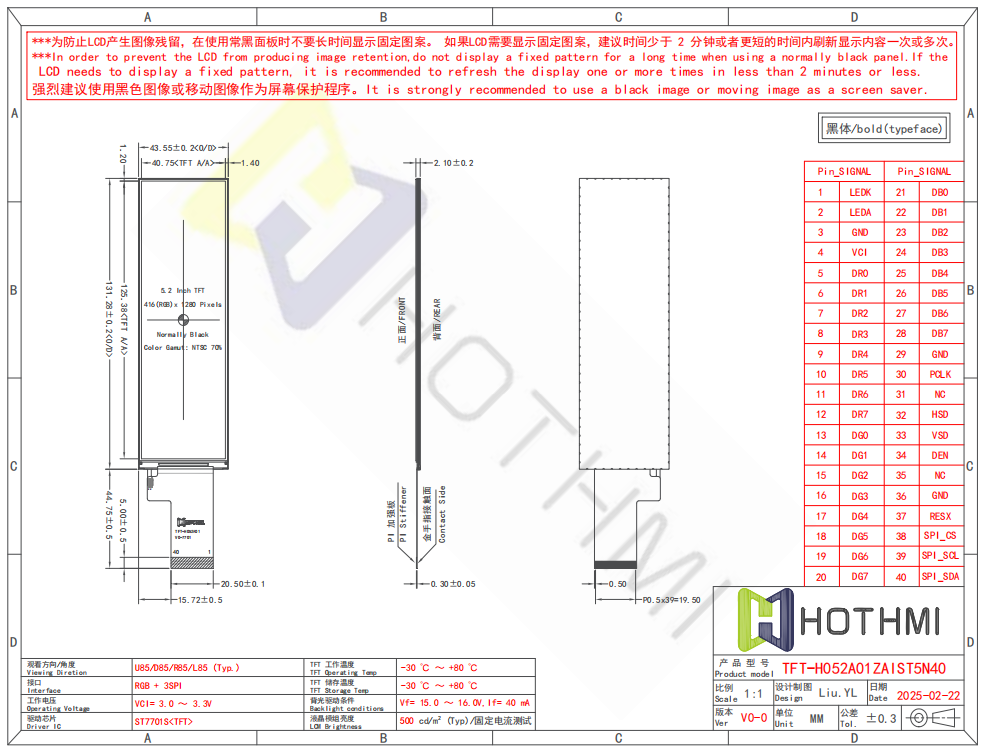

▶ Model: TFT-H052A01ZAINV5N40

▶ Type: TFT bar
▶ Display pixels: 416x1280 Px
▶ Overall dimensions (mm): 43.55x131.28x2.10
▶Display inches: 5.2"
▶ Effective size (mm): 40.75x125.38
▶ Application: STM32/RK series
▶Viewing angle: IPS (U85/D85/L85/R85)
▶Brightness: 500cd/m2
▶ Pin: FPC-40PIN
▶Interface: RGB+SPI
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 3.3V
▶ Driver chip: NV3049F

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H052A01ZAINV5N40|5.2-inch strip IPS-TFT-LCD interface|416x1280 pixel high-resolution LCD screen|optional capacitive touch/resistive touch

TFT-H052A01ZAINV5N40 is a 5.2-inch color LCD module, 416x1280 resolution, built-in NV3049F controller, optional resistive touch screen, high image quality, wide viewing angle, supports RGB interface, 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage, supports horizontal or vertical screen display. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

Parameters	Parameter Description	unit
TFT type	Standard TFT
Diagonal inches	5.2”	Inch
Pixels/Resolution	416 × RGB × 1280 (TFT)	dots
External dimensions	43.55x131.28x2.10	mm
Size (AA) area	40.75x125.38	mm
LCD specifications	TFT, white, transmissive
Display perspective	IPS full viewing angle/85/85/85/85 (IPS)
Horizontal to vertical ratio	3:10
Backlight specifications	LED, white
TFT driver chip	NV3049F
Touch glass type	none
surface	Glare
Display brightness	500	cd/㎡
working temperature	-20~+70	°C
Storage temperature	-30~+85	°C
