2X16 Character LCD Module Display | STN+ Gray Display with White Side Backlight-Arduino

2X16 Character LCD Module Display | STN+ Gray Display with White Side Backlight-Arduino

▶ Model: HTM-1602-9-11W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 16x2 characters
▶ Overall dimensions (mm): 100.0x38.0x13.0
▶ VA size (mm): 80.0x20.5
▶ AA size (mm): 76.37x16.02
▶ Point spacing mm: 0.83x0.98
▶ Product application: industrial equipment
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ Number of connection PINs: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1602-9-11W-A5P | 16x2 LCD Character Display | Transflective LCD | Side White LED Backlight | STN (+) Positive Gray Display

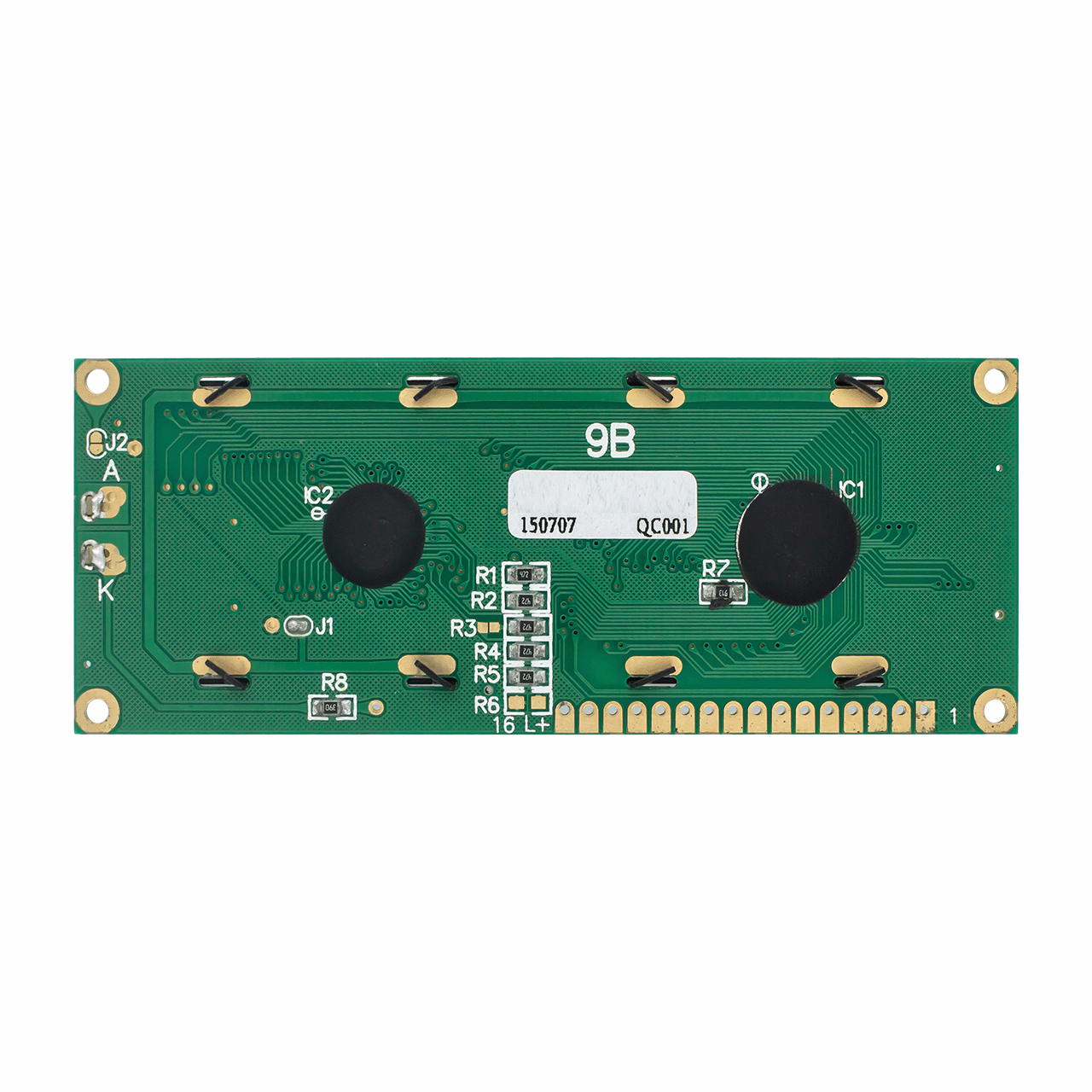

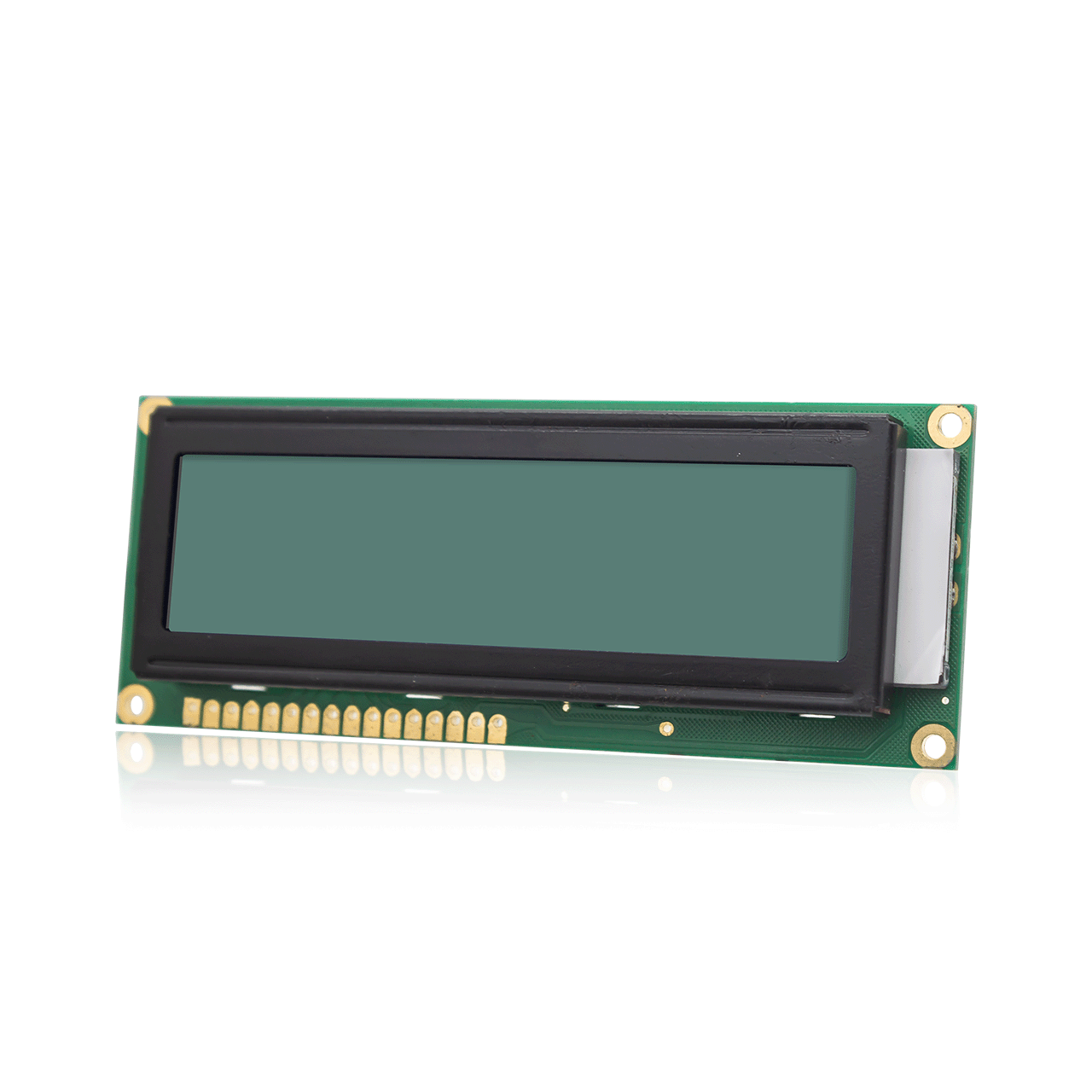

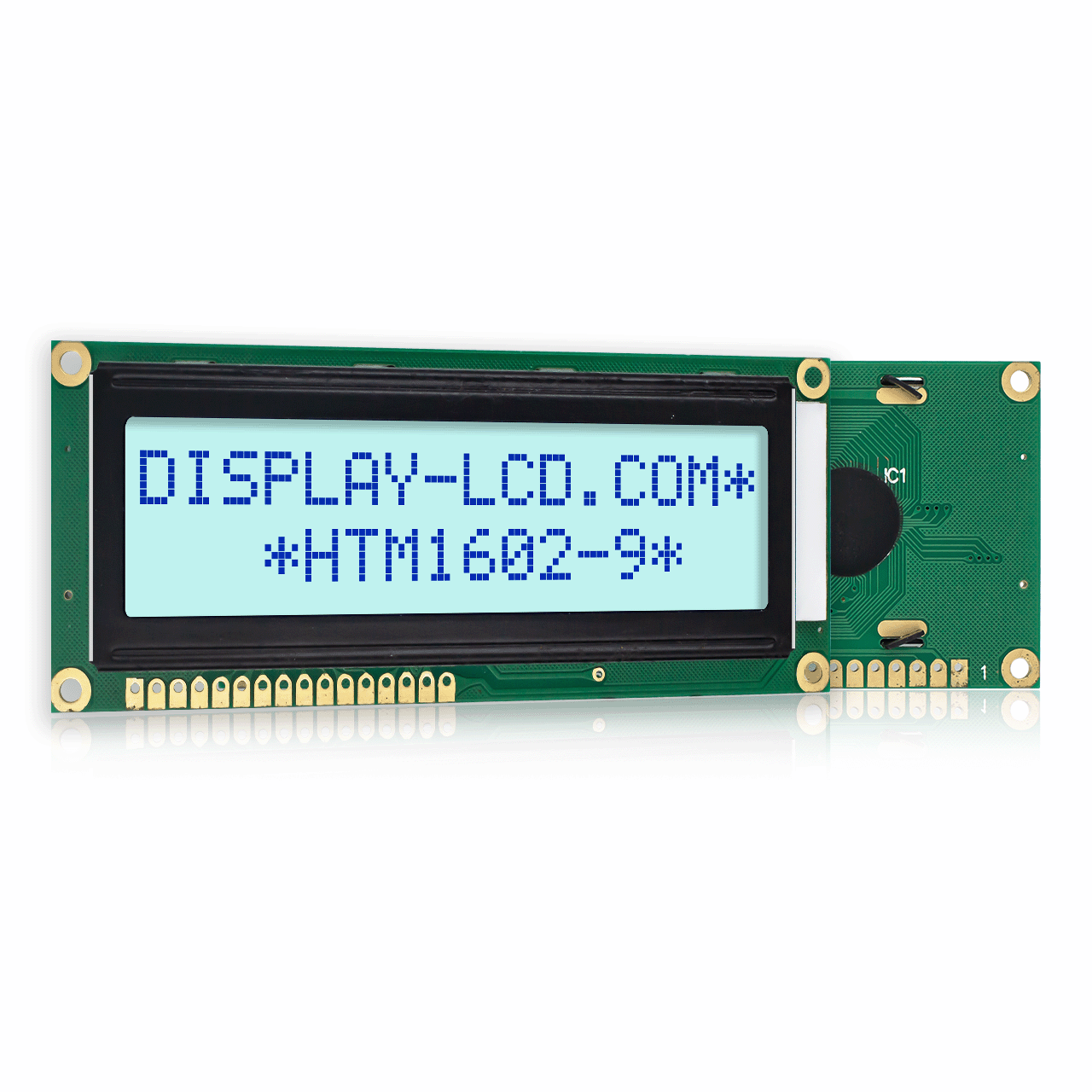

HOTHMI 16x2 LCD display shows up to 32 characters as two rows, each with sixteen characters of blue, dark pixels on a light gray background. This transflective STN positive Liquid Crystal Display includes a side white LED backlight allowing it to be visible with backlight on or with ambient light while offering an optimal 6:00 view.

HTM1602-9-11W-A5P display has a wide operating temperature range from -20 to 70 degrees Celsius, a built-in ST7066U controller, operates at 5V supply voltage with low Power of 20mA, and adheres to the highest quality standards. Whether you are looking to develop a high-quality product or use it for a personal project, this 16 character, 2 rows, Arduino compatible character LCD offers quality and performance with low power consumption.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

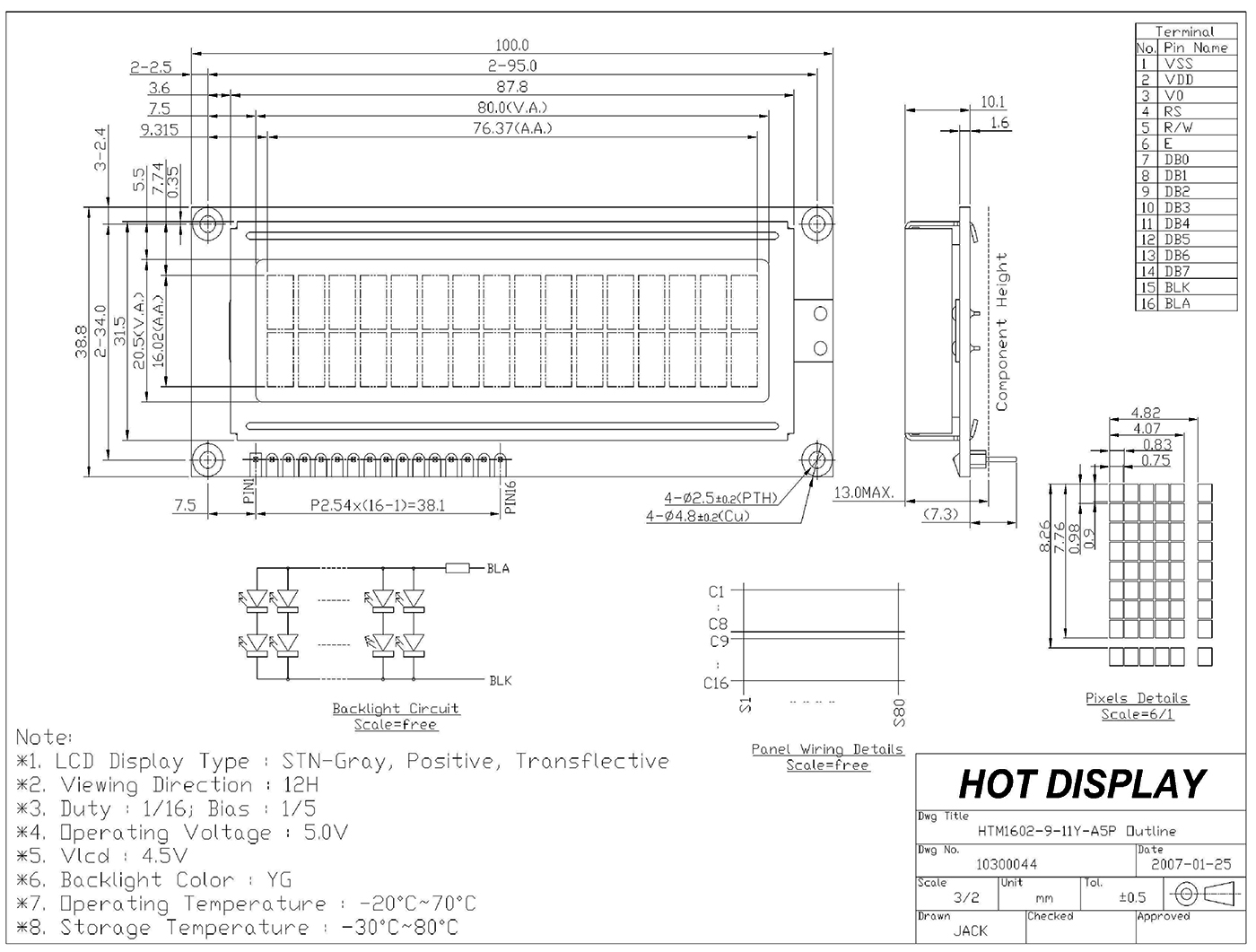

entry name	Specification parameters	unit
Model name	HTM-1602-9-11W-A5P
Character display line	16 words × 2 lines	dots
Module Size	100.0 (W) × 42 (H) × 13.0 (D)mm	mm
Visible (VA) area	80.0 (W) × 20.5 (H)	mm
Effective Area (AA)	76.37（W） × 16.02（H）mm	mm
Point (Pixel) Size	0.75×0.90mm	mm
Point (pixel) spacing	0.83(W)×0.98(H)mm	mm
Driver chip	ST7066U driver
/Application voltage	5.0V	V
Backlight	White backlight
mode	STN+
Driving method	1/16 duty cycle
type	character module
characteristic	transflective
