1X16 Character LCD Display | STN+ Yellow/Green Background with Yellow/Green Backlight-Arduino

1X16 Character LCD Display | STN+ Yellow/Green Background with Yellow/Green Backlight-Arduino

▶ Model: HTM1601B-01Y-A5P

▶ Type: Standard COB character module
▶ Display content: 16x1 characters

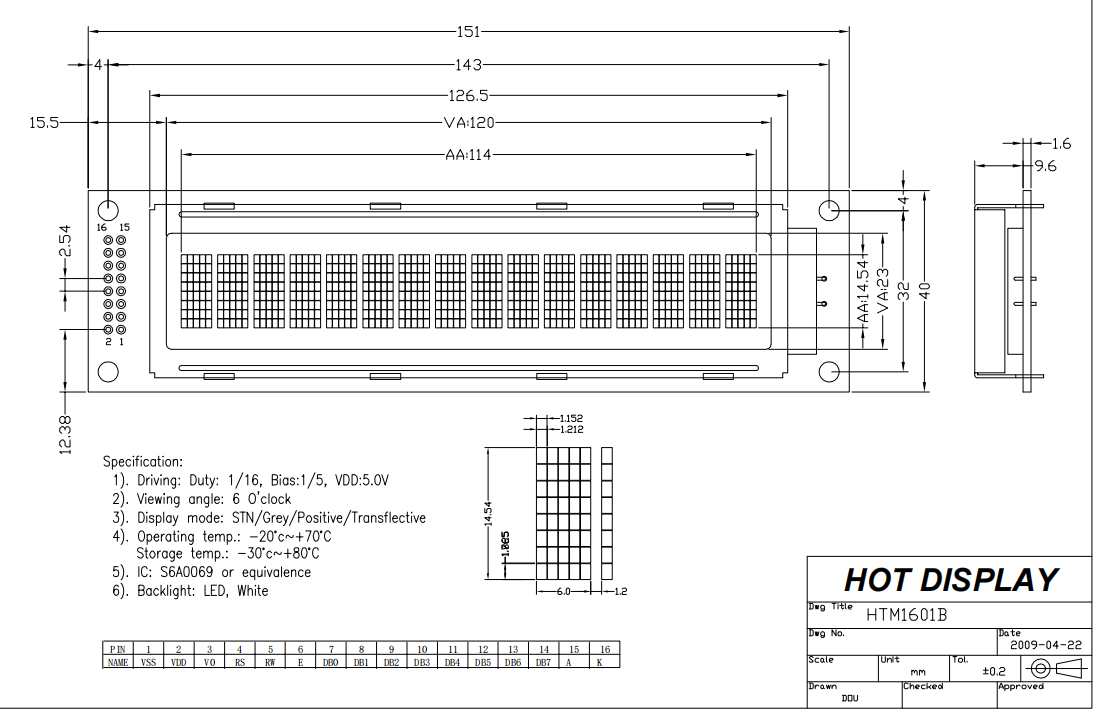

▶ Overall dimensions (mm): 151.0x40.0x9.6
▶ View window size (mm): 120.0x23.0
▶ Display size (mm): 114.0x14.54
▶ Point spacing mm: 1.212x1.825
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type or brightness: yellow-green
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

The HTM1601B-01Y-A5P is a high-quality 16-character single-line LCD with the following features:

Display Features: When powered on, this LCD display displays characters with black pixels on a very bright yellow/green background, providing a clear and eye-catching display.

Controller/Driver: This model features the ST7066U controller/driver, ensuring efficient display control and stability.

Working voltage: The working voltage of HTM1601B-01Y-A5P is 5V and complies with RoHS standards, ensuring that the product meets health and environmental standards during use.

Operating temperature range: LCD has a wide operating temperature range and is suitable for various environmental conditions from -20 to 70 degrees Celsius.

Arduino Compatible: The HTM1601B-01Y-A5P is compatible with Arduino/C8051, providing developers with a wider range of applications and creative possibilities.

Optimum viewing angle: This model has an optimal viewing angle of 6:00, ensuring a clear display at various viewing angles.

Overall, the HTM1601C-01Y-A5P is a reliable choice in a variety of environments and projects with its excellent display, reliable controller, and wide applicability.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

item	Parameter Description	unit
name	HTM1601B-01Y-A5P
Number of dots	16x1 Character	dots
Module size	151.0x40.0x9.6 (MAX)	mm
VA size	120.0（W） × 23.0（H）	mm
AA size	114.0（W） × 14.54（H）	mm
Pixel pitch	1.212x1.825	mm
IC	ST7066
voltage	5.0V	V
backlight	Yellow/green
display mode	STN+
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
