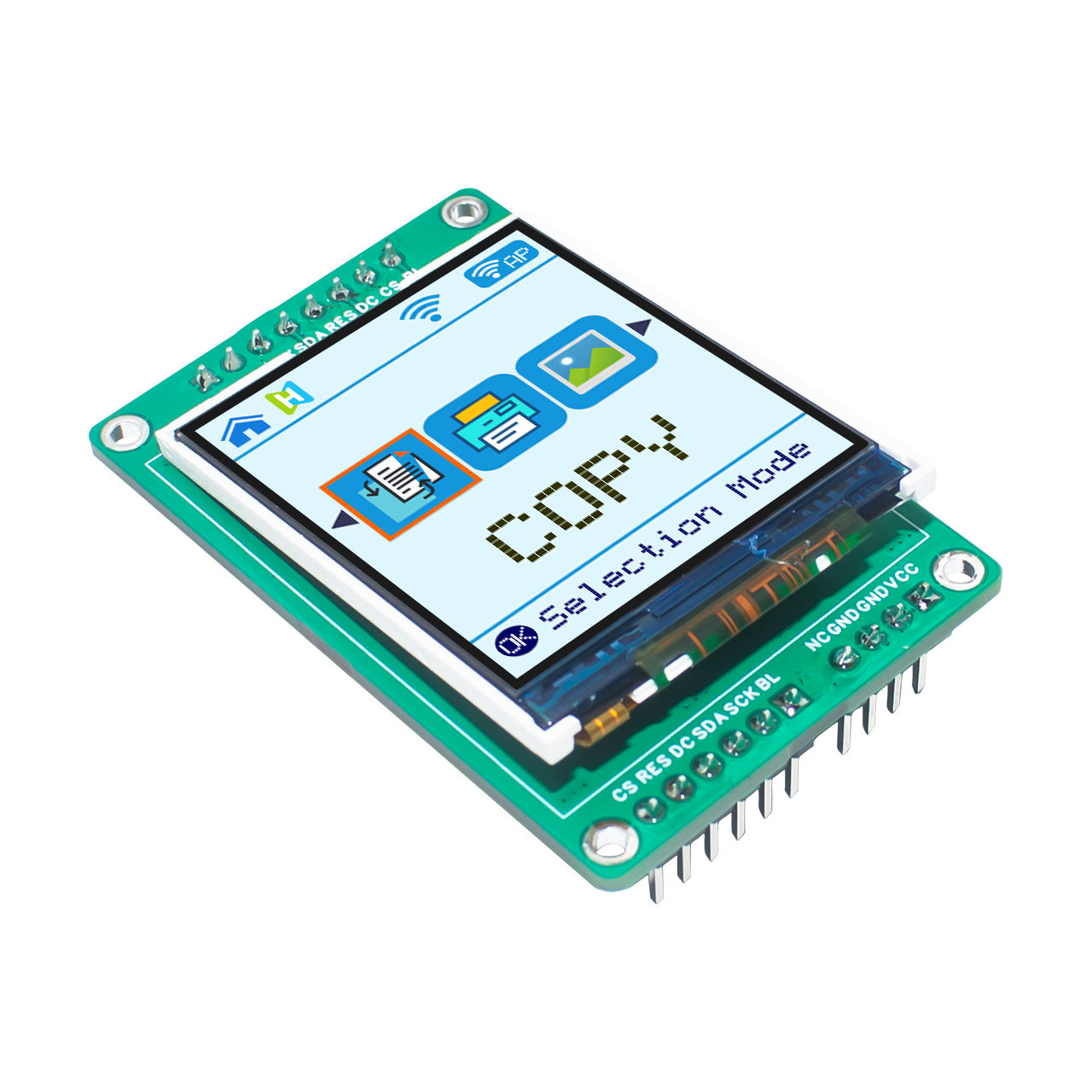

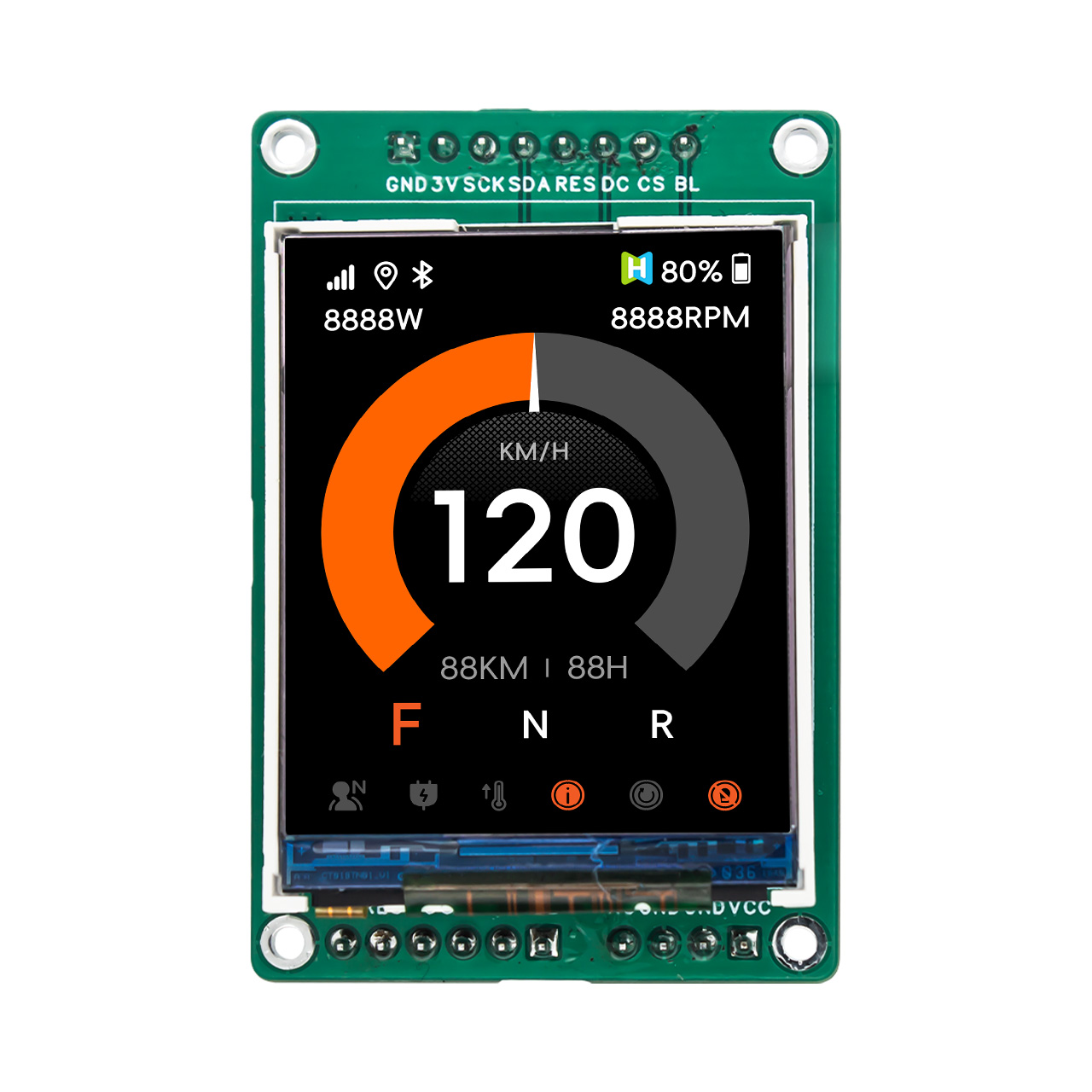

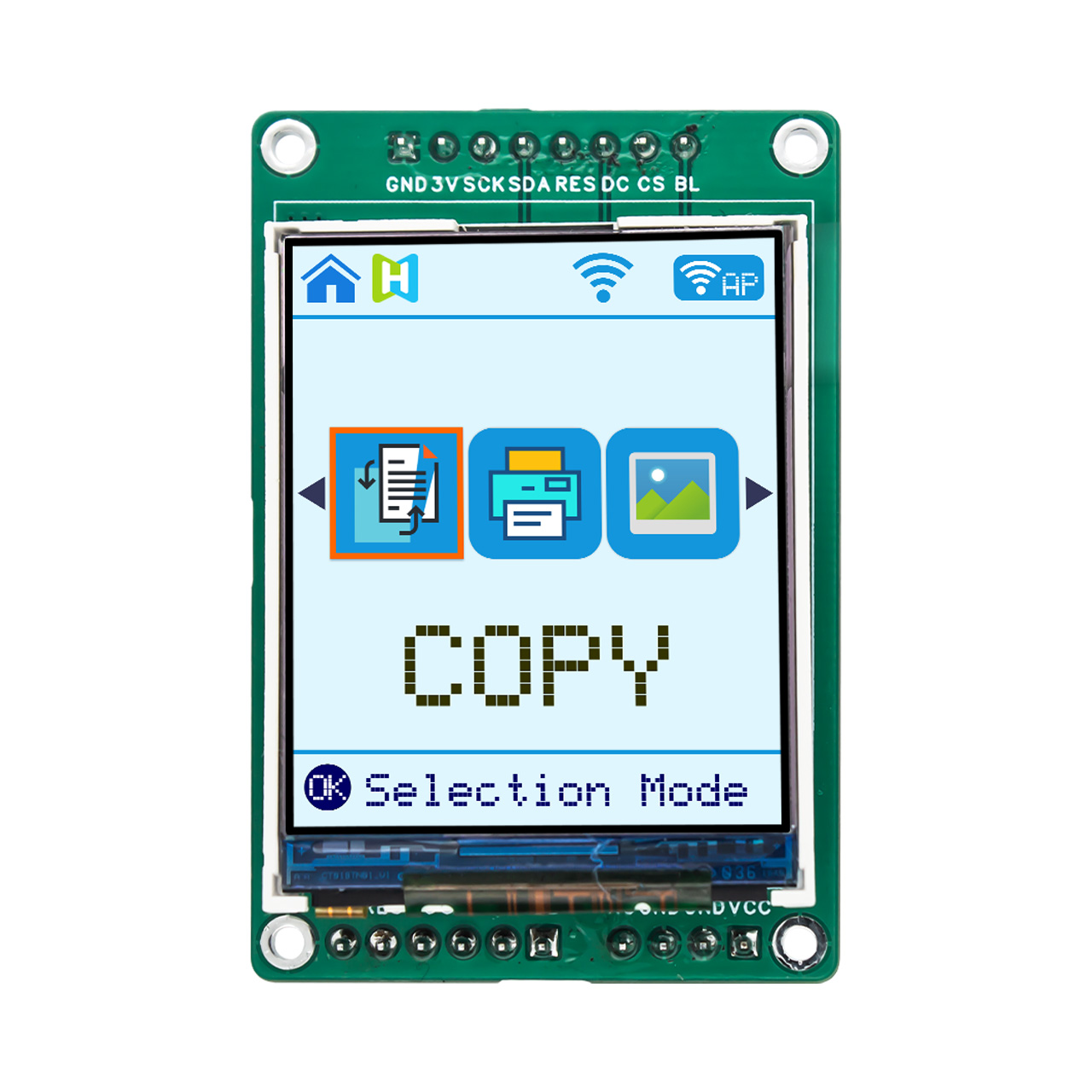

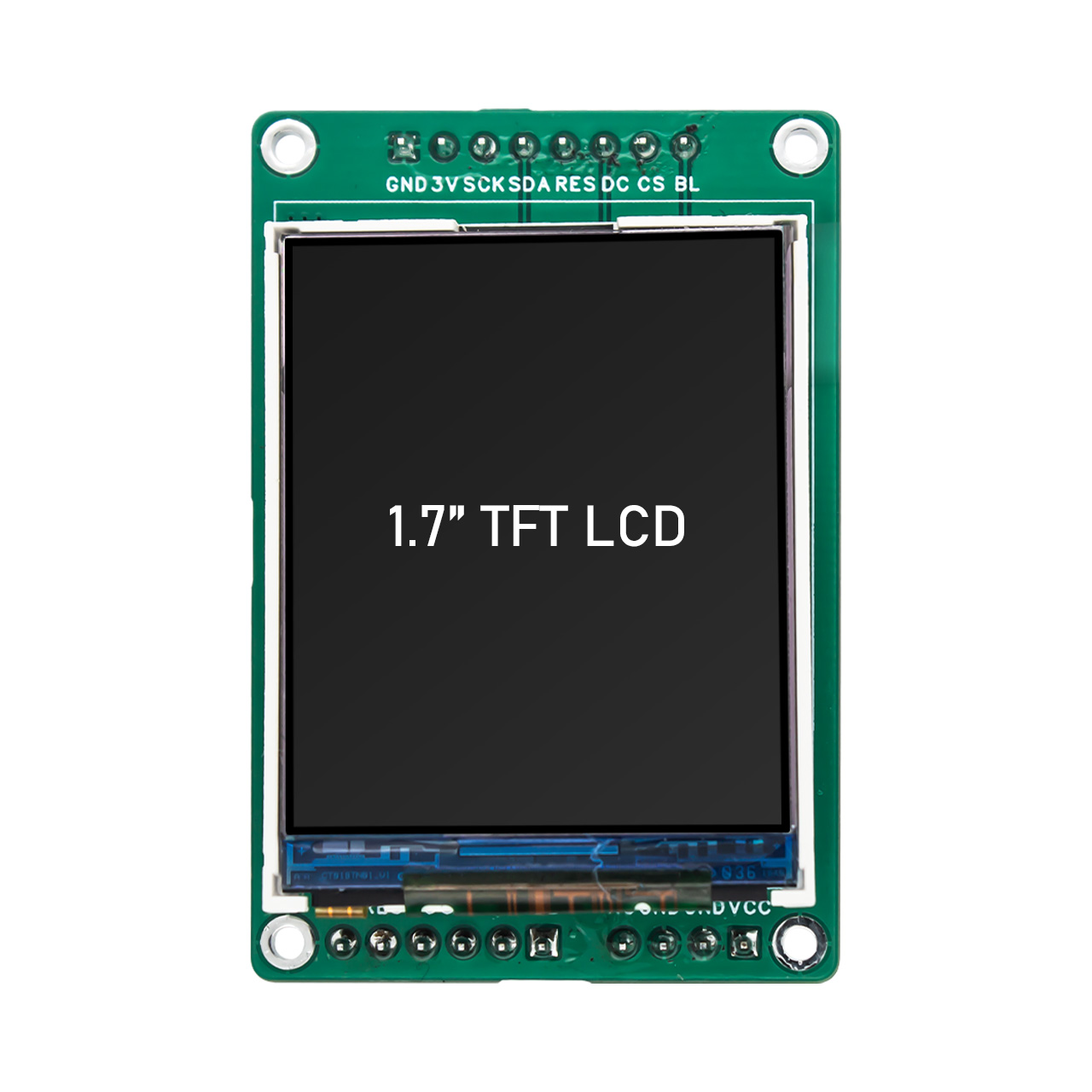

  • 1.7 inch 128x160 TFT LCD display module with ST7735S driver chip, sunlight readable display module

    This 1.7inch TFT LCD display module provides a resolution of 128 (RGB) x 160 pixels, and its default display direction is 12 o'clock. The module core uses the ST7735S driver chip and has built-in necessary drive circuits. Its operating voltage range is 2.5V to 3.3V (VCI), and it communicates and controls through a standard SPI (3-wire or 4-wire) interface. The module can work normally in an environment of -30°C to +80°C, and the storage temperature range is -20°C to +70°C. Under typical constant current test conditions, the brightness of its LCD module can reach 850 cd/m². The ultra-high-quality display and high-brightness design make this display module a sunlight-visible IPS full-viewing angle display.

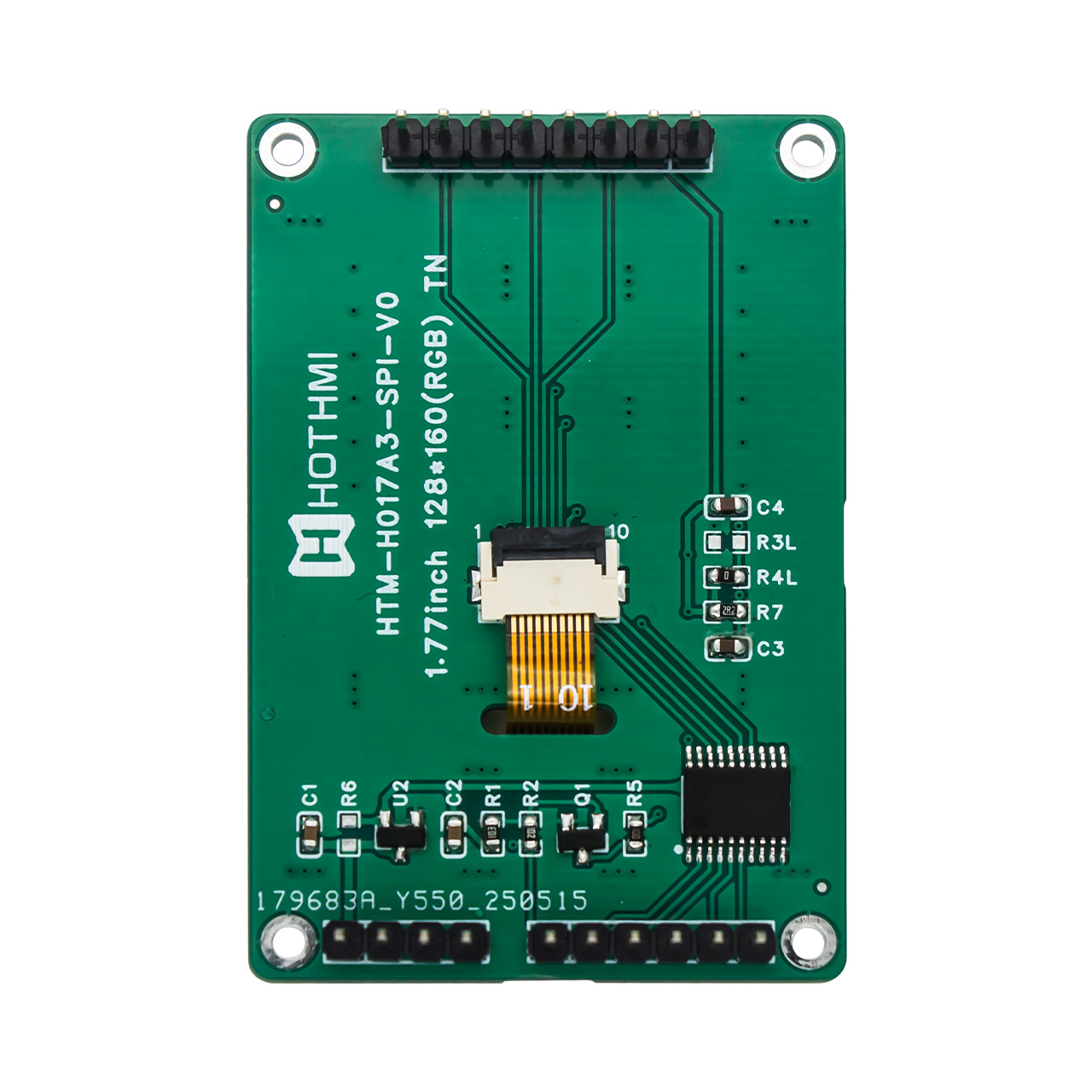

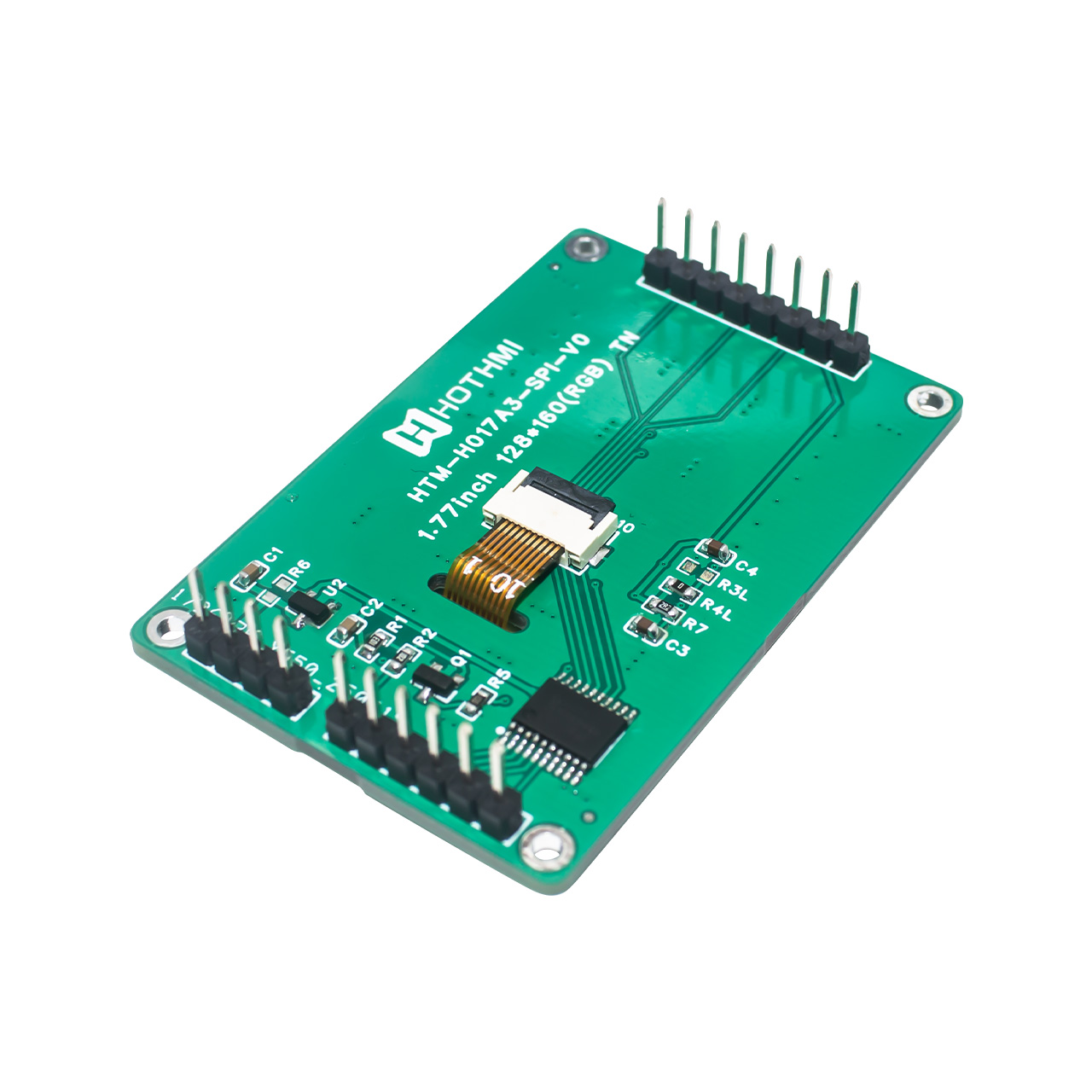

    This 1.7inch TFT LCD display module has a compact design, and the exquisite display screen comes with a driver board, which is convenient for users to develop and use. If you need other display solutions, we can also provide references and designs. The display screens related to this display module are TFT-H017A3CFTST5N10 and TFT-H017B1CFTST2N20. It is particularly important to note that in order to prevent image retention on normally black LCD panels, please avoid displaying fixed patterns for a long time; if static content must be displayed, it is strongly recommended to refresh the display content at least once in 2 minutes or less, or use black images or moving images as screen savers.


  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    TFT-H078B06ZAISTTC40 June 06, 2025 1.29MB

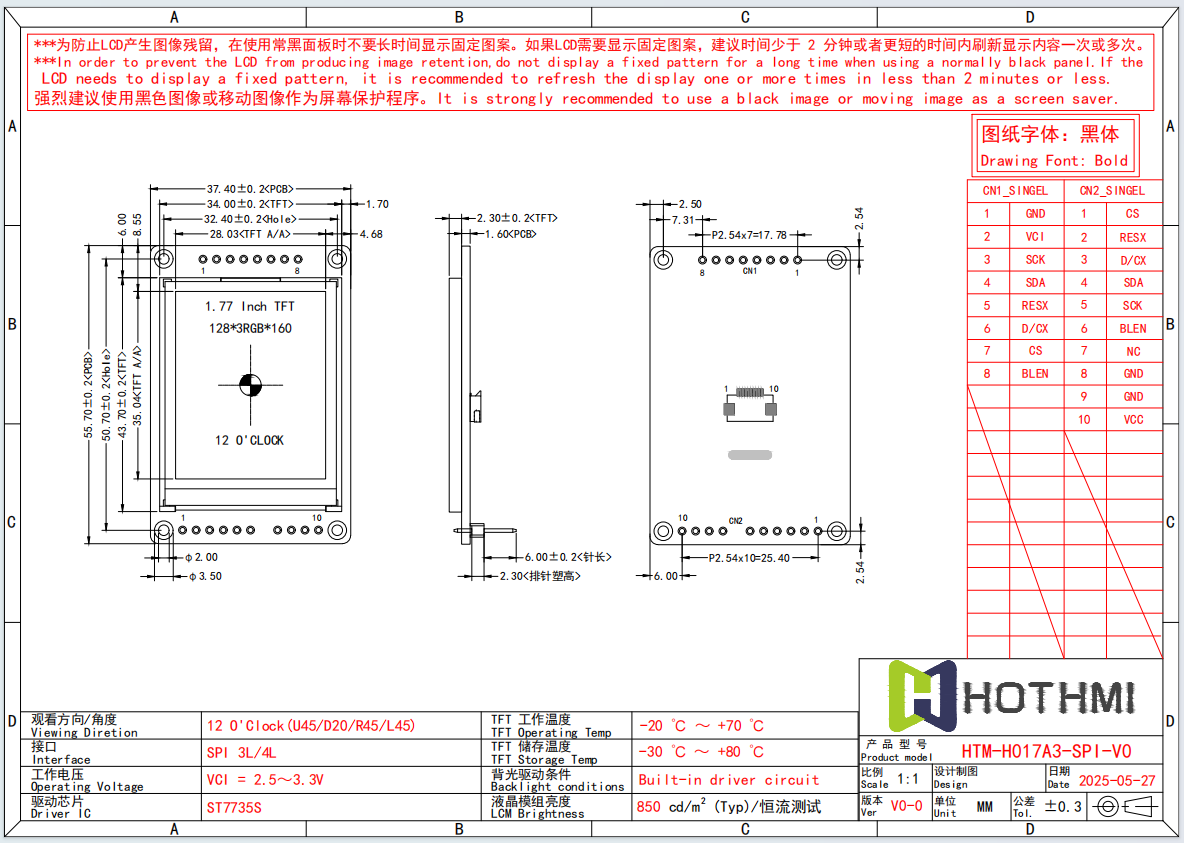

  • 017A3.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    HTM-H017A3-SPI-V0


    Diagonal size

    1.7”

    Inch

    Resolution

    128x160

    Dot

    Dimensions

    37.4x55.7x2.3

    mm

    Active area (AA)

    28.03x35.04

    mm

    LCD type

    1.7” TFT Module

    mm

    Display viewing angle

    Full View


    Aspect ratio

    2:3


    Backlight type

    LED white


    TFT driver IC

    ST7735S


    Brightness

    850cd/m2

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
