  • 1.3 inch Circular TFT Modules | 240X240 UART Smart TFT  | IPS round TFT LCD module |  smart serial port screen

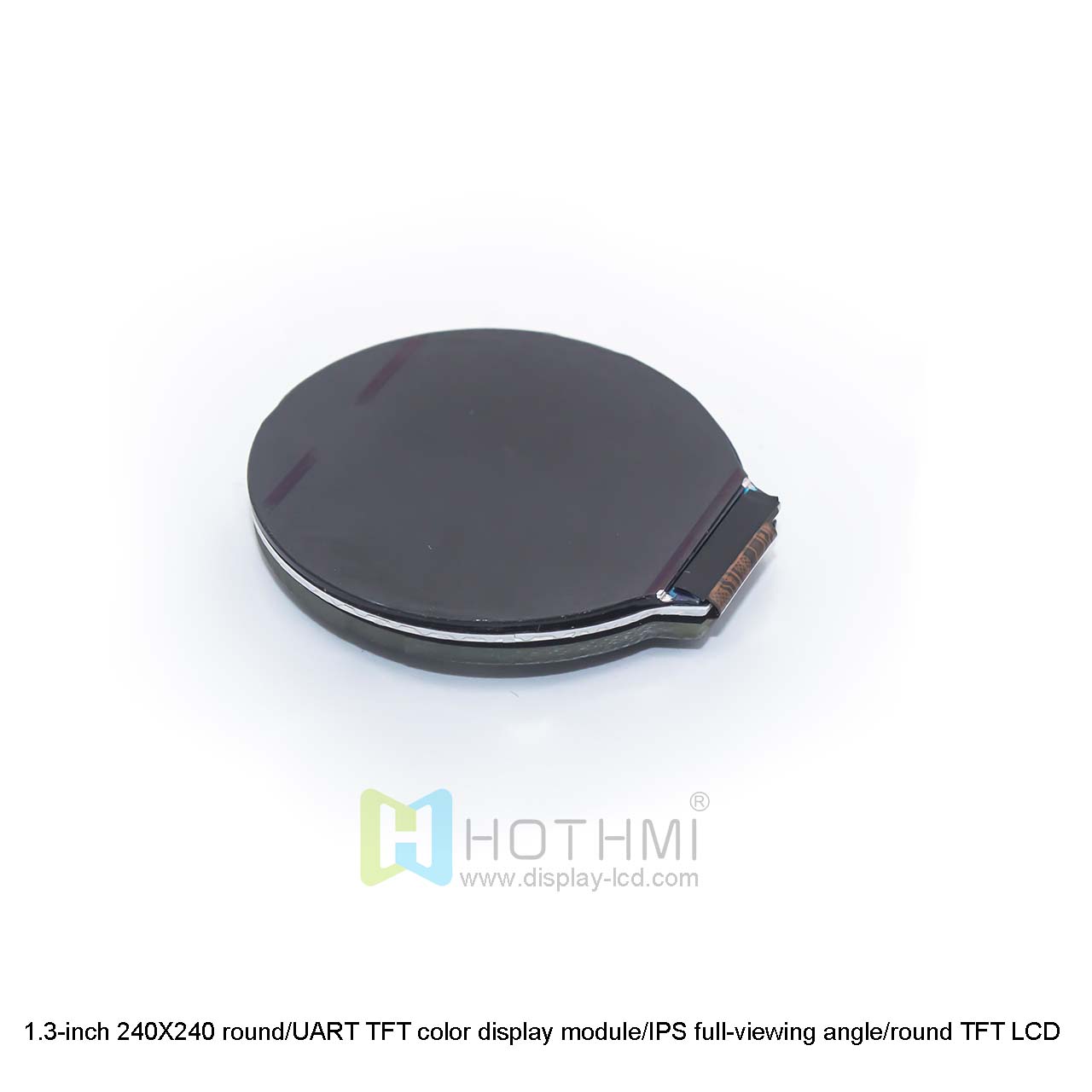

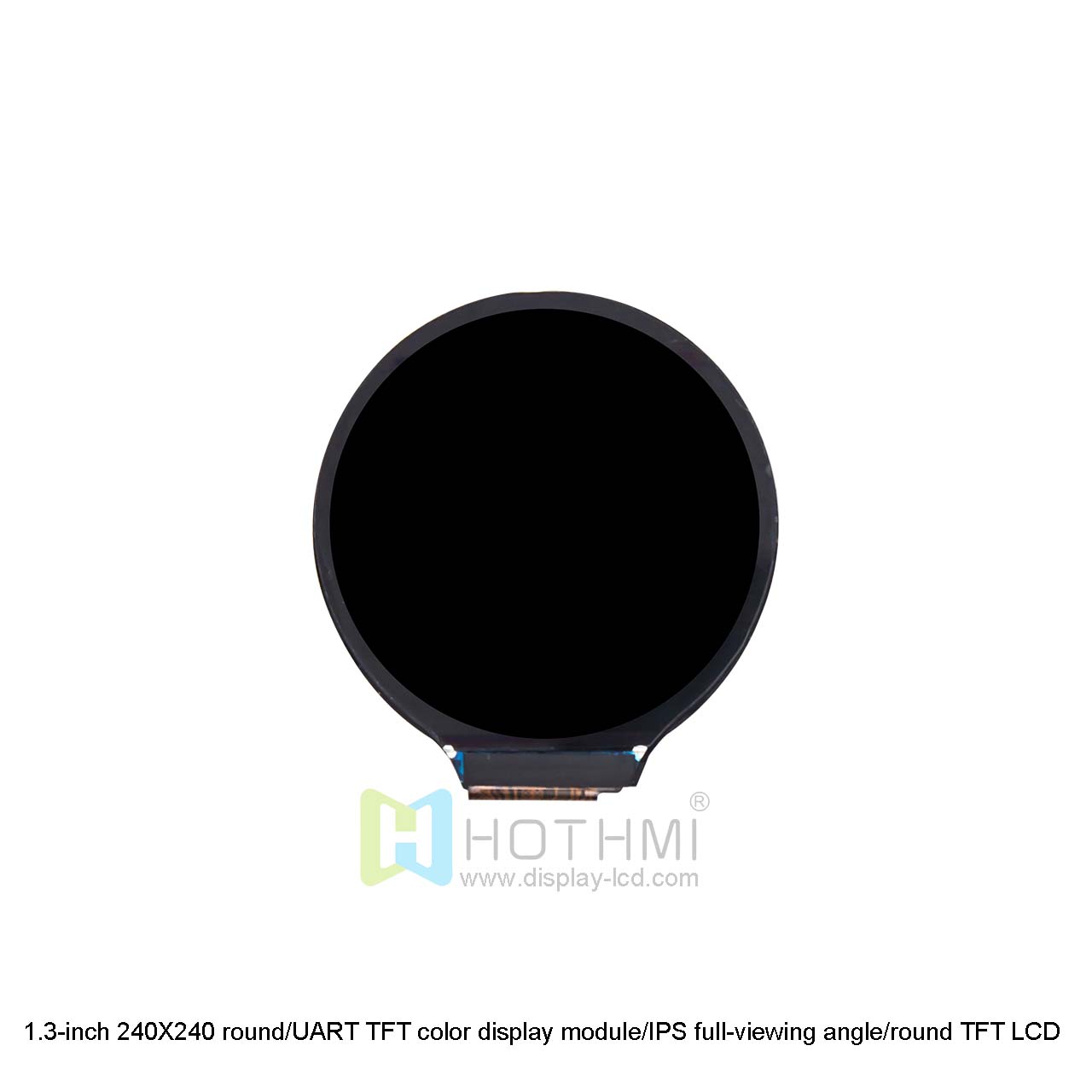

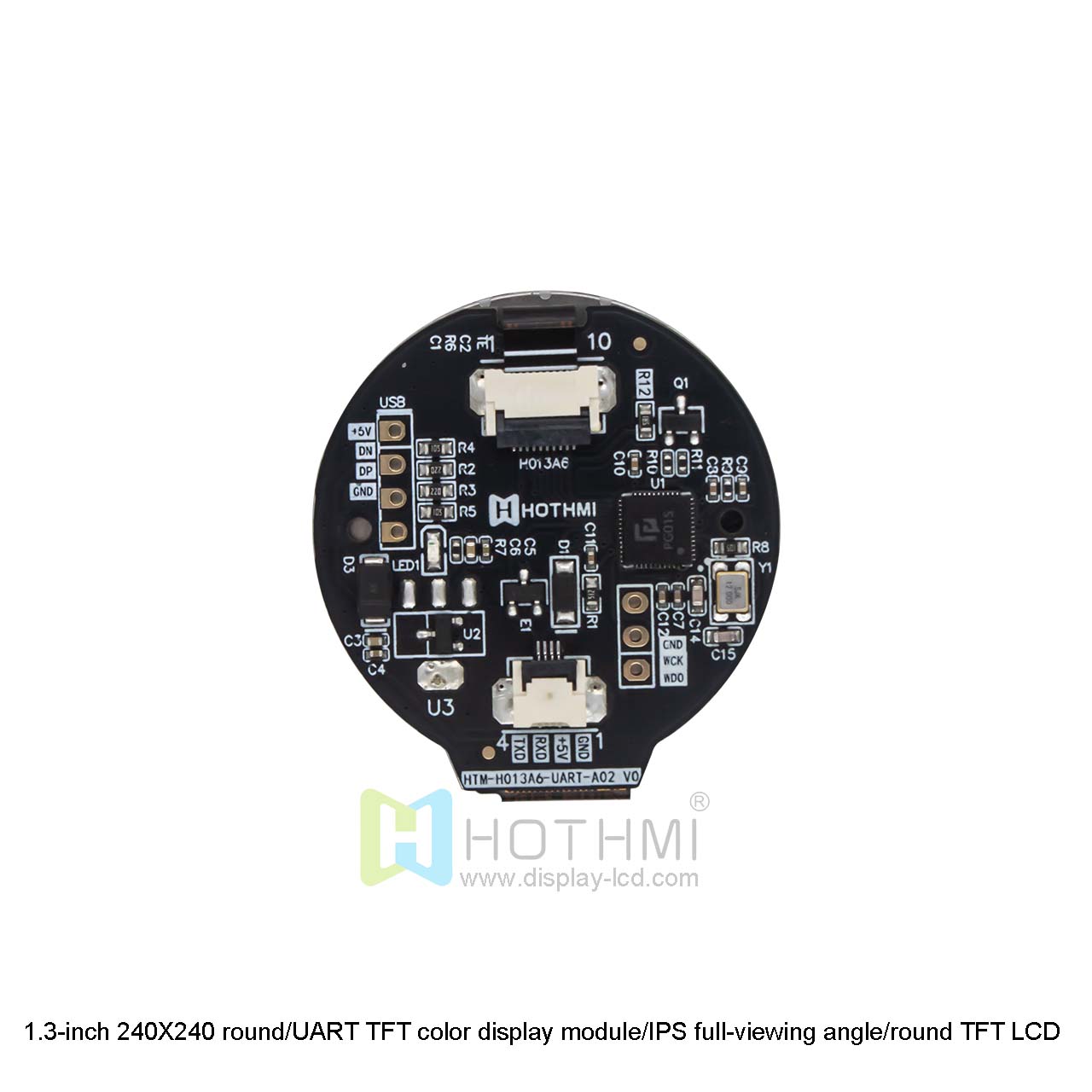

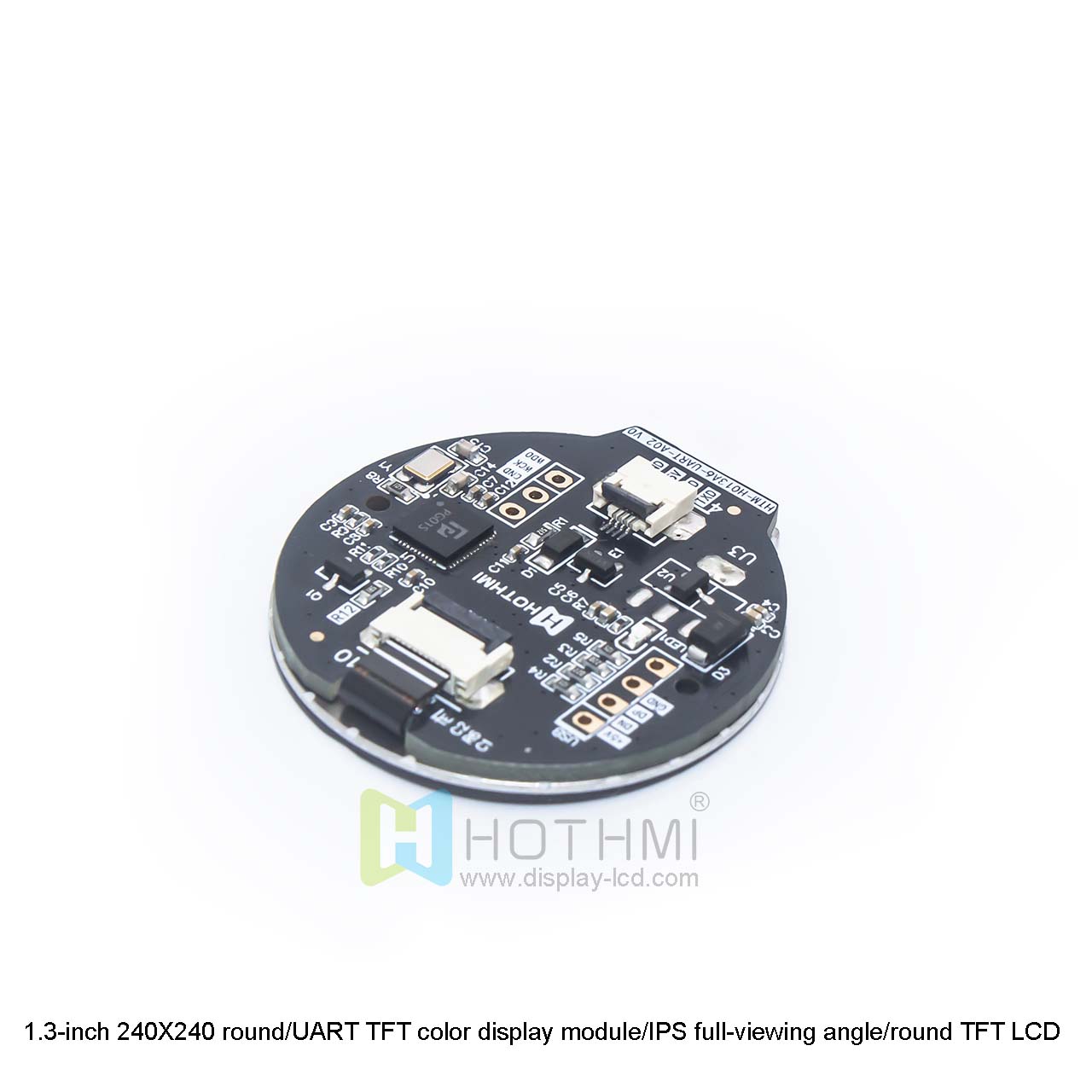

    This 1.3" Circular TFT Module | 240X240 UART Smart TFT, a small but dynamic high brightness IPS LCD display features a circular screen, a resolution of 240x240 pixels, a brightness of 300cd/m2, and comes with a driver board. This display is also powered by the GC9A01 driver IC. EMI shielding is also added on the FPC for additional protection. All of our displays are RoHS compliant and adhere to strict environmental and safety standards.


    1.3" Circular TFT Module | 240X240 UART Smart TFT comes with EzUI. E (Easy to Use), z (Zero Code), UI (User Interface). This series of modules can quickly help users develop full-color graphical touch screen human-machine interfaces, allowing users to easily design and develop color LCD modules.


    The biggest feature of the EzUI series of smart LCD display modules is its ease of use and feature-rich features. Users can choose simple or complex usage methods, achieving the goal of code-free user interface design. Users can use the interface development tool software (EzUITool) to design, edit, configure controls and set responses for the human-machine interface, and then copy the resource files generated by the tool software to the EzUIH series module to complete the required human-machine interaction interface design and production without programming the microcontroller or other controllers. To meet the needs of users with special requirements, the EzUIH series modules still retain most of the display control instructions, allowing users to control the module display more freely. EzUIH is a functional and performance enhanced version of the EzUI series. Although the hardware platform is different, it is fully compatible with the functions of the EzUI series.


    The same series of display screens related to this 1.3-inch circular TFT module include high-brightness IPS circular display screens with long lines TFT-H013A6QQIGC5N10, TFT-H013A6QQIGC7N10, and TFT-H013A6QQIGC7N10-V1 with GC9A01 as the driver chip. All our products meet ROHS quality standards.


  • HTM-H013A6-UART-A02.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    HTM-H013A6-UART-A02


    Diagonal size

    1.3

    Inch

    Resolution

    240X240 px

    Dot

    Dimensions

    35.6X37.74X6.31

    mm

    Active area (AA)

    32.4X32.4

    mm

    LCD type

    TFT LCD Display

    mm

    Display viewing angle

    Full View


    Aspect ratio

    1:1


    Backlight type

    LED white


    TFT driver IC

    GC9A01


    Brightness

    300

    cd/m2

    Operating temperature

    -20~70

    Storage temperature

    -30~80
