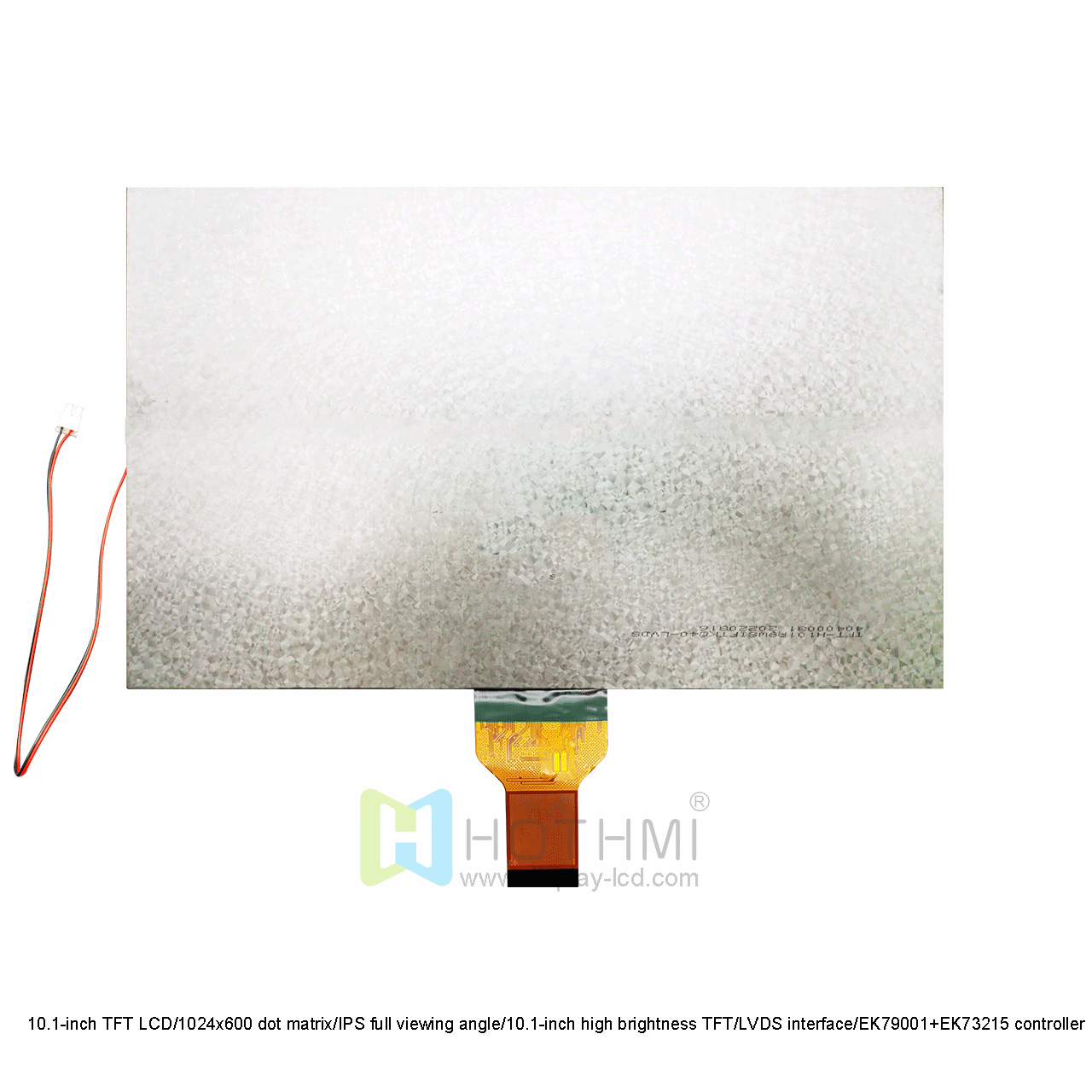

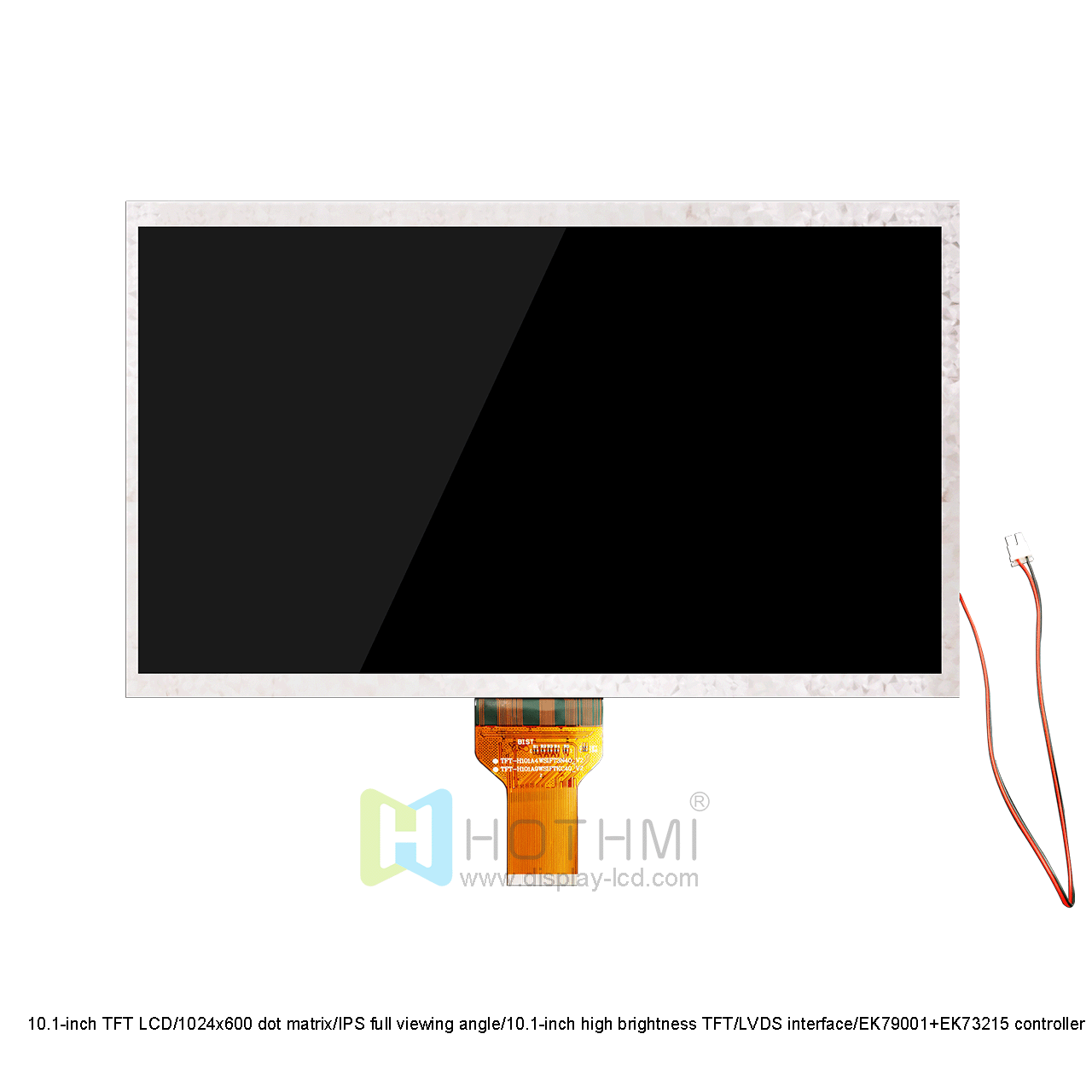

10.1-inch TFT LCD/1024x600 dot matrix/IPS full viewing angle/10.1-inch high brightness TFT/LVDS interface/EK79001+EK73215 controller

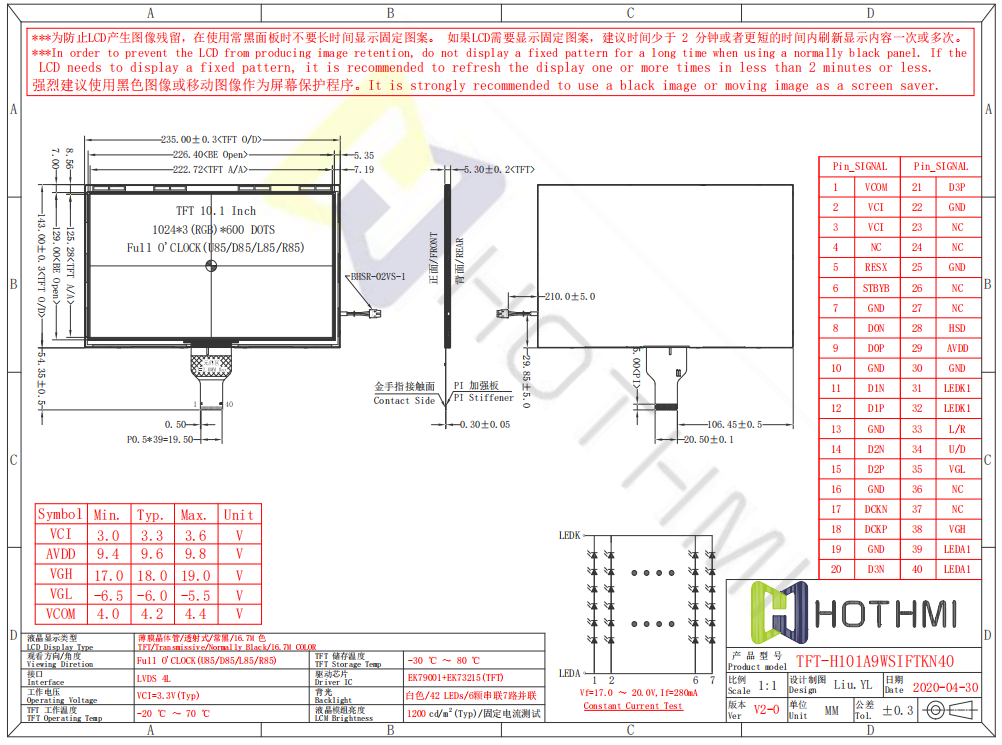

110.1-inch TFT LCD/1024x600 dot matrix/IPS full viewing angle/10.1-inch high brightness TFT/LVDS interface/EK79001+EK73215 controller, model TFT-H101A9WSIFTKN40 is a 10.1-inch IPS TFT display with a resolution of 1024x600 pixels. The display has a high contrast ratio of 800:1. It is capable of rendering deep blacks and vivid colors. This model is non-touch-capable, and it also has models with capacitive or resistive touch functions. It has an extremely high brightness of 1000cd/m2, suitable for use in indoor and outdoor environments. IPS technology allows full viewing angles. Equipped with optional resistive or capacitive touch screen functions, allowing users to interact with the display through touch. The resistive touch screen option allows precise touch input with a stylus or finger, while the capacitive touch screen option allows multi-touch input with bare fingers.
It can be used in any embedded system, consumer electronics, automotive, GPS, industrial equipment, security, and handheld devices that need to display high-quality color images. It supports RGB interface. The FPC with zif connector is easy to assemble or disassemble.
