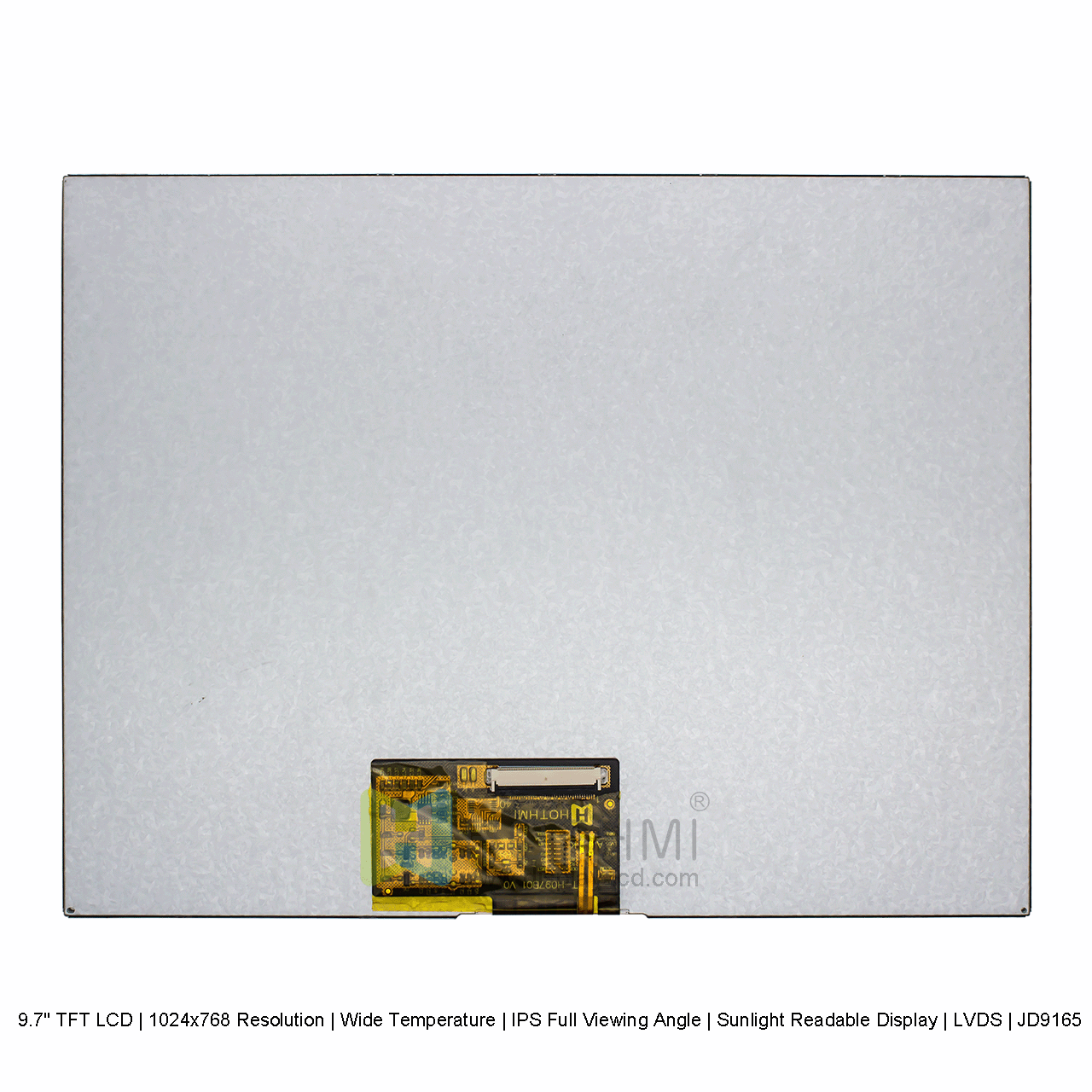

9.7" TFT LCD/1024x768 Resolution/Wide Temperature/IPS Full Viewing Angle/Sunlight Readable Display/LVDS/JD9165

9.7" TFT LCD/1024x768 Resolution/Wide Temperature/IPS Full Viewing Angle/Sunlight Readable Display/LVDS/JD9165

▶ Model: TFT-H097B01XGIJD5N40

▶ Type: 9.7-inch IPS full-view display
▶ Display content: 1024X768
▶ Display inches: 9.7"
▶ Dimensions (mm): 210.21*164.25*2.85
▶ AA size (mm): 196.61*147.46
▶ Product applications: outdoor handheld devices, aviation, consumer electronics, medical equipment, car dashboards, etc.
▶ Viewing angle: U85/D85/R85/L85
▶ Backlight type or brightness: 500cd/M2
▶ Connection method PIN number: 40pin
▶ Interface method: 1 Port LVDS 8-bit
▶ Special instructions: without touch screen
▶ Operating temperature: -20~80℃
▶ Supply voltage: +3.3 V
▶ Driver IC: JD9165

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

9.7" TFT LCD/1024x768 Resolution/Wide Temperature/IPS Full Viewing Angle/Sunlight Readable Display/LVDS/JD9165

This 9.7" TFT LCD has a resolution of 1024x768 and is equipped with a powerful backlight with a brightness of 500 cd/m2, providing visibility in bright lighting conditions, including direct sunlight. The LCD is RoHS compliant and compatible with Arduino and other similar boards. Some industries and applications include industrial, commercial, control, PLC, outdoor handheld devices, aviation, consumer electronics, medical devices, automotive dashboards, kiosks, field engineering, agriculture, outdoor sports equipment, and many more. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H097B01XGIJD5N40
Diagonal size	9.7”	Inch
Resolution	1024X768	Dot
Dimensions	210.21164.252.85	mm
Active area (AA)	196.61*147.46	mm
LCD type	Wide temperature range TFT	mm
Display viewing angle	IPS FULL VIEW ANGEL
Aspect ratio	4:3
Backlight type	LED white
driver IC	JD9165
Brightness	500	cd/m2
Operating temperature	-20~80℃	℃
Storage temperature	-30~80℃	℃
