Late June Newsletter: 4.3-inch TFT display - supports SPI/Dual SPI/Quard SPI and MCU 8-bit and 16-bit interfaces

We all know that SPI is the abbreviation of Serial Peripheral Interface, which is a synchronous serial interface technology launched by Motorola. It is a high-speed, full-duplex, synchronous communication bus.


Although the SPI interface has many advantages, it has a limitation on the size of TFT. Generally, TFTs below 4 inches can be configured with the SPI interface. Can a 4.3-inch TFT be configured with the SPI interface? If other manufacturers cannot achieve this, we can provide a perfect solution at Hot Display.


Hot Display This 4.3-inch TFT has the following unique features:

1. The application interface is simple, supporting SPI/Dual SPI/Quard SPI and MCU 8-bit and 16-bit interfaces, easy to operate.

2. The viewing direction is IPS full viewing angle.

3. Functions can be selected: three types can be selected: without touch screen, with resistive touch function, and with capacitive touch function.

4. Wide working environment temperature: the working temperature of general display screens is -20℃~+70℃, while the working temperature of this TFT is -30℃~+80℃.

5. Suitable for 8051 PIC, STM32, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms.



4.3-inch TFT, SPI interface! The only one on the Internet! The following is product information!

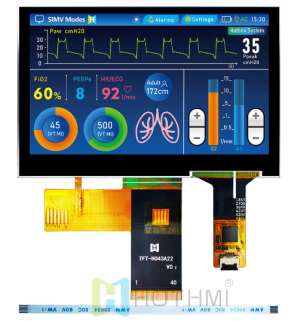

4.3 inch TFT LCD display 480x272 dots wide temperature IPS full viewing angle/sunlight readable/SPI interface/capacitive touch compatible with C8051/Arduino/STM32

▶ Type: TFT wide temperature display


▶ Display pixels: 480x272 dot matrix

▶ Dimensions (mm): 105.46x67.11x4.30

▶ Display inches: 4.3"

▶ Effective size (mm): 95.04x53.86

▶ Application: handheld remote control, smart device

▶ Viewing angle: IPS (U80/D80/L80/R80)

▶ Brightness: 850cd/m2

▶ Pin: FPC-40PIN

▶ Interface: SPI/Dual SPI/QSPI or MCU 8/16Bit

▶ Special reminder: Anti-static ESD 8KV

▶ Operating temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: TBD

▶ Read more




                    1719991432797.png      1719991516163.png



For more excellent products, please contact us directly!
